Attributes
| Gtin | 5702422024682 |
|---|
Description
Inlet connection type: Flare, Outlet connection type: Flare, Direction: Straightway, Packing format: Multi pack
Specifications
| Quantity | Units of measure |
|---|---|
| Gross weight | 0.086 Kilogram |
| Net weight | 0.08 Kilogram |
| Volume | 0.103 Liter |
| EAN | 5702422024682 |
| Type | NRV 10 |
| Product group | Check valves |

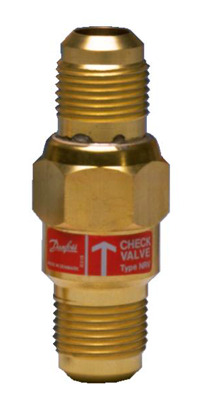

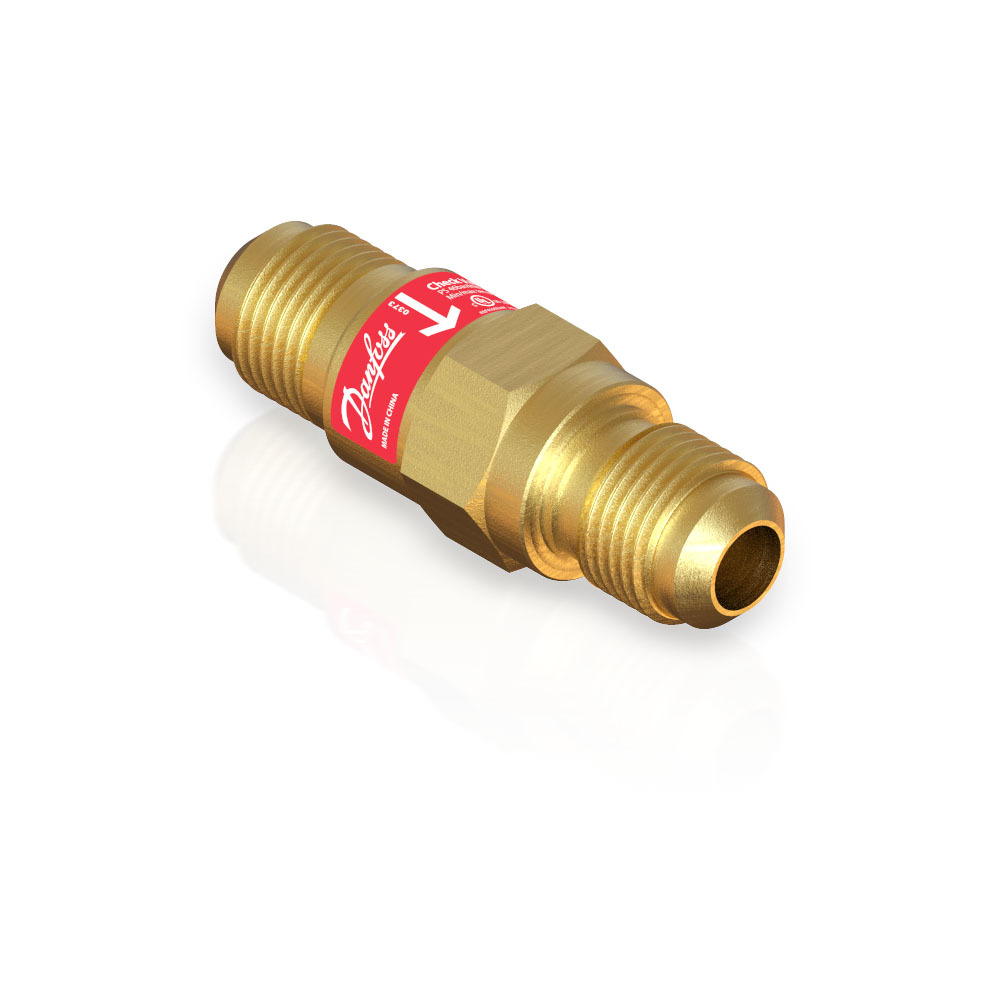

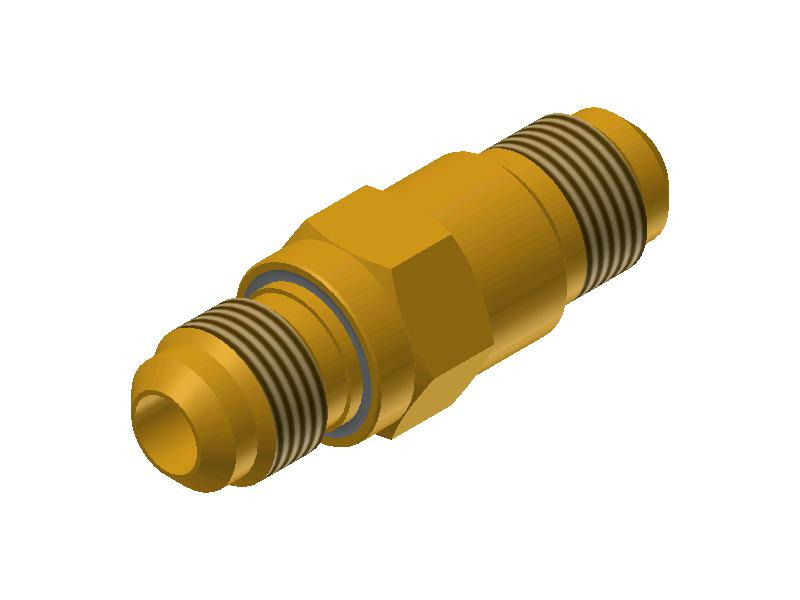

| Product Name Description | Check Valve |
| Approval | C UL US LISTEDEAC |
| Body material | Brass |
| Category | Art. 4, par. 3 |
| China RoHS compliance | Yes with exemptions |
| Connection material | Brass |
| Connection notes | Without flare nut |
| Contains batteries | No |
| Cv value [gal/min] | 1.39 gal/min |
| Design | Piston |
| Direction | Straightway |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow direction | Single-flow |
| Flow direction indicator | On product label |
| Fluid Group | 12 |
| Inlet connection type | Flare |
| Inlet size [in] | 3/8 in |
| Inlet size [mm] | 10 mm |
| Kv value [m³/h] | 1.2 m³/h |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| Min. Pressure drop [bar] | 0.07 bar |
| Min. Pressure drop [psi] | 1 psi |
| Oil free refrigerants | R1234ze(E)R134aR513AR515BR516A |
| Outlet connection type | Flare |
| Outlet size [in] | 3/8 in |
| Outlet size [mm] | 10 mm |
| Packing format | Multi pack |
| Quantity per packing format | 25 pc |
| Rated cap cond, Hot gas [IMP] | tcond=86 °Ftdisc=176 °Ftevap=14 °Fthotgas=140 °Ftsub=9 °F |
| Rated cap cond, Hot gas [SI] | tcond=30 °Ctdisc=80 °Ctevap=-10 °Cthotgas=60 °Ctsub=5K |
| Rated cap cond, Liq. cap [IMP] | tcond=86 °Ftevap=14 °Ftsub=9 °F |
| Rated cap cond, Liq. cap [SI] | tcond=30 °Ctevap=-10 °Ctsub=5K |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R1233zd(E)R1234yfR1234ze(E)R134aR22/R407CR32R404A/R507AR407AR407FR407HR410AR448AR449AR449BR450AR452AR452BR454AR454BR454CR455AR513AR515BR516ARead more |
| SCIP dossier no. | c32c5c1f-0a2b-4618-9450-b5a1d4d291dd |
| SCIP dossier product name | NRV V1 Flare |
| Temperature range [°C] [Max] | 140 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 285 °F |
| Temperature range [°F] [Min] | -58 °F |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| UL approved refrigerants | R1233zd(E)R1234yfR1234ze(E)R134aR22R32R404AR407AR407CR407FR407HR410AR448AR449AR449BR450AR452AR452BR454AR454BR454CR455AR507AR513AR515BR516ARead more |
| UL evaluated | Yes |
| Proposition 65 | WARNING: Cancer and Reproductive Harmwww.p65warnings.ca.gov |
