Attributes
| Gtin | 5702423203369 |
|---|
Description
Connection type: G, Connection size [in]: 3/8, Cv value [gal/min]: 1.6, Opening configuration: Opens on rising cond. pressure, Control pressure range [bar]: 3.5 - 16, Connection type (refrigerant): SAE flare
Specifications
| Quantity | Units of measure |
|---|---|
| Gross weight | 1.18 Kilogram |
| Net weight | 0.98 Kilogram |
| Volume | 3.68 Liter |
| EAN | 5702423203369 |
| Type | WVFX 10 |
| Product group | Water regulating valves |

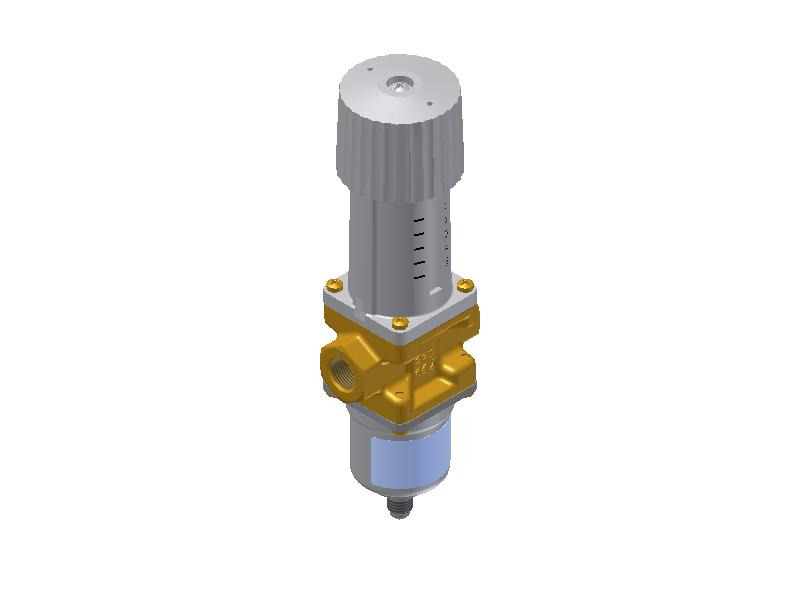

| Product Name Description | Pressure operated water valve |
| Approval | C UL US LISTEDEACLLC CDC TYSKPEDRoHSRoHS China |
| Approval file name | REFRIGERANT VALVE 53R0 |
| Body material | Brass |
| China RoHS compliance | Yes |
| Connection Internal/External | Internal |
| Connection size (refrigerant) | 1/4 in - 6 mm |
| Connection size [in] | 3/8 |
| Connection standard | ISO 228-1 |
| Connection type | G |
| Connection type (refrigerant) | SAE flare |
| Contains batteries | No |
| Control pressure range [bar] [Max] | 16 bar |
| Control pressure range [bar] [Min] | 3.5 bar |
| Cv value [gal/min] | 1.6 gal/min |
| Differential pressure [bar] | 10 bar |
| Differential pressure [psi] | 145 psi |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(b)6(c) |
| Identical product | 003N1100 |
| Kv value [m³/h] | 1.4 m³/h |
| Lubricants compatibility | Oilfree applications |
| Max. test pressure [bar] Pe | 24 bar |
| Max. test pressure [psig] | 348 psig |
| Max. Working Pressure [bar] | 16 bar |
| Max. Working Pressure [psig] | 232 psig |
| Max.test press.(refrig.)[bar] | 60 bar |
| Max.test press.(refrig.)[psig] | 870.2 psig |
| Media | Fresh waterNeutral brine |
| Medium temperature range [°C] [Max] | 130 °C |
| Medium temperature range [°C] [Min] | -25 °C |
| Medium temperature range [°F] [Max] | 266 °F |
| Medium temperature range [°F] [Min] | -13 °F |
| MWP (refrigerant) [bar] | 26.4 bar |
| Oil free refrigerants | R513A |
| Opening configuration | Opens on rising cond. pressure |
| Orifice size [mm] | 10 mm |
| Orifice size fraction [in] | 2/5 in |
| Packing format | Industrial pack |
| Product accessories | Generic accessoriesWater valves accessories |
| Quantity per packing format | 25 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R1234yfR134aR22R404AR407AR407CR407FR407HR422BR422DR448AR449AR449BR450AR452AR454AR454CR455AR507AR513AR515BR516ARead more |
| SCIP dossier no. | fc3470cc-5810-44ef-89ac-d393613841da |
| SCIP dossier product name | WV Valves |
| Serviceable | Water valve spare parts |
| UL approved refrigerants | R134aR22R404AR407AR407CR407FR407HR422BR422DR448AR449AR449BR450AR452AR507AR513AR515BR516ARead more |
| UL evaluated | Yes |
| Proposition 65 | WARNING: Cancer and Reproductive Harmwww.p65warnings.ca.gov |
