Attributes
| Gtin | 5702423203390 |
|---|
Description
Body material: Brass, Opening configuration: Opens on rising sensor temp., Charge type: Universal
Specifications
| Quantity | Units of measure |
|---|---|
| Gross weight | 1.652 Kilogram |
| Net weight | 1.352 Kilogram |
| Volume | 4.082 Liter |
| EAN | 5702423203390 |
| Type | AVTA 15 |
| Product group | Water regulating valves |

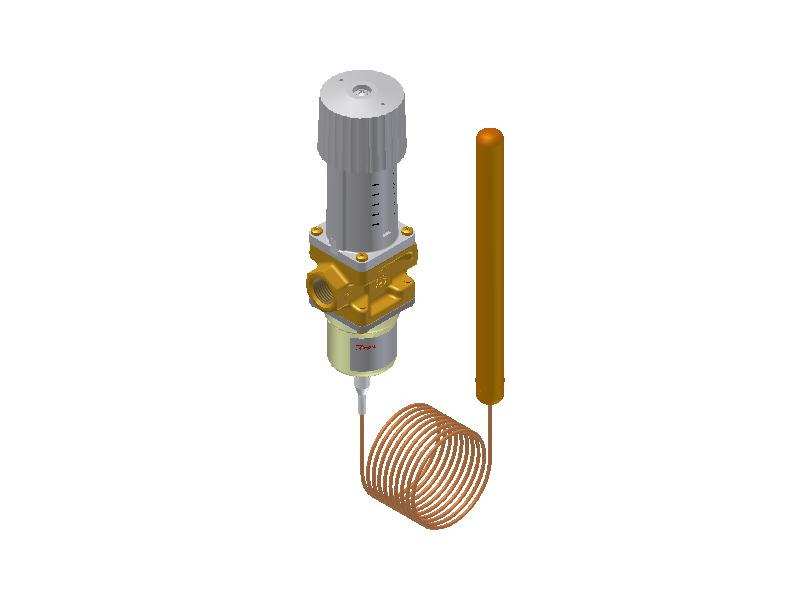

| Product Name Description | Thermo. operated water valve |
| Approval | EACLLC CDC TYSKPEDRoHSRoHS China |
| Body material | Brass |
| Cap. tube length fraction [in] | 78 3/4 in |
| Capillary tube gland Int/Ext | Internal |
| Capillary tube gland size [in] | 3/4-14 |
| Capillary tube gland standard | ANSI/ASME B1.20.1 |
| Capillary tube gland type | NPT |
| Capillary tube length [mm] | 2000 mm |
| Charge type | Universal |
| China RoHS compliance | Yes |
| Connection Internal/External | Internal |
| Connection size [in] | 1/2-14 |
| Connection standard | ANSI/ASME B1.20.1 |
| Connection type | NPT |
| Contains batteries | No |
| Cv value [gal/min] | 2.2 gal/min |
| Differential pressure [bar] [max] | 10 bar |
| Differential pressure [bar] [Min] | 0 bar |
| Differential pressure [psi] [Max] | 145 psi |
| Differential pressure [psi] [Min] | 0 psi |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(b)6(c) |
| Flow direction indicator | Embossed 1-way arrow |
| Kv value [m³/h] | 1.9 m³/h |
| Max. pressure on sensor [bar] | 25 bar |
| Max. pressure on sensor [psig] | 362.6 psig |
| Max. sensor temperature [°C] | 90 °C |
| Max. sensor temperature [°F] | 194 °F |
| Max. test pressure [bar] Pe | 25 bar |
| Max. test pressure [psig] | 362.6 psig |
| Max. Working Pressure [bar] | 16 bar |
| Max. Working Pressure [psig] | 232 psig |
| Media | Neutral media |
| Medium temperature range [°C] [Max] | 130 °C |
| Medium temperature range [°C] [Min] | -25 °C |
| Medium temperature range [°F] [Max] | 266 °F |
| Medium temperature range [°F] [Min] | -13 °F |
| Opening configuration | Opens on rising sensor temp. |
| Orifice size [mm] | 15 mm |
| Orifice size fraction [in] | 3/5 in |
| Packing format | Multi pack |
| Product accessories | Generic accessoriesWater valves accessories |
| Quantity per packing format | 10 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | a698bb81-6c39-4d14-a29f-0fc686728af9 |
| SCIP dossier product name | AVTA FJVA |
| Sensor size (Ø x L) [in] | 23/32 x 8 1/4 in |

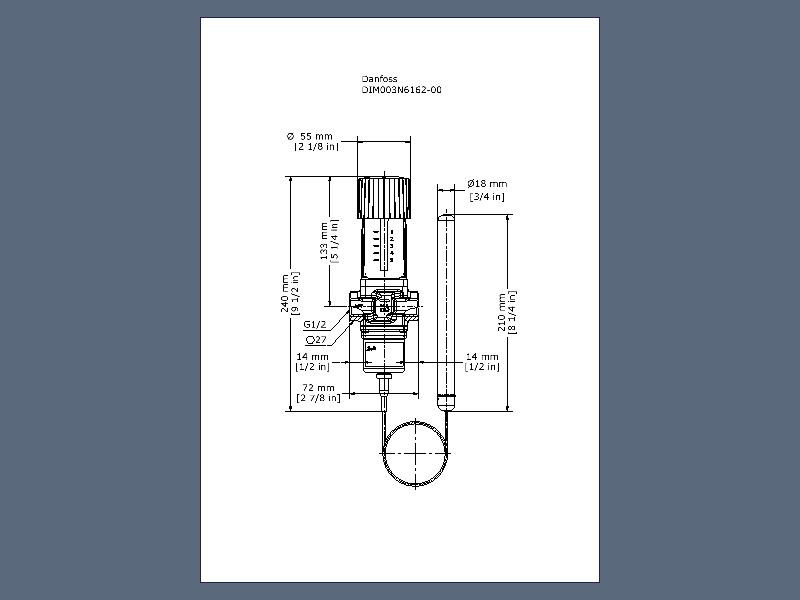

| Sensor size (Ø x L) [mm] | 18 x 210 mm |
| Serviceable | Water valve spare parts |
| Temperature range [°C] [Max] | 65 °C |
| Temperature range [°C] [Min] | 25 °C |
| Temperature range [°F] [Max] | 149 °F |
| Temperature range [°F] [Min] | 77 °F |
| Proposition 65 | WARNING: Cancer and Reproductive Harmwww.p65warnings.ca.gov |
| Visuals | Document Category |
| Product type | Accessory, Mounting bracket, Used for product: WVFX; AVTA, Packing format: Multi pack, Quantity per packing format: 125 |
