Attributes
| Gtin | 5702425120121 |
|---|
Description

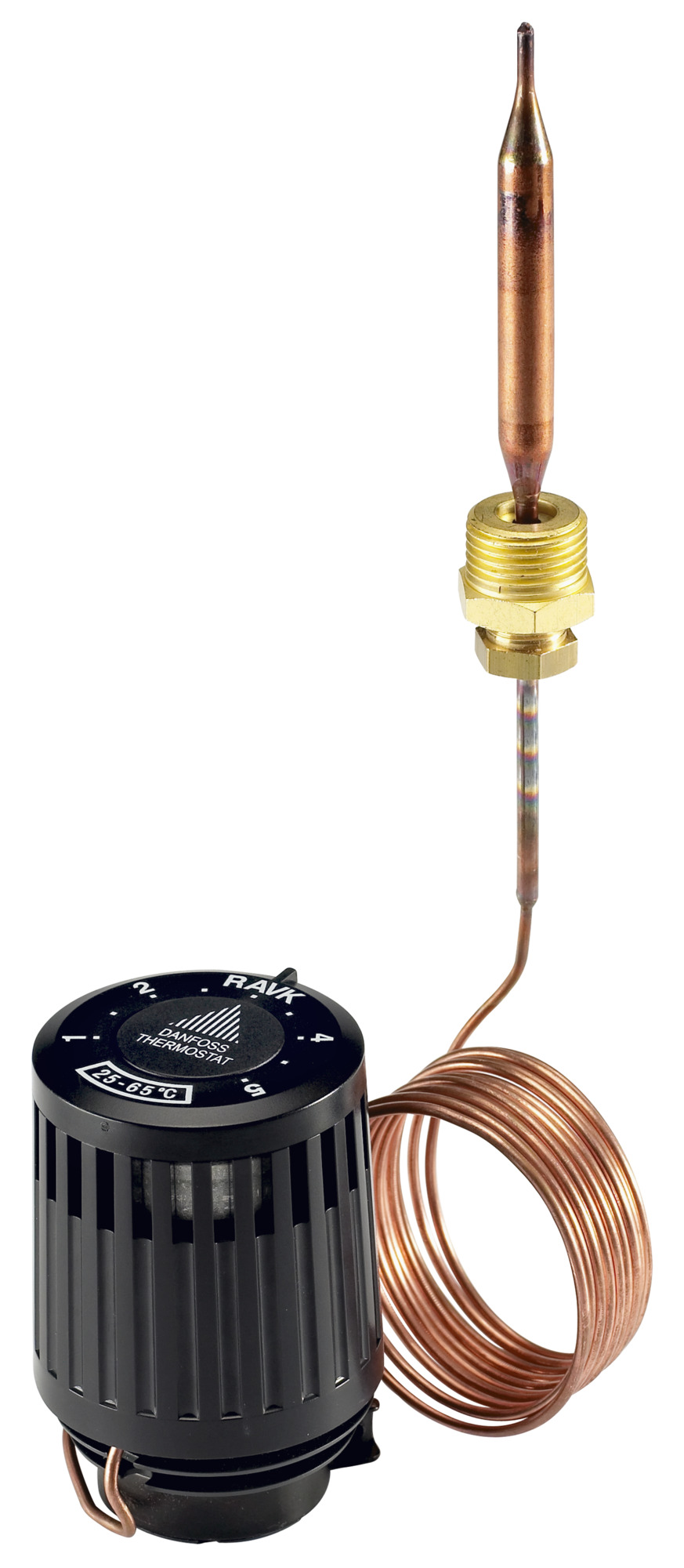

RAVK, 10 °C - 30 °C, 2 m 003L3530
Specifications
| Quantity | Units of measure |
|---|---|
| Gross weight | 0.404 Kilogram |
| Net weight | 0.398 Kilogram |
| Volume | 1.363 Liter |
| EAN | 5702425120121 |
| Type | RAVK |
| Product group | Actuators - Temperature |
| Ambient temperature [°C] [Max] | 70 °C |
| Ambient temperature [°C] [Min] | 0 °C |
| Capillary tube length [m] | 2 m |
| China RoHS compliance | Out of scope |
| Contains batteries | No |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Function | Temp. controller |
| Impulse tube material | Copper mat. No 2.0090 |
| Media temperature at sensor [°C] [Max] | 120 °C |
| Mounting version | Free |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Sensor connection | M14x1 / R1/2 ext thread acc. DIN 2999 |
| Temperature sensor diameter [mm] | 9.5 mm |
| Temperature sensor length [mm] | 82 mm |
| Temperature setting range [°C] [Max] | 30 °C |
| Temperature setting range [°C] [Min] | 10 °C |
| Transport temperature [°C] [Max] | 50 °C |
| Transport temperature [°C] [Min] | -20 °C |
| Proposition 65 | WARNING: Cancer and Reproductive Harmwww.p65warnings.ca.gov |
