Attributes
| Gtin | 5702428127158 |
|---|
Description
Connection material: Copper, Connection Solder size [mm]: 42
Specifications
| Quantity | Units of measure |
|---|---|
| Gross weight | 8.5 Kilogram |
| Net weight | 7.812 Kilogram |
| Volume | 22.591 Liter |
| EAN | 5702428127158 |
| Type | DCR |
| Product group | Filter driers |

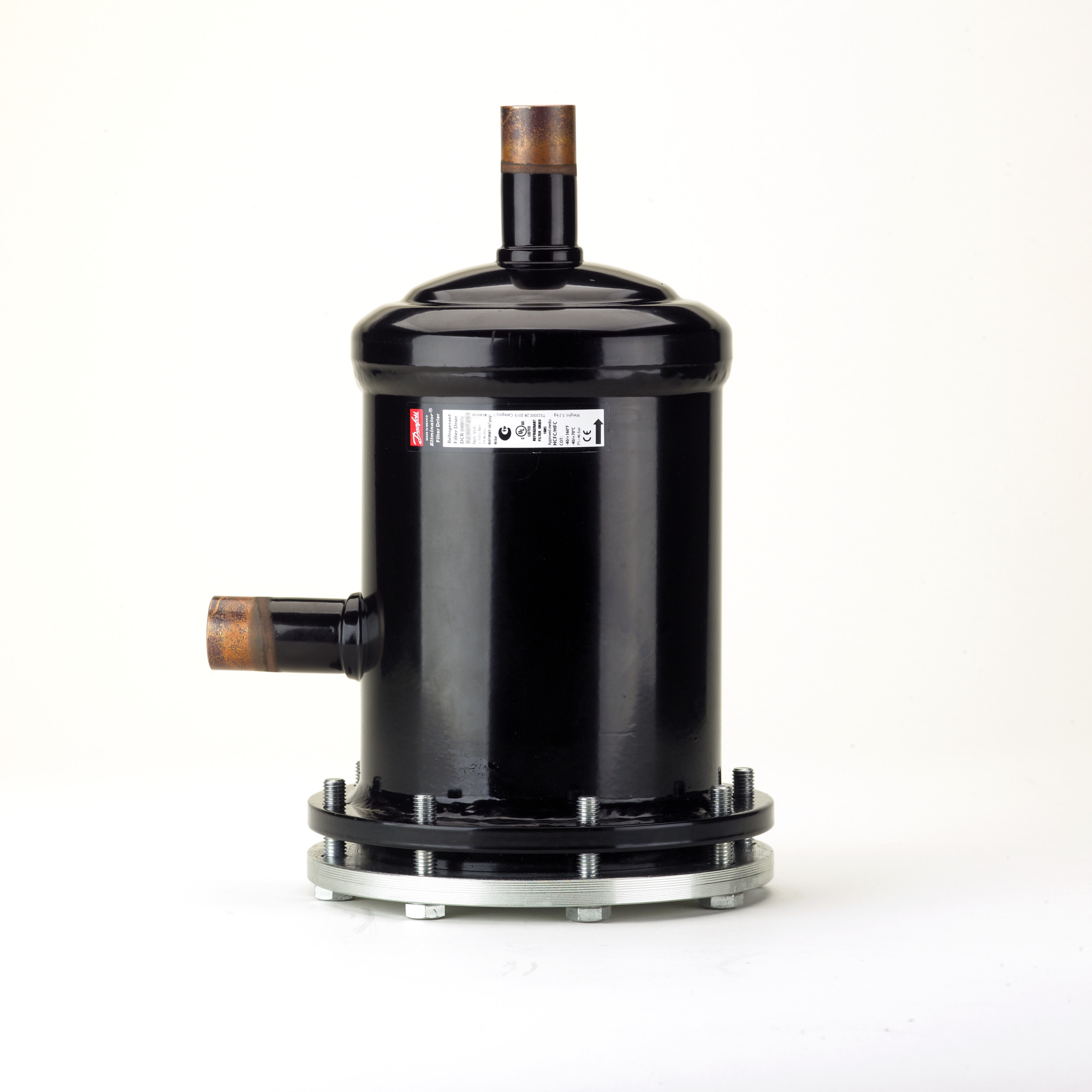

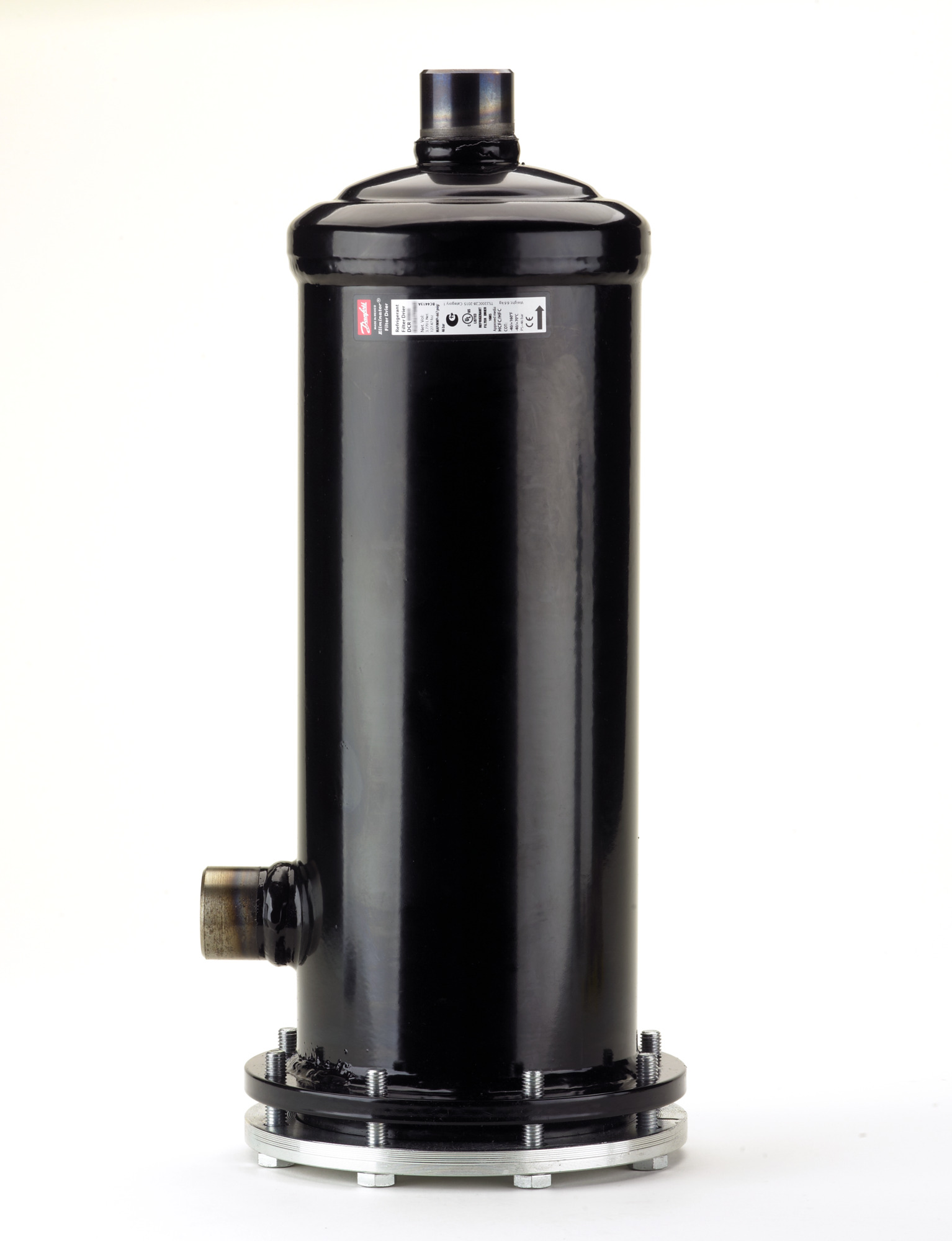

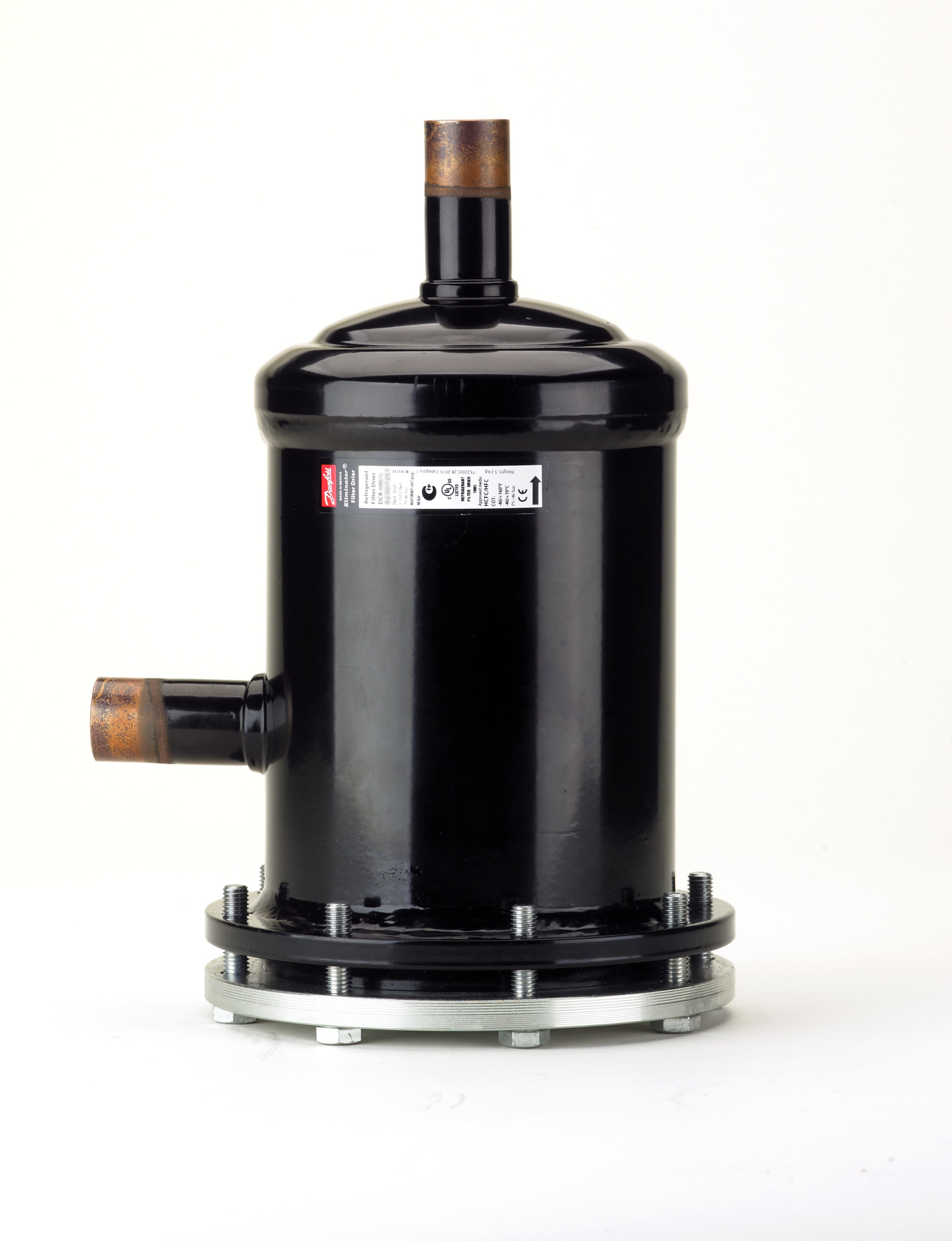

| Product Name Description | Filter drier, shell |
| Approval | CECSAUL |
| Body material | Steel |
| Braket | No |
| Brand | ELIMINATOR |
| Category | I |
| CE evaluated | Yes |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Connection material | Copper |
| Connection Solder size [mm] | 42 mm |
| Connection type | Solder, ODF |
| Contains batteries | No |
| Core Size code | 144 cu.in. |
| Cover | Plug |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Flow direction indicator | Label printed 1-way arrow |
| Fluid Group | 2 |
| Liq Cap [Kw] | R1234ze: 316.0R134a: 355.9R404A: 250.3R407C: 364.7R410A: 370.3R452A: 253.5R507: 242.8 |
| Liq Cap [TR] | R1234ze: 89.8R134a: 101.2R404A: 71.2R407C: 103.7R410A: 105.3R452A: 72.1R507: 69.0 |
| LiqCap Cond (ARI 710-2009)[SI] | Delta p=0.07bartliq= 30°Ctvap=-15°C |
| LiqCapCond (ARI 710-2009)[IMP] | DELTA P=1PSItliq= 86°Ftvap=5°F |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| MWP comments | 35_bar/508_psig_as_receiver35_bar/508_psig_with_48-F |
| Net volume [foz US] | 120.96 Fluid Ounce US |
| Net volume [l] | 3.577 L |
| Number of cores | 3 |
| Oil free refrigerants | R134aR513AR515A |
| Packing format | Single pack |
| Parts included | 1 cov6 felt gaskets8 Bolts |
| Parts Program name | DCR |
| Product accessories | DCR accessories |
| Product description | Refrigerant Filter Drier |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R1234ze(E)R125R134aR22/R407CR23R404AR407AR407FR410AR438AR448AR449AR449BR450AR452AR507AR513ARead more |
| Serviceable | DCR spare parts |
| Shell volume [foz US] | 164.29 Fluid Ounce US |
| Shell volume [l] | 4.85 L |
| Temperature range [°C] [Max] | 70 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 160 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type designation | DCR 14413s |
| UL approval file name | SA6398 |
| UL approved refrigerants | R125R134aR22R23R404AR407AR407CR407FR410AR438AR448AR449AR449BR450AR452AR507AR513ARead more |
| UL evaluated | Yes |
| Proposition 65 | WARNING: Cancer and Reproductive Harmwww.p65warnings.ca.gov |
| Visuals | Document Category |
