Attributes
| Gtin | 5702428249775 |
|---|
Description
Connection material: Copper
Specifications
| Quantity | Units of measure |
|---|---|
| Gross weight | 5.777 Kilogram |
| Net weight | 4.737 Kilogram |
| Volume | 12.529 Liter |
| EAN | 5702428249775 |
| Type | DCR |
| Product group | Filter driers |

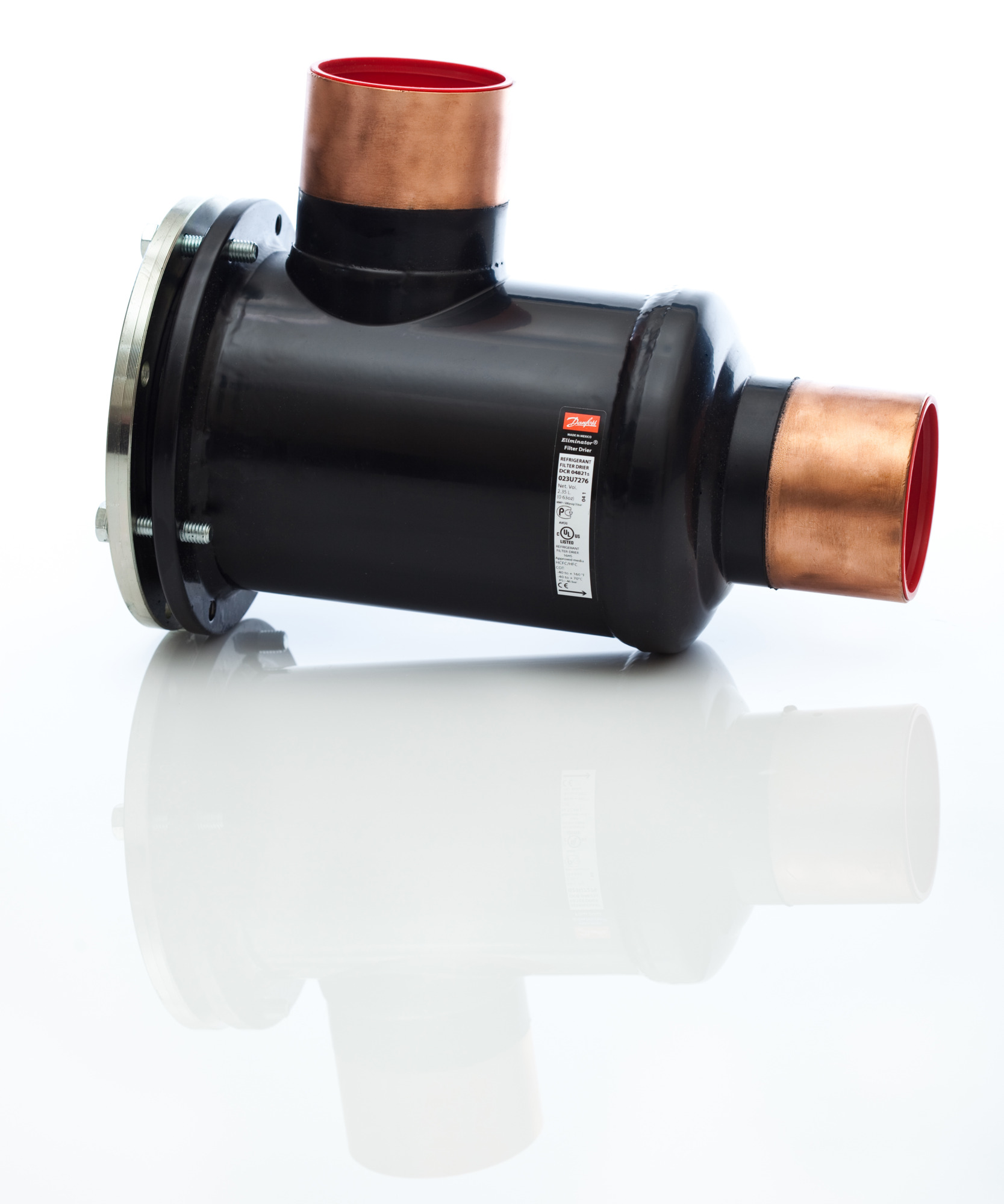

| Product Name Description | Filter drier, shell |
| Approval | CECSAUL |
| Body material | Steel |
| Braket | No |
| Brand | ELIMINATOR |
| Category | I |
| CE evaluated | Yes |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Connection material | Copper |
| Connection Solder size [in] | 2 5/8 in |
| Connection type | Solder, ODF |
| Contains batteries | No |
| Core Size code | 48 cu.in. |
| Cover | Plug |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Flow direction indicator | Label printed 1-way arrow |
| Fluid Group | 2 |
| Liq Cap [Kw] | R1234ze: 226.4R134a: 255.0R404A: 179.3R407C: 261.3R410A: 265.4R452A: 181.6R507: 174.0 |
| Liq Cap [TR] | R1234ze: 64.4R134a: 72.5R404A: 51.0R407C: 74.3R410A: 75.5R452A: 51.6R507: 49.5 |
| LiqCap Cond (ARI 710-2009)[SI] | Delta p=0.07bartliq= 30°Ctvap=-15°C |
| LiqCapCond (ARI 710-2009)[IMP] | DELTA P=1PSItliq= 86°Ftvap=5°F |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| Net volume [foz US] | 50.44 Fluid Ounce US |
| Net volume [l] | 1.492 L |
| Number of cores | 1 |
| Oil free refrigerants | R134aR513AR515A |
| Packing format | Single pack |
| Parts included | 1 cov2 felt gaskets8 Bolts |
| Parts Program name | DCR |
| Product accessories | DCR accessories |
| Product description | Refrigerant Filter Drier |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R1234ze(E)R125R134aR22/R407CR23R404AR407AR407FR410AR438AR448AR449AR449BR450AR452AR507AR513ARead more |
| Serviceable | DCR spare parts |
| Shell volume [foz US] | 65.76 Fluid Ounce US |
| Shell volume [l] | 1.94 L |
| Temperature range [°C] [Max] | 70 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 160 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type designation | DCR 04821s |
| UL approval file name | SA6398 |
| UL approved refrigerants | R125R134aR22R23R404AR407AR407CR407FR410AR438AR448AR449AR449BR450AR452AR507AR513ARead more |
| UL evaluated | Yes |
| Proposition 65 | WARNING: Cancer and Reproductive Harmwww.p65warnings.ca.gov |
| Visuals | Document Category |
