Attributes
| Gtin | 5702420017990 |
|---|
Description

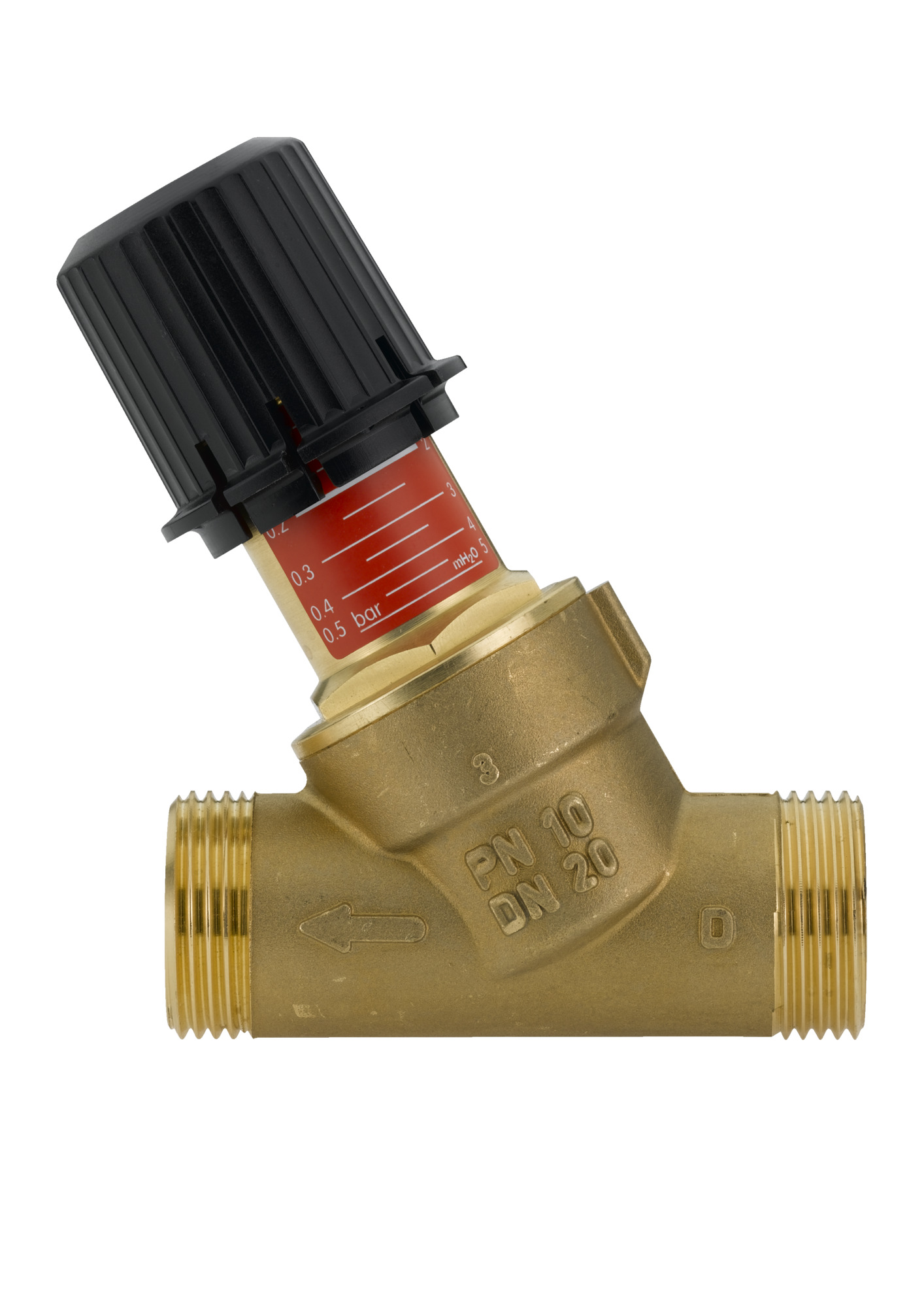

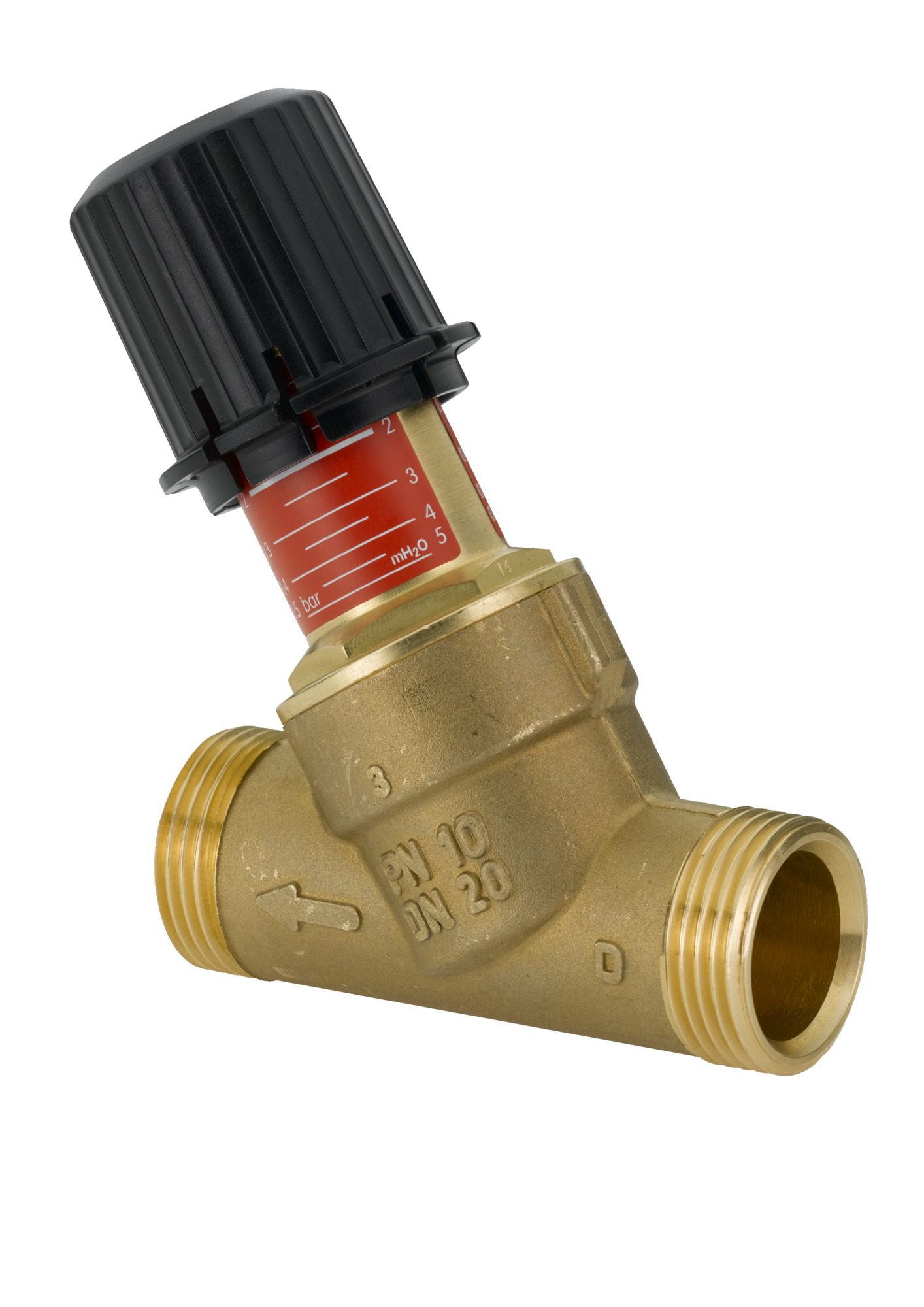

Self-acting constant flow valve
Specifications
| Quantity | Units of measure |
|---|---|
| Gross weight | 0.712 Kilogram |
| Net weight | 0.684 Kilogram |
| Volume | 1.11 Liter |
| EAN | 5702420017990 |
| Type | AVDO |
| Product group | Automatic Bypass Control |
| CE evaluated | No |
| China RoHS compliance | Out of scope |
| Connection size in | G 1 A |
| Connection size out | G 1 A |
| Connection types | Threaded |
| Connections | 3/4" |
| Contains batteries | No |
| Description | Self-acting constant flow valve |
| Design | Straight |
| Differential pressure range [bar] [Max] | 0.5 bar |
| Flow temperature [°C] [Max] | 120 °C |
| Inlet connection type | External thread |
| Outlet connection type | External thread |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 8d736b0d-4ef5-4b75-a470-3b3ad31b8da6 |
| SCIP dossier product name | AVDO COMMERCIAL 20 |
| Setting [bar] [Max] | 0.5 bar |
| Setting [bar] [Min] | 0.05 bar |
| UL evaluated | No |
| Valve size | DN 20 |
| Working pressure [bar] [Max] | 10 bar |
| Proposition 65 | WARNING: Cancer and Reproductive Harmwww.p65warnings.ca.gov |
| Visuals | Document Category |
