Attributes
| Gtin | 5702421551387 |
|---|
Description

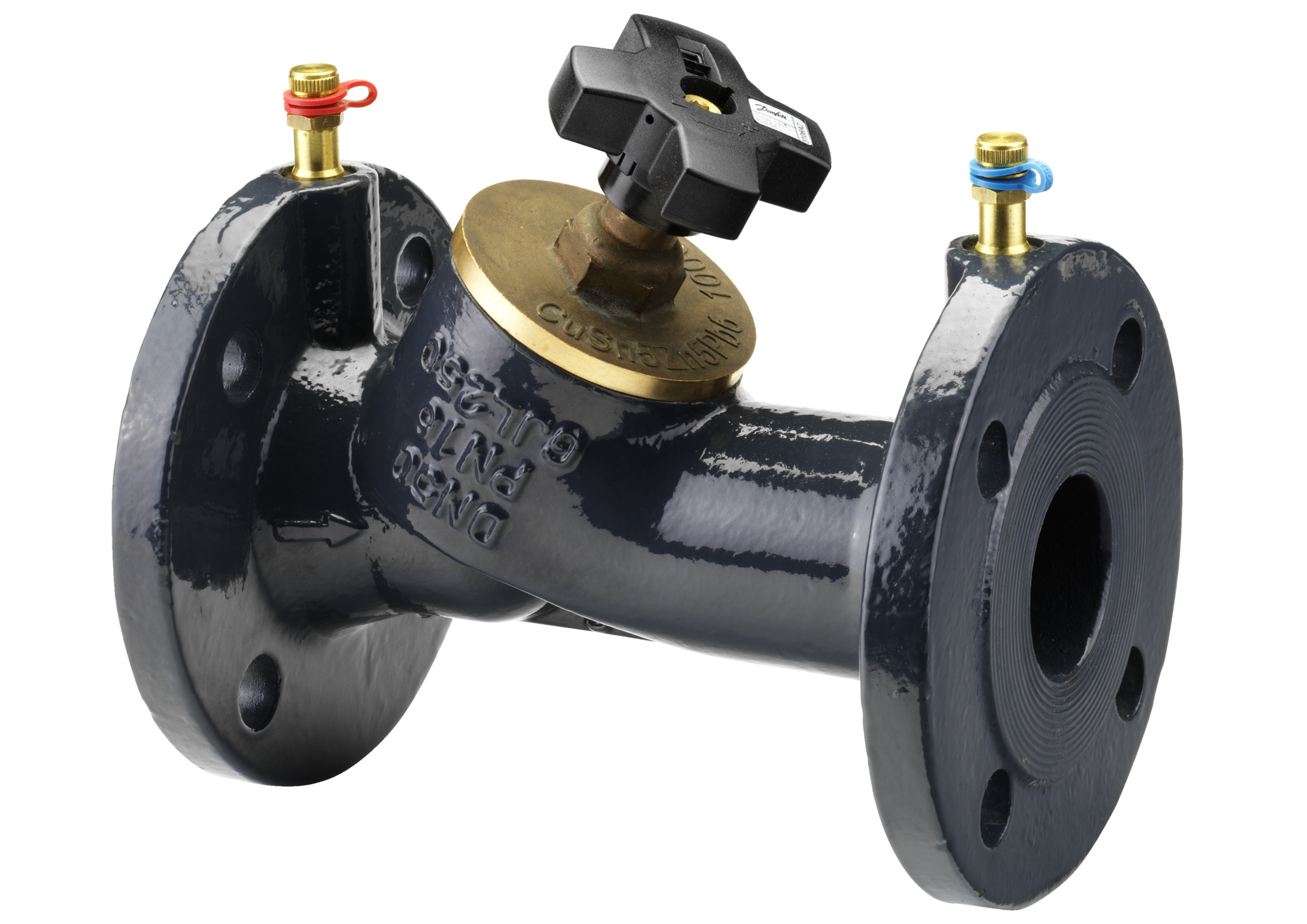

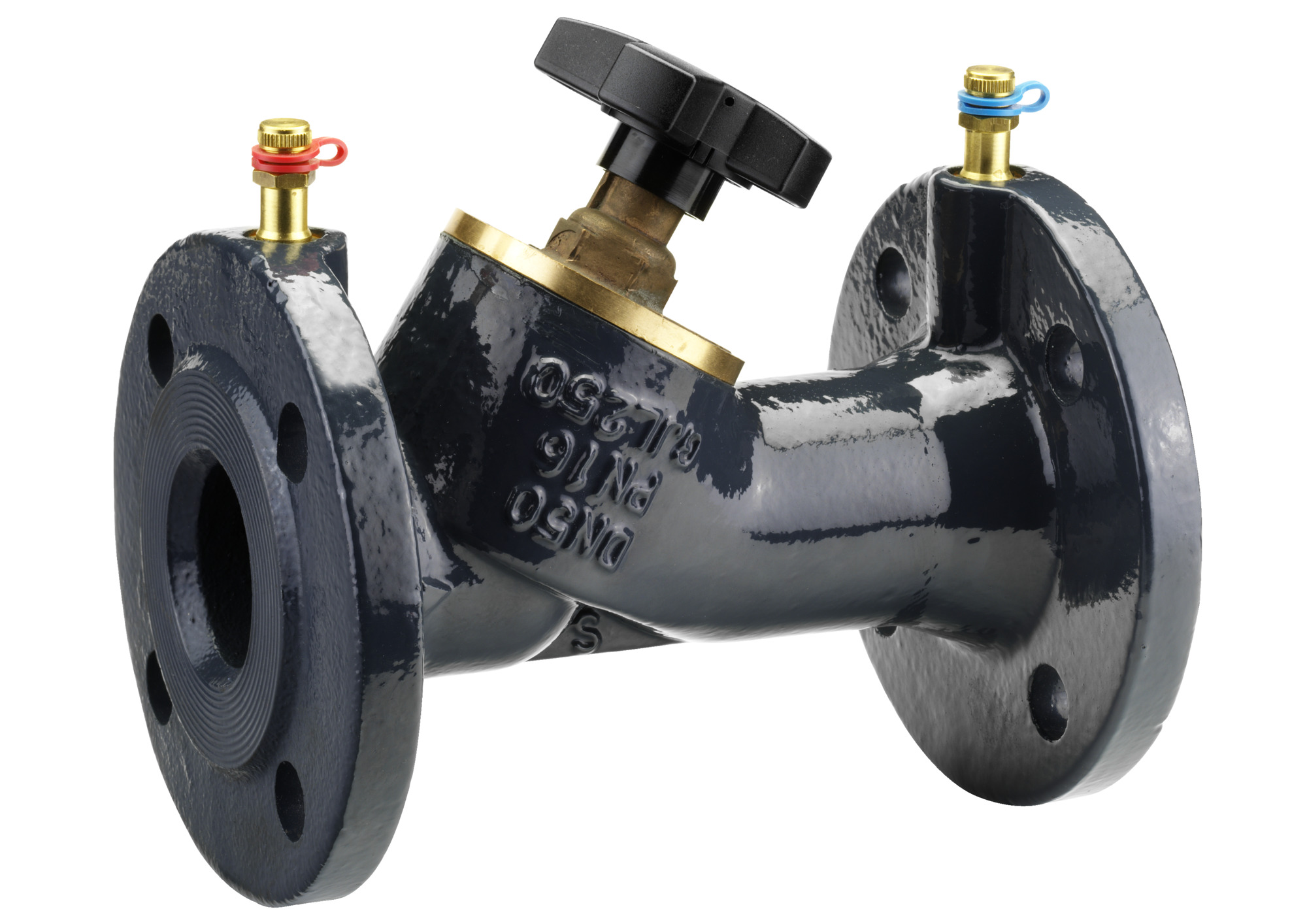

MSV-F2 DN 50 with test plugs, PN16, manual balancing valve
Specifications
| Quantity | Units of measure |
|---|---|
| Gross weight | 9.46 Kilogram |
| Net weight | 8.7 Kilogram |
| Volume | 15.797 Liter |
| EAN | 5702421551387 |
| Type | MSV-F2 |
| Product group | Manual balancing |
| China RoHS compliance | Out of scope |
| Connection types | Flange |
| Contains batteries | No |
| Description | MSV-F2 DN 50 with test plugs, PN16, manual balancing valve |
| Differential pressure over the valve [kPa] [Max] | 150 KPa |
| Drain function | No |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Kvs values [m³/h] | 53.8 m³/h |
| Media temperature [°C] [Max] | 130 °C |
| Media temperature [°C] [Min] | -10 °C |
| Pressure class | PN 16 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | b53622cd-50a2-4626-a23a-856f12c6983e |
| SCIP dossier product name | MSV-F2 MNF DN15-300 |
| Setting scale | Yes |
| Shut-off function | Yes |
| Test plugs | With test plugs |
| Valve body material | Cast iron (EN-GJL-250) |
| Valve size | DN 50 |
| Proposition 65 | WARNING: Cancer and Reproductive Harmwww.p65warnings.ca.gov |
| Visuals | Document Category |
