Attributes
| Gtin | 5710104066363 |
|---|
Description

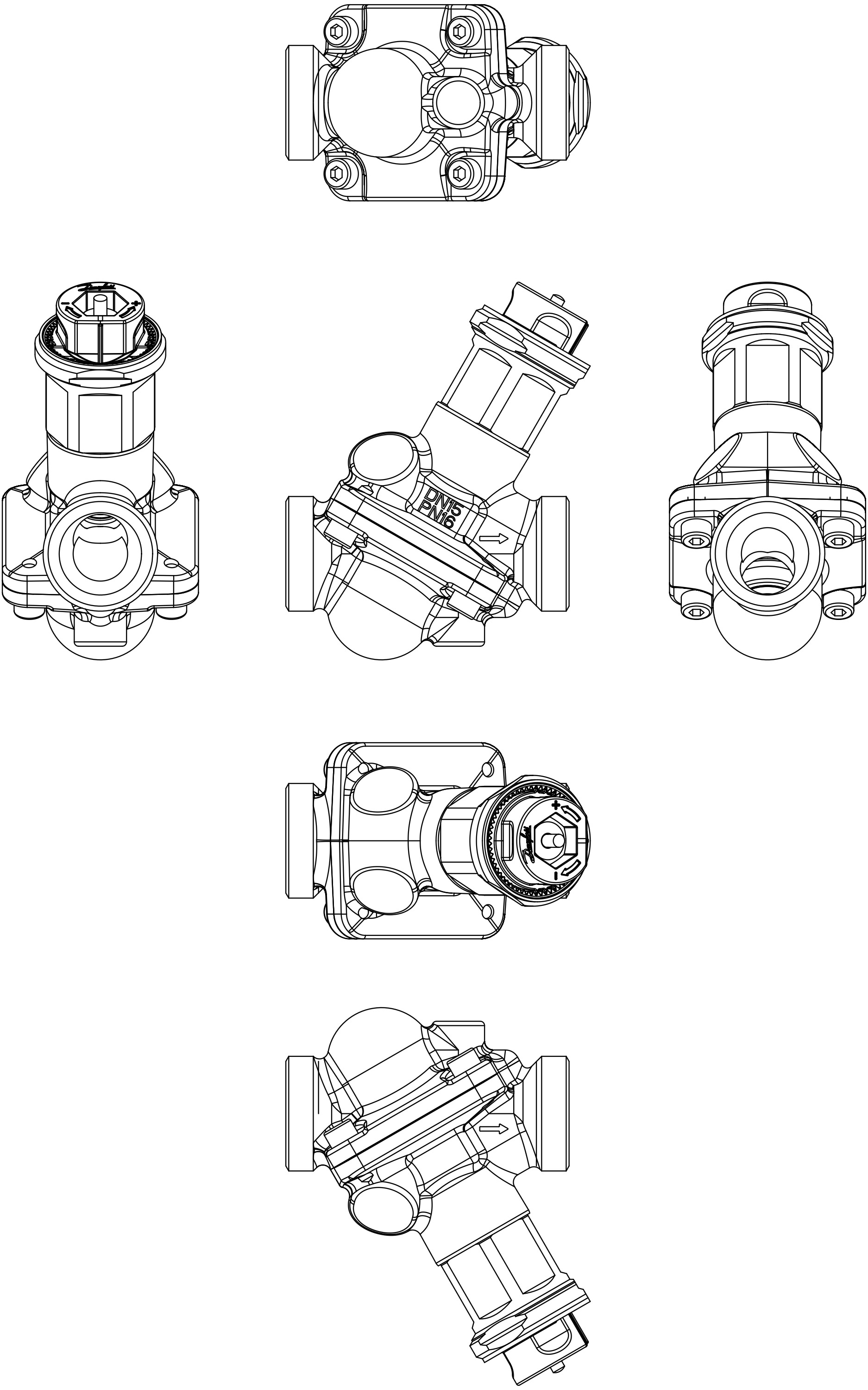

AB-QM ½" Low flow, without test plugs, pressure independent balancing and control valve
Specifications
| Quantity | Units of measure |
|---|---|
| Gross weight | 0.48 Kilogram |
| Net weight | 0.47 Kilogram |
| Volume | 0.912 Liter |
| EAN | 5710104066363 |
| Type | AB-QM ANSI |
| Product group | Pressure independent balancing and control valves |
| Actuator connection | M30 x 1.5 |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.3 |
| Connection types | External thread NPT |
| Contains batteries | No |
| Description | AB-QM ½" Low flow, without test plugs, pressure independent balancing and control valve |
| Differential pressure range [psi] [Max] | 60 psi |
| Differential pressure range [psi] [Min] | 2 psi |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow [gpm] [Max] | 1.2 gal/min |
| Flow nominal [m³/h] | 0 m³/h |
| Media temperature [°F] [Max] | 250 °F |
| Media temperature [°F] [Min] | 15 °F |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 4308eb33-f8bb-4ce9-85ed-0fa526a763b3 |
| SCIP dossier product name | AB-QM 1/2" LF without test plugs |
| Static pressure [psi] [Max] | 300 psi |
| Stroke [mm] | 2.25 mm |
| Test plugs | Without test plugs |
| Valve body material | CW 617N |
| Valve size | ½"Low flow |
| Proposition 65 | WARNING: Cancer and Reproductive Harmwww.p65warnings.ca.gov |
