Attributes
| Gtin | 5710104061542 |
|---|
Description

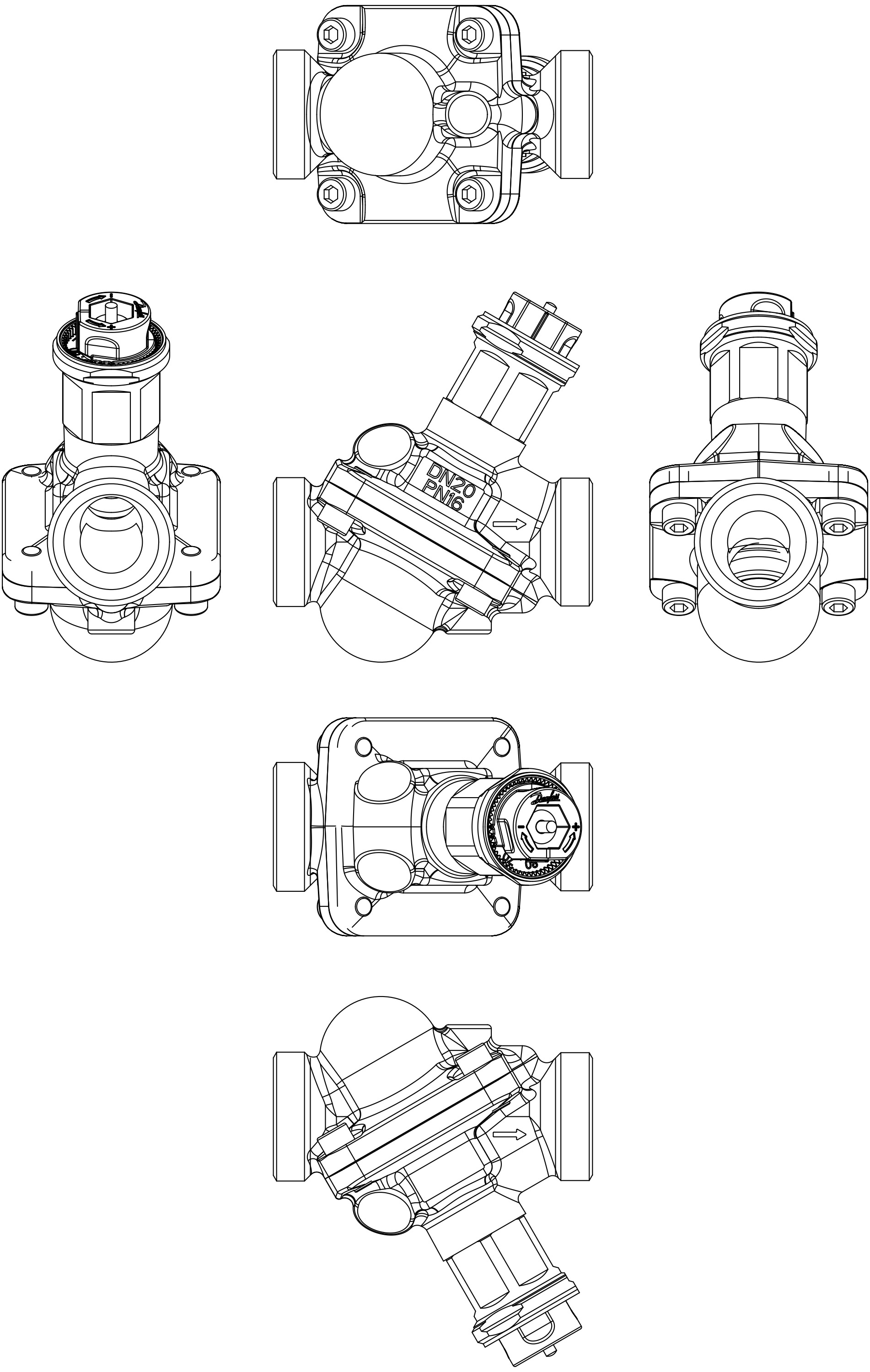

AB-QM ¾", High flow, without test plugs, pressure independent balancing and control valve
Specifications
| Quantity | Units of measure |
|---|---|
| Gross weight | 0.711 Kilogram |
| Net weight | 0.711 Kilogram |
| Volume | 1.298 Liter |
| EAN | 5710104061542 |
| Type | AB-QM ANSI |
| Product group | Pressure independent balancing and control valves |
| Actuator connection | M30 x 1.5 |
| China RoHS compliance | Out of scope |
| Connection types | External thread NPT |
| Contains batteries | No |
| Description | AB-QM ¾", High flow, without test plugs, pressure independent balancing and control valve |
| Differential pressure range [psi] [Max] | 60 psi |
| Differential pressure range [psi] [Min] | 5 psi |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow [gpm] [Max] | 7.5 gal/min |
| Flow nominal [m³/h] | 0 m³/h |
| Media temperature [°F] [Max] | 250 °F |
| Media temperature [°F] [Min] | 15 °F |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | c9bea54f-4bdf-47e5-8f19-a71801a13e6b |
| SCIP dossier product name | AB-QM 3/4" HF without test plugs |
| Static pressure [psi] [Max] | 300 psi |
| Stroke [mm] | 4 mm |
| Test plugs | Without test plugs |
| Valve body material | CW 617N |
| Valve size | ¾"High flow |
| Proposition 65 | WARNING: Cancer and Reproductive Harmwww.p65warnings.ca.gov |
| Visuals | Document Category |
