Attributes
| Gtin | 5702424604646 |
|---|
Description

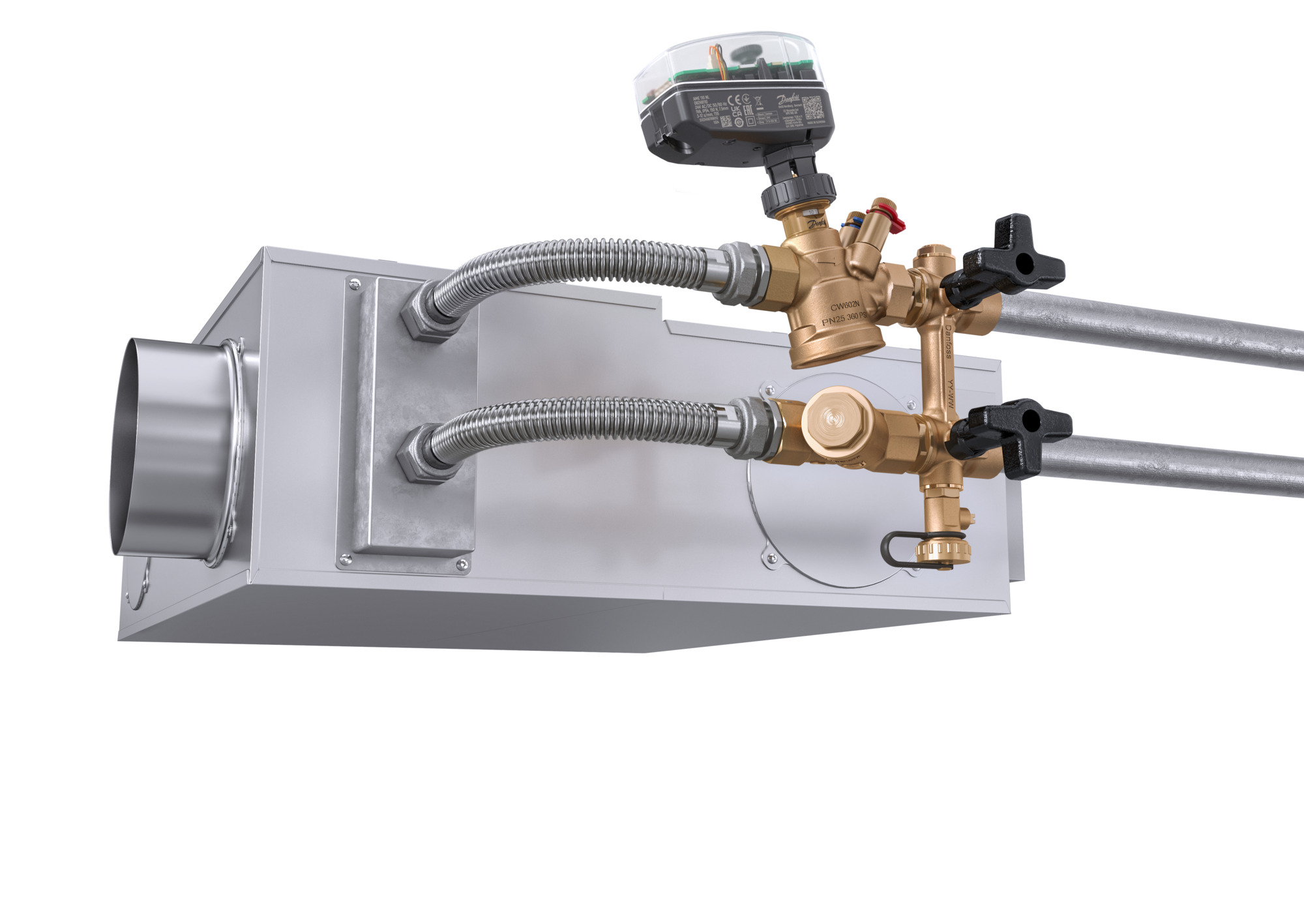

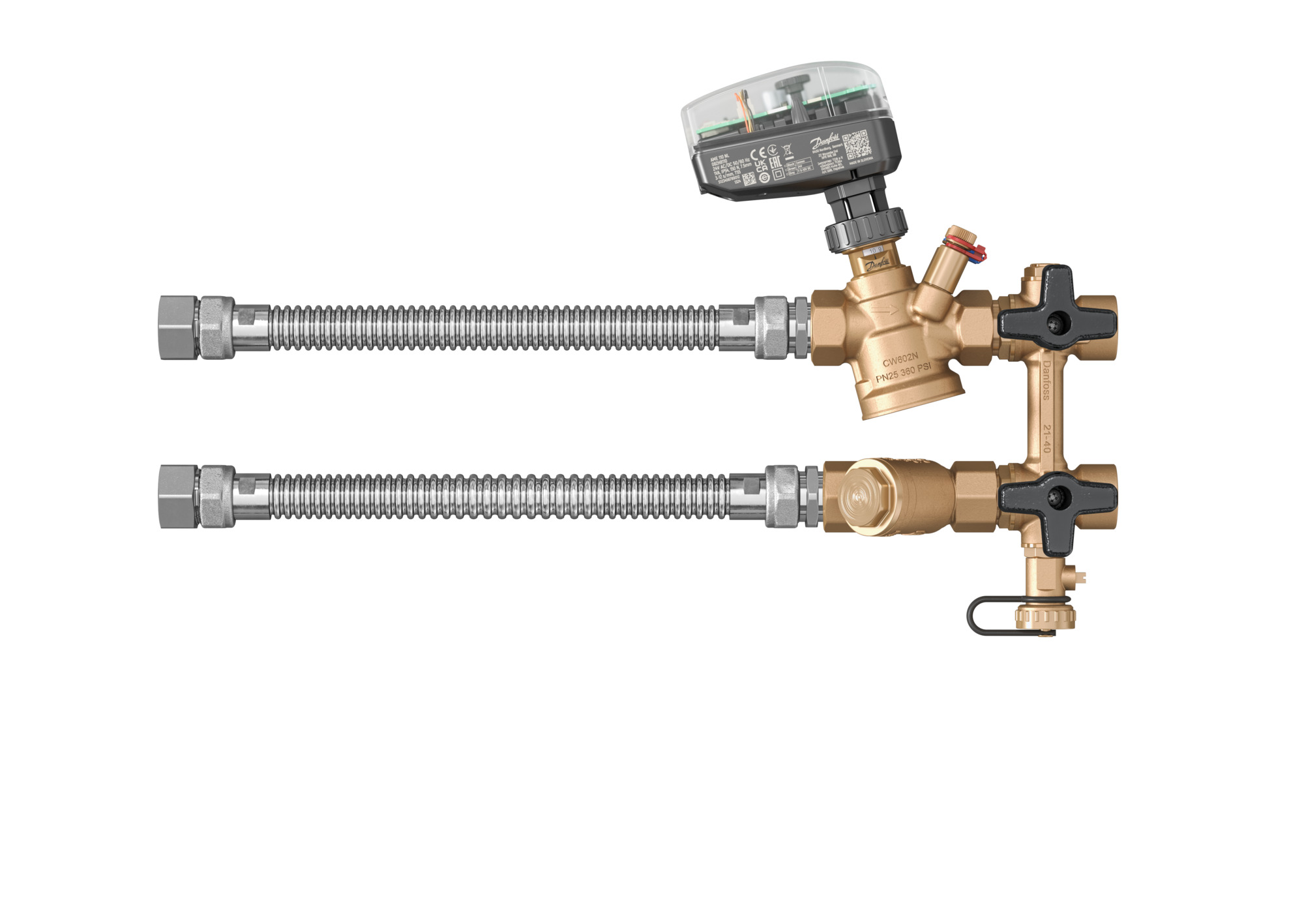

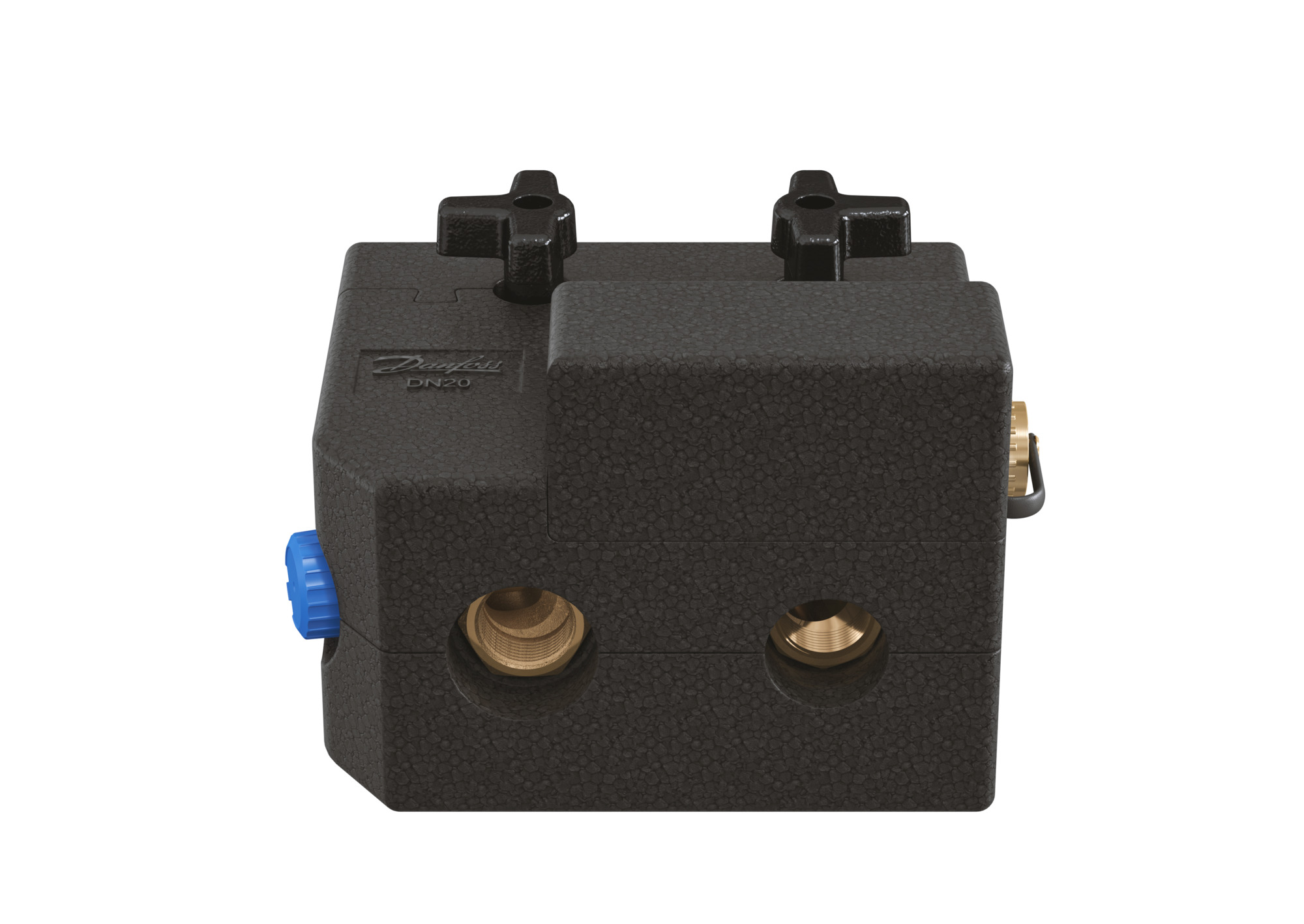

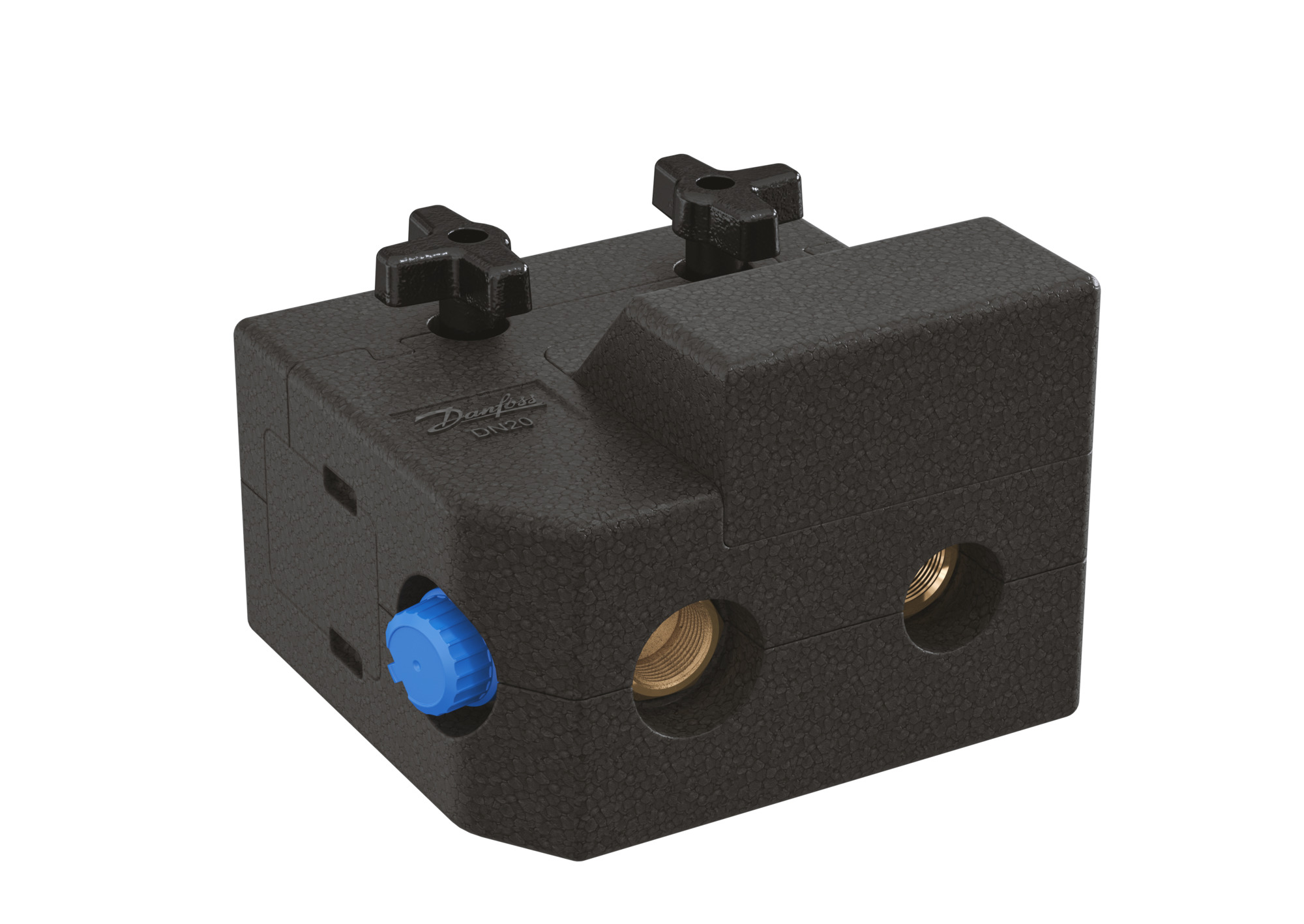

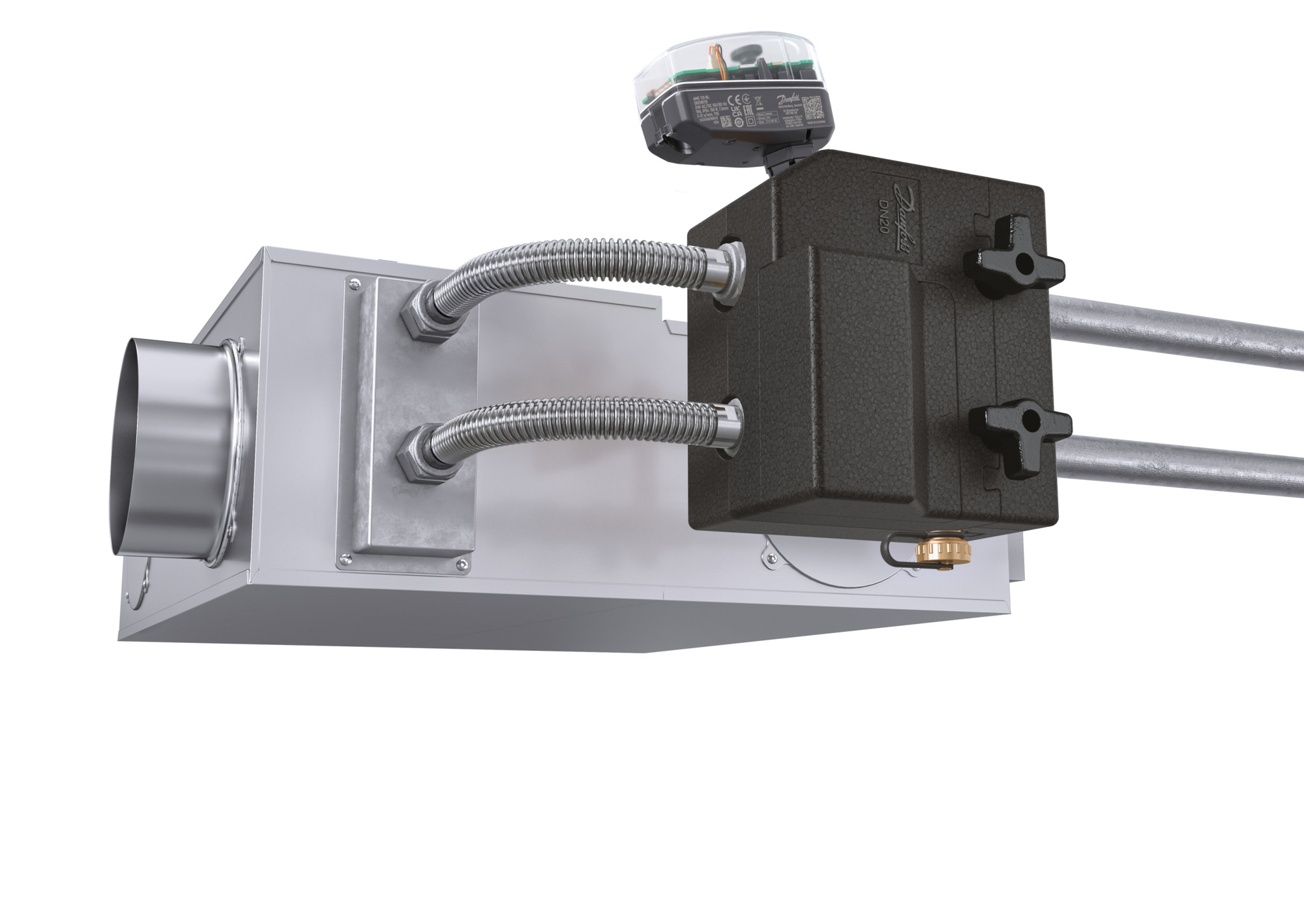

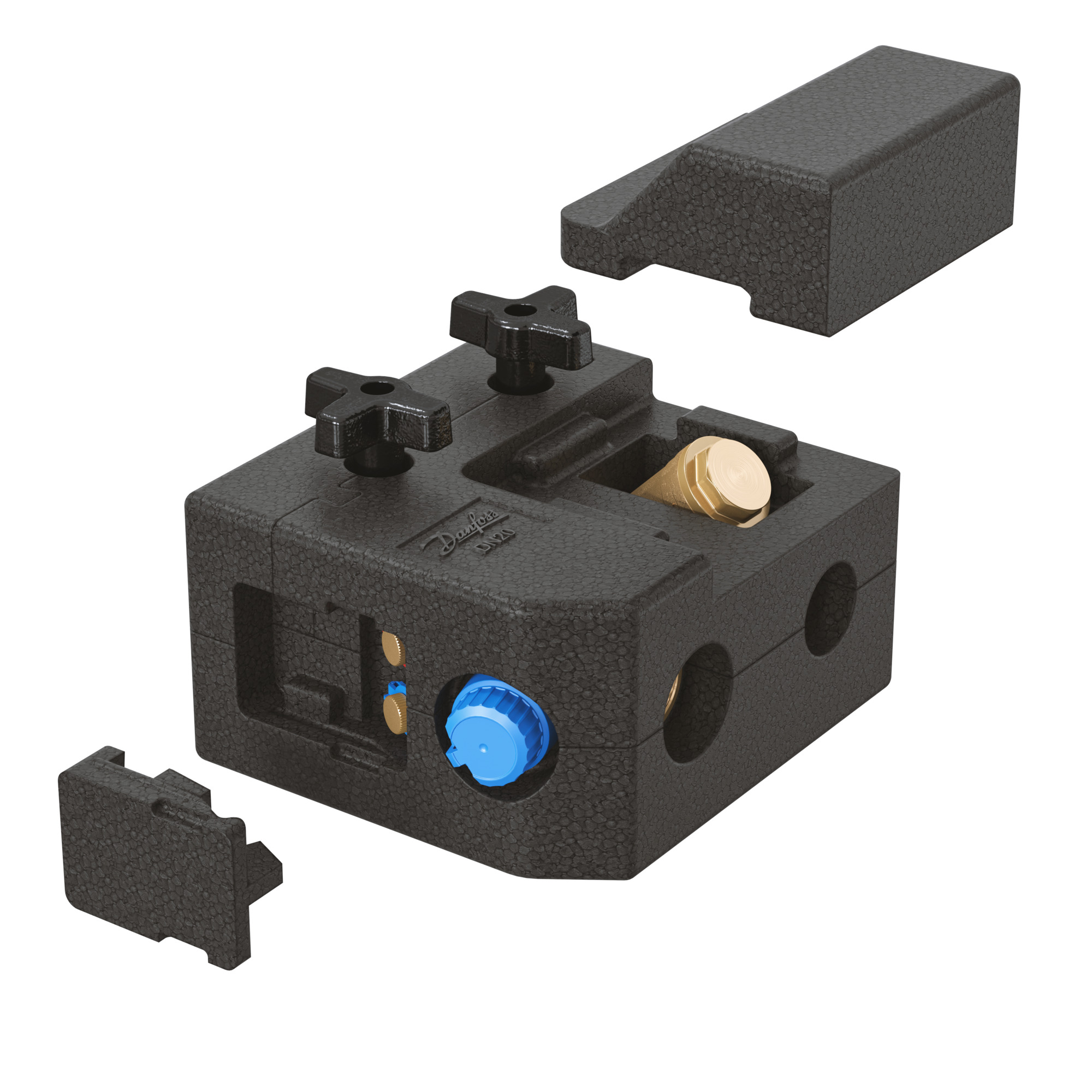

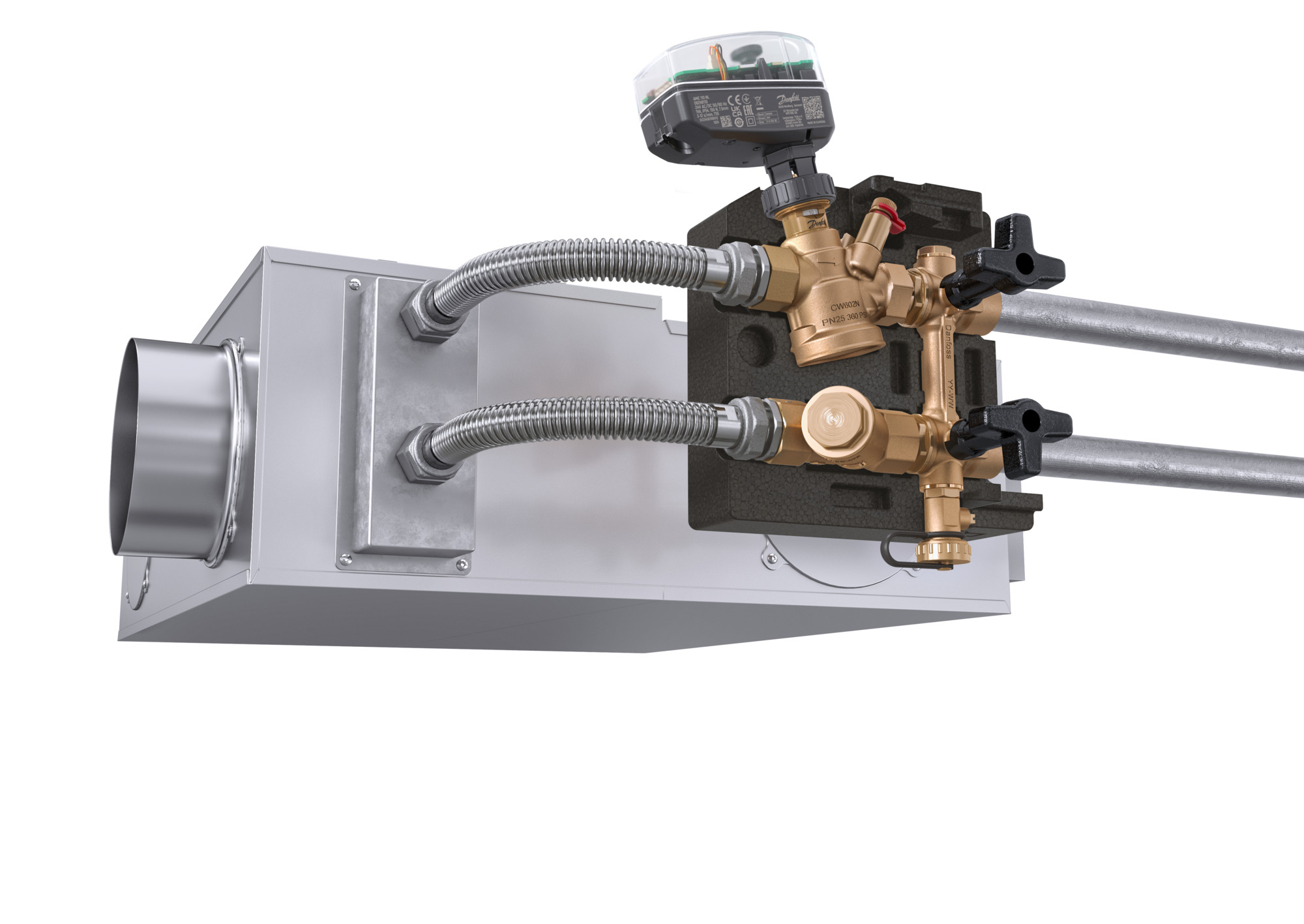

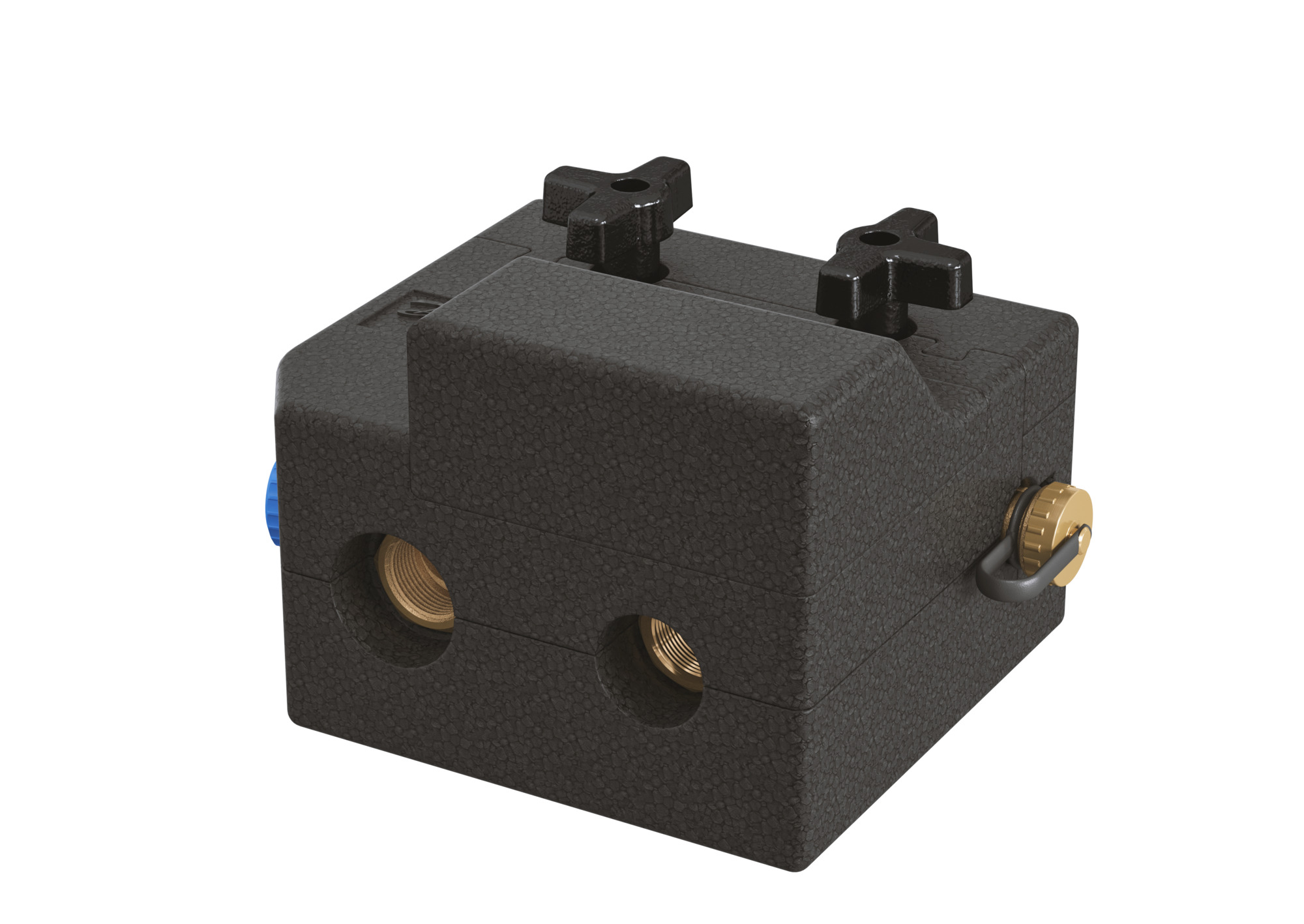

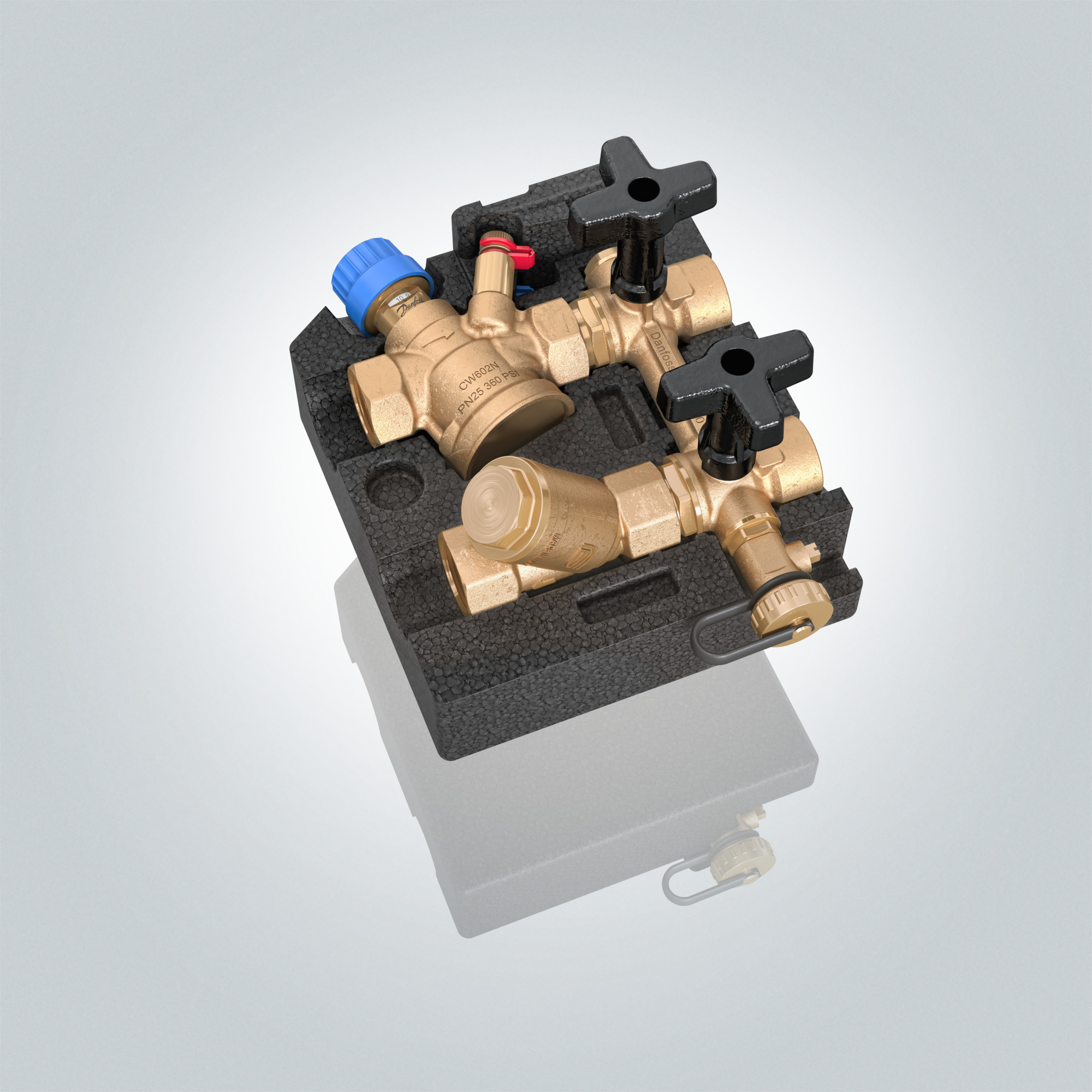

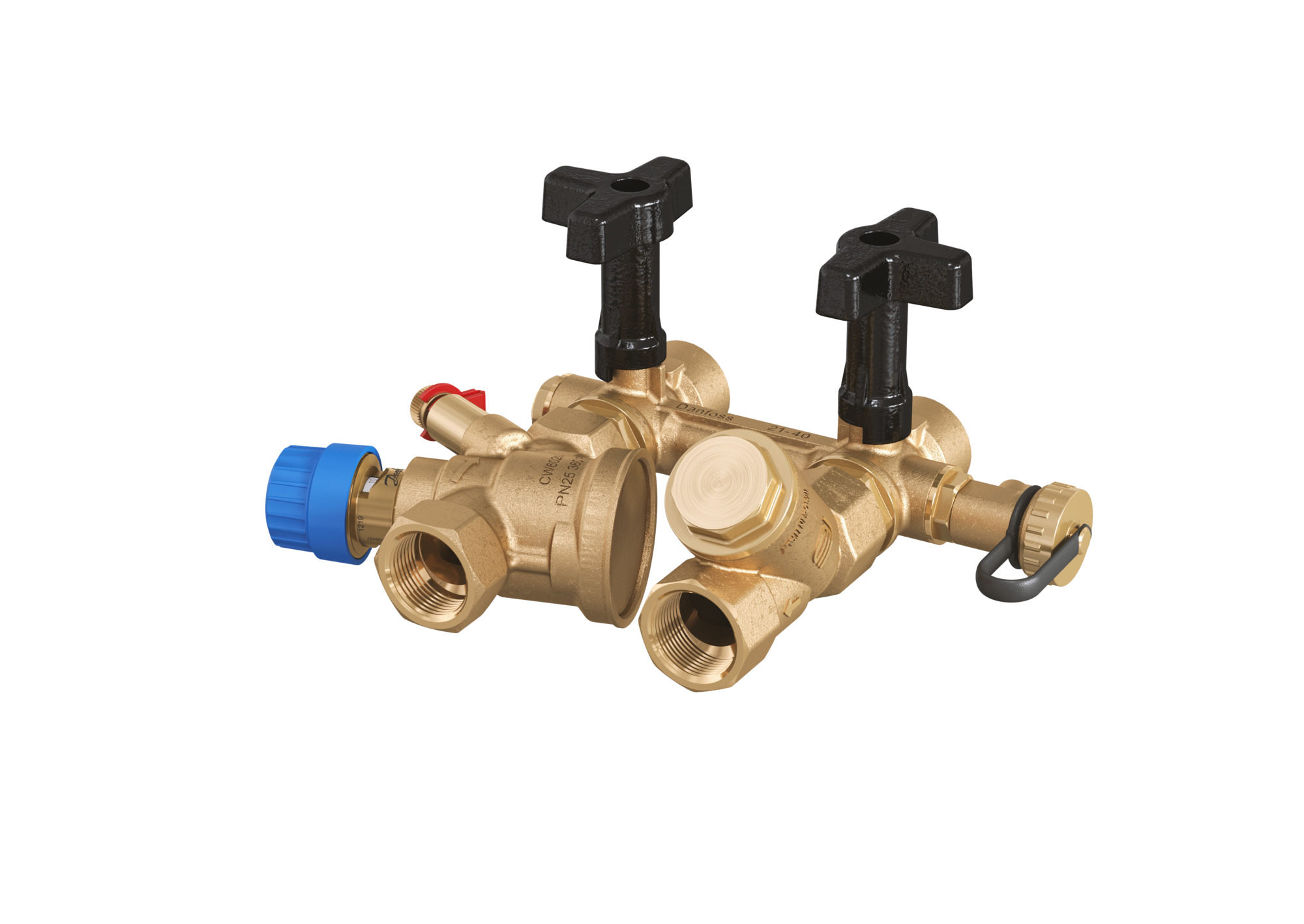

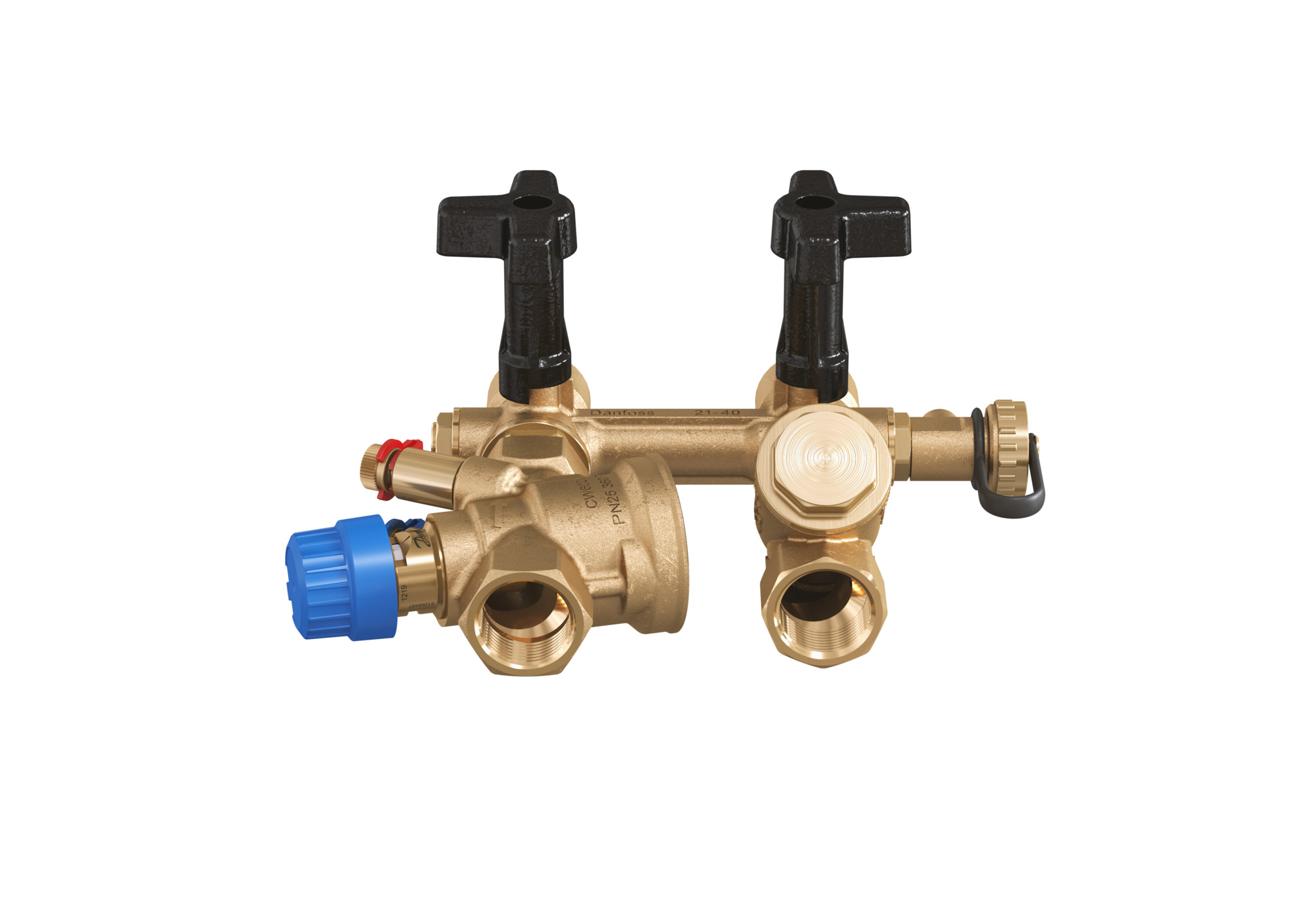

AB-QM 4.0 Flexo 80 DN15
Specifications
| Quantity | Units of measure |
|---|---|
| Gross weight | 1.96 Kilogram |
| Net weight | 1.46 Kilogram |
| Volume | 10.108 Liter |
| EAN | 5702424604646 |
| Type | AB-QM Flexo |
| Product group | Pressure independent balancing and control valves |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.3 |
| Connection types | Internal thread |
| Contains batteries | No |
| Description | AB-QM 4.0 Flexo 80 DN15 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow nominal [m³/h] | 0.2 m³/h |
| Media temperature [°C] [Max] | 95 °C |
| Media temperature [°C] [Min] | -10 °C |
| Pressure class | PN 25 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 76d8332e-0aba-4f91-b613-8ca82287d6e7 |
| SCIP dossier product name | AB-QM 4.0 Flexo Left,Right - hand version |
| Test plugs | With test plugs |
| Valve size | DN 15 LFLow flow |
| Version | Left-hand |
| Proposition 65 | WARNING: Cancer and Reproductive Harmwww.p65warnings.ca.gov |
| Visuals | Document Category |
