Attributes
| Gtin | 5702424617837 |
|---|
Description

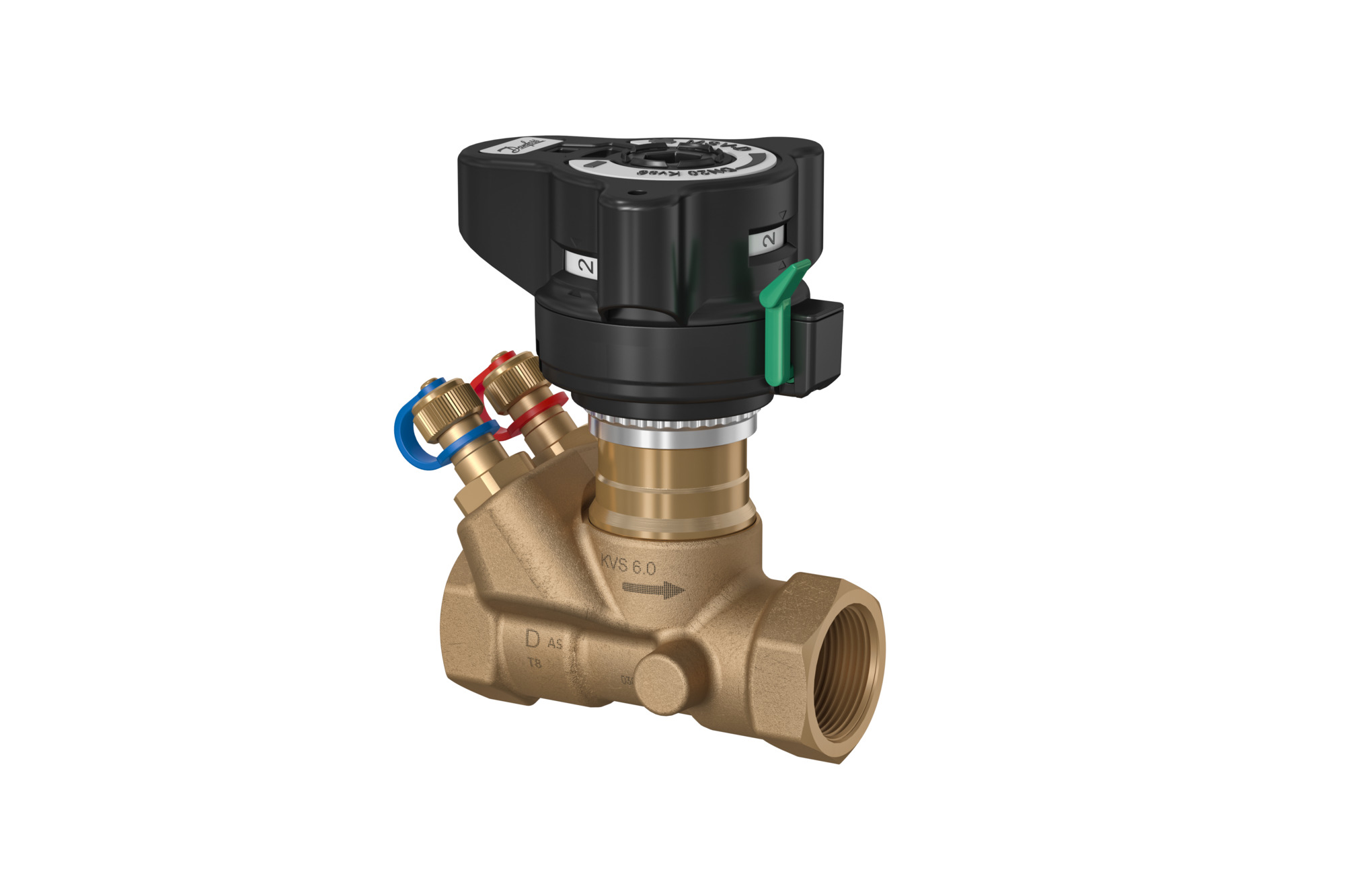

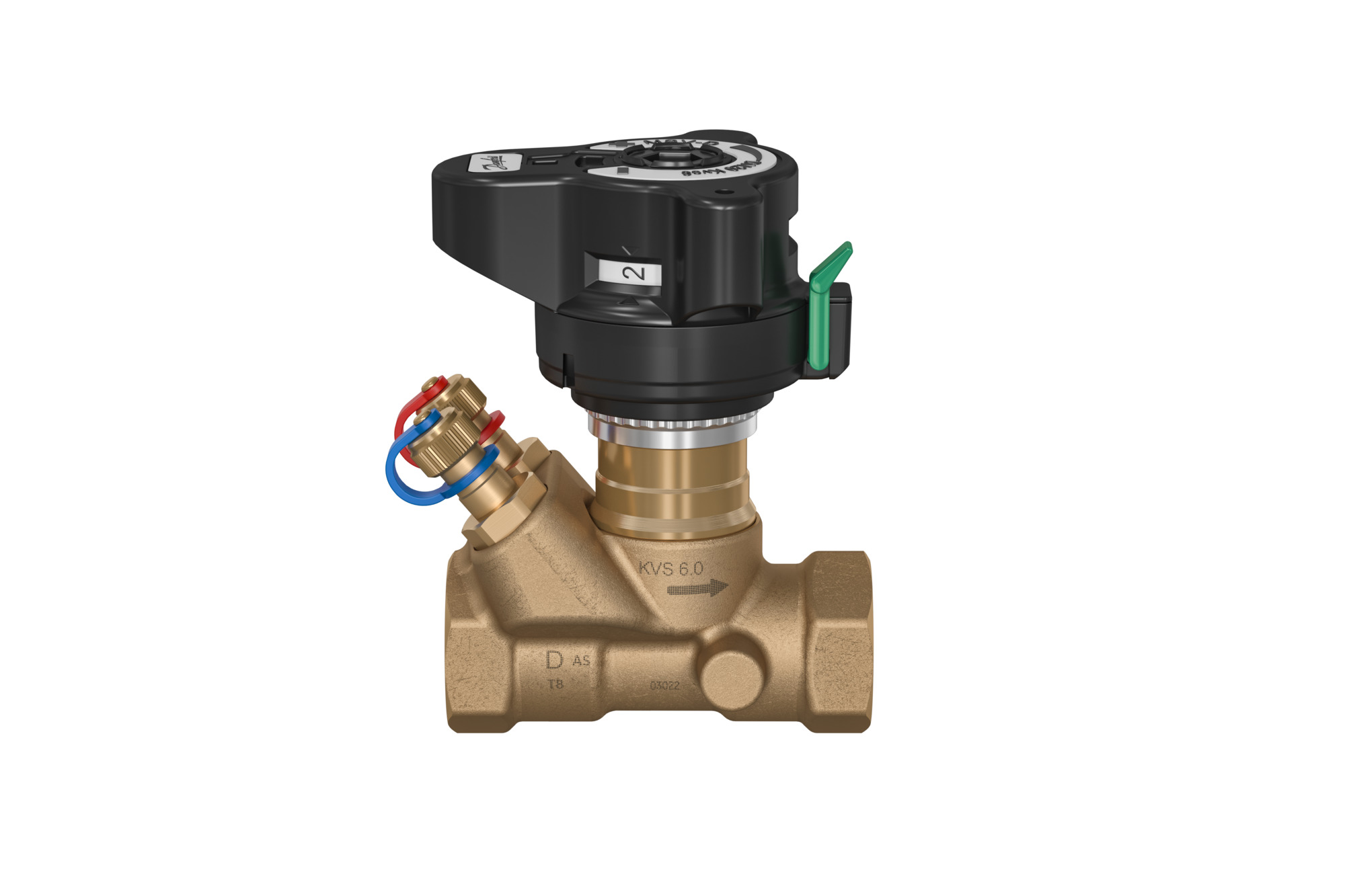

LENO ™ MSV-D valve with internal thread DN 15
Specifications
| Quantity | Units of measure |
|---|---|
| Gross weight | 0.655 Kilogram |
| Net weight | 0.59 Kilogram |
| Volume | 1.396 Liter |
| EAN | 5702424617837 |
| Type | LENO MSV-D |
| Product group | Manual balancing |
| China RoHS compliance | Out of scope |
| Connection types | Internal thread ISO 228/2 |
| Connections | G ½ |
| Contains batteries | No |
| Description | LENO™ MSV-D valve with internal thread DN 15 |
| Differential pressure [kPa] [Max] | 3 KPa |
| Drain function | No |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Kvs values [m³/h] | 3 m³/h |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -20 °C |
| Pressure class | PN 20 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 76bea36b-35ef-421e-bf82-0ee0ad554e3f |
| SCIP dossier product name | MSV-D/ASV-D |
| Setting scale | Yes |
| Shut-off function | Yes |
| Shut-off leakage rate (ISO 5208) | Rate A |
| Test plugs | With test plugs |
| Valve body material | CW 617N |
| Valve size | DN 15 |
| Proposition 65 | WARNING: Cancer and Reproductive Harmwww.p65warnings.ca.gov |
| Visuals | Document Category |
