Attributes
| Gtin | 5714279038613 |
|---|
Description

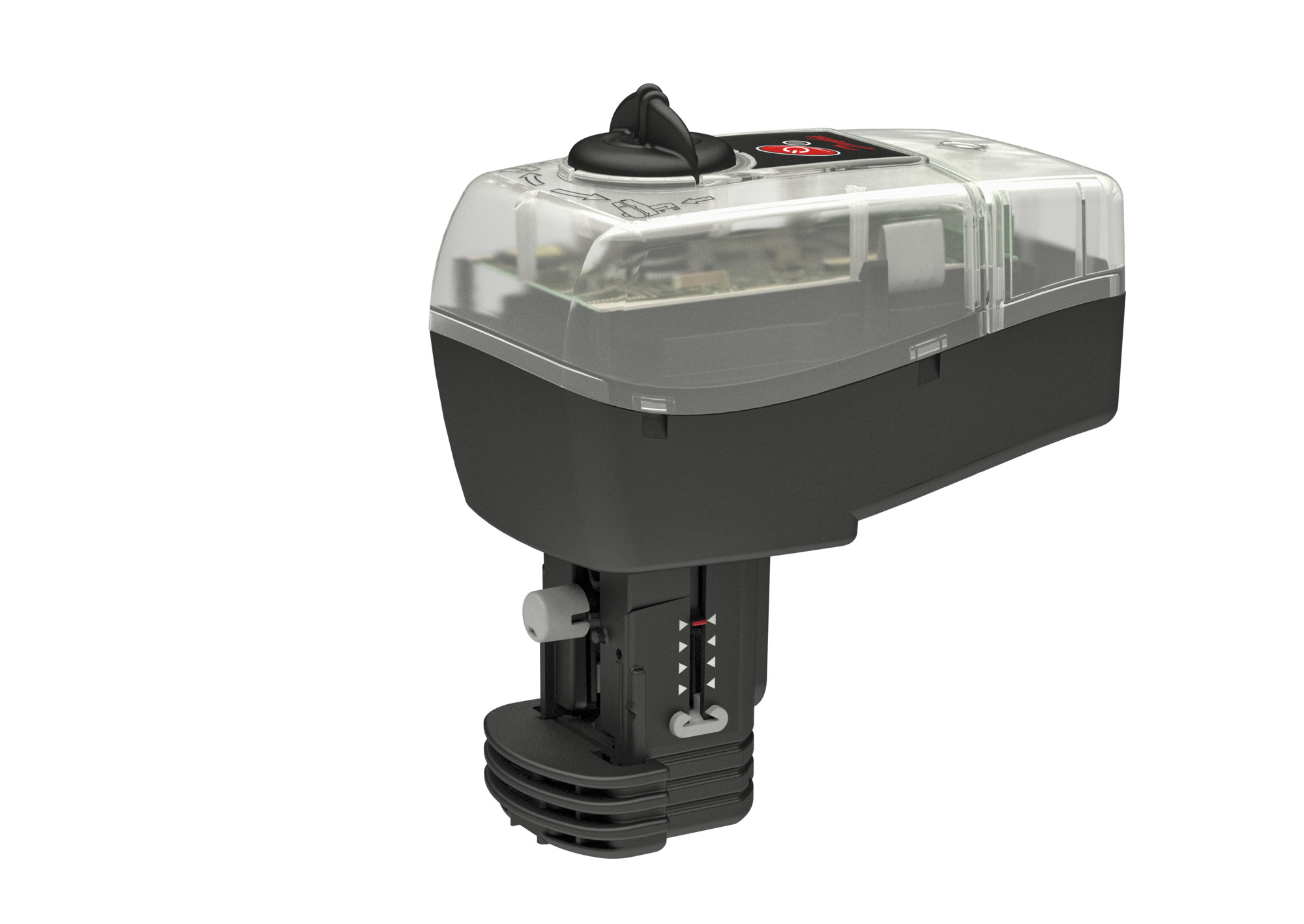

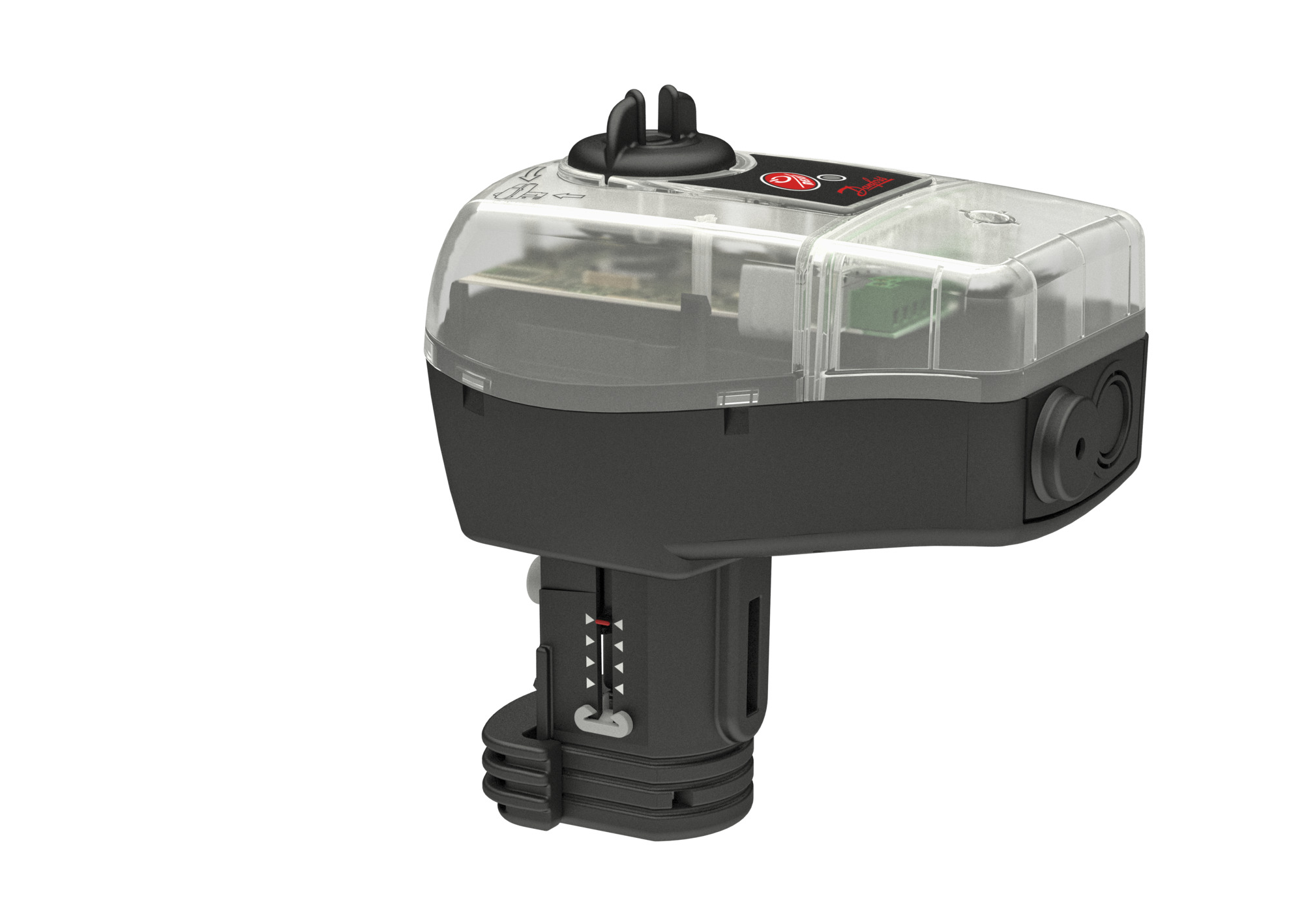

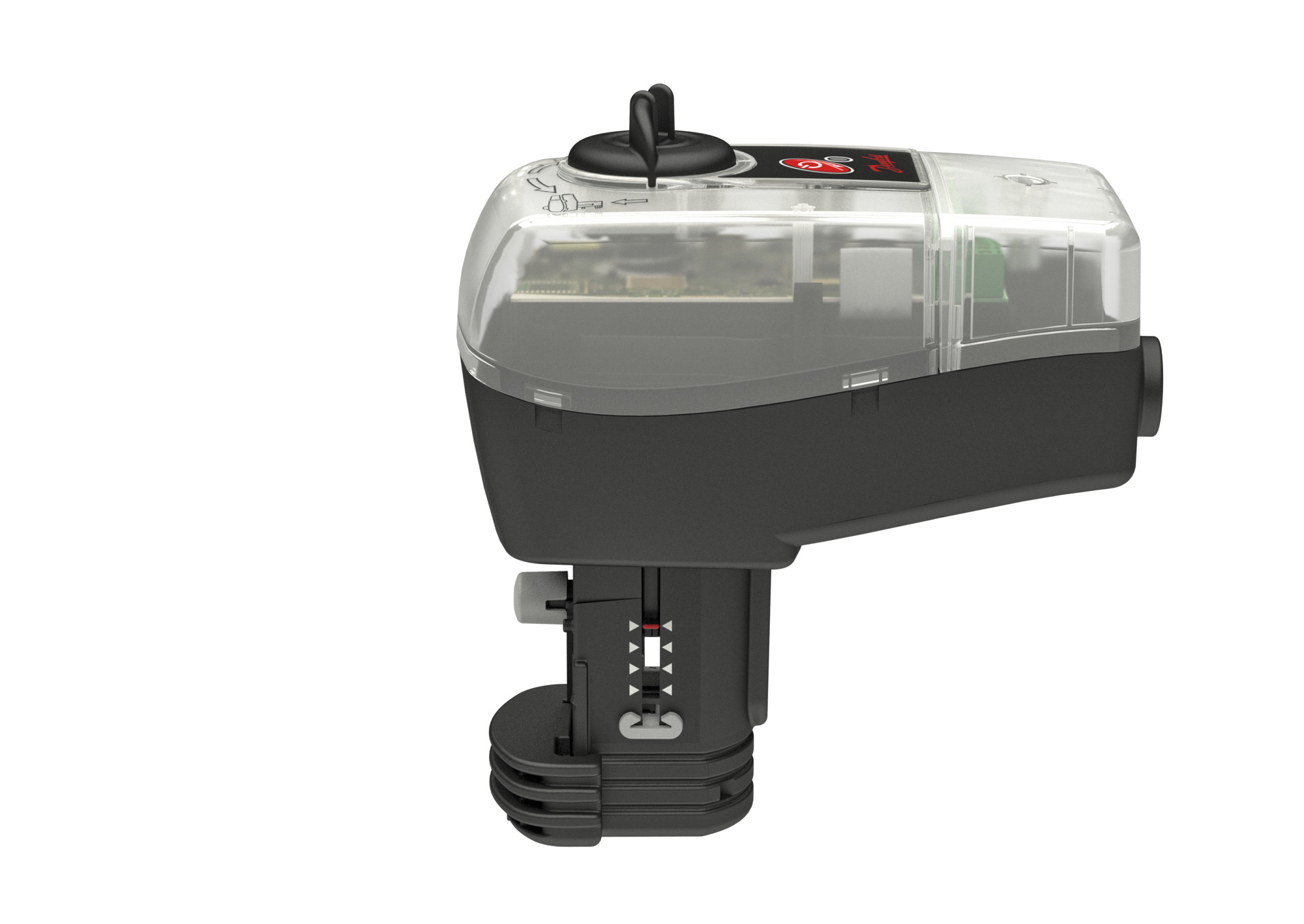

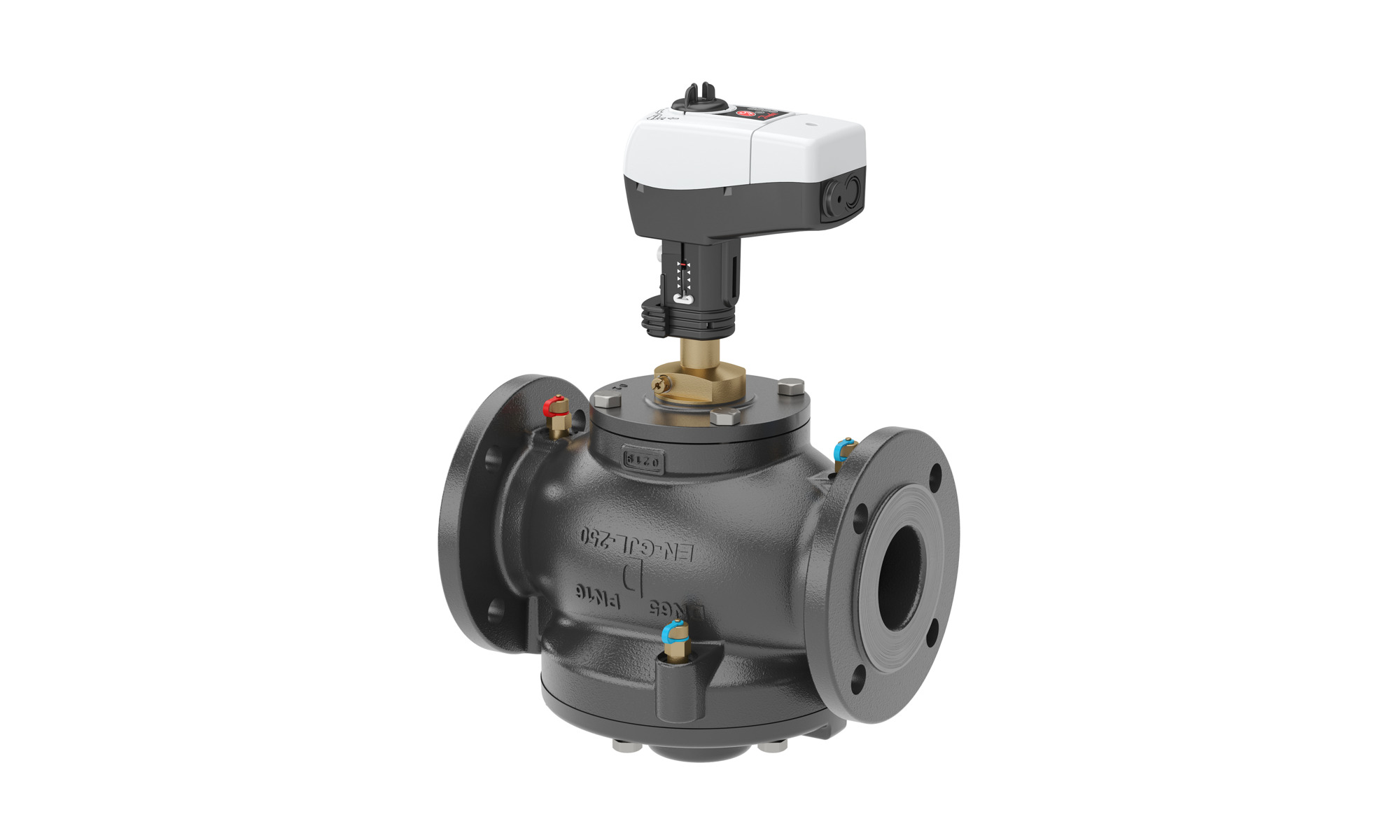

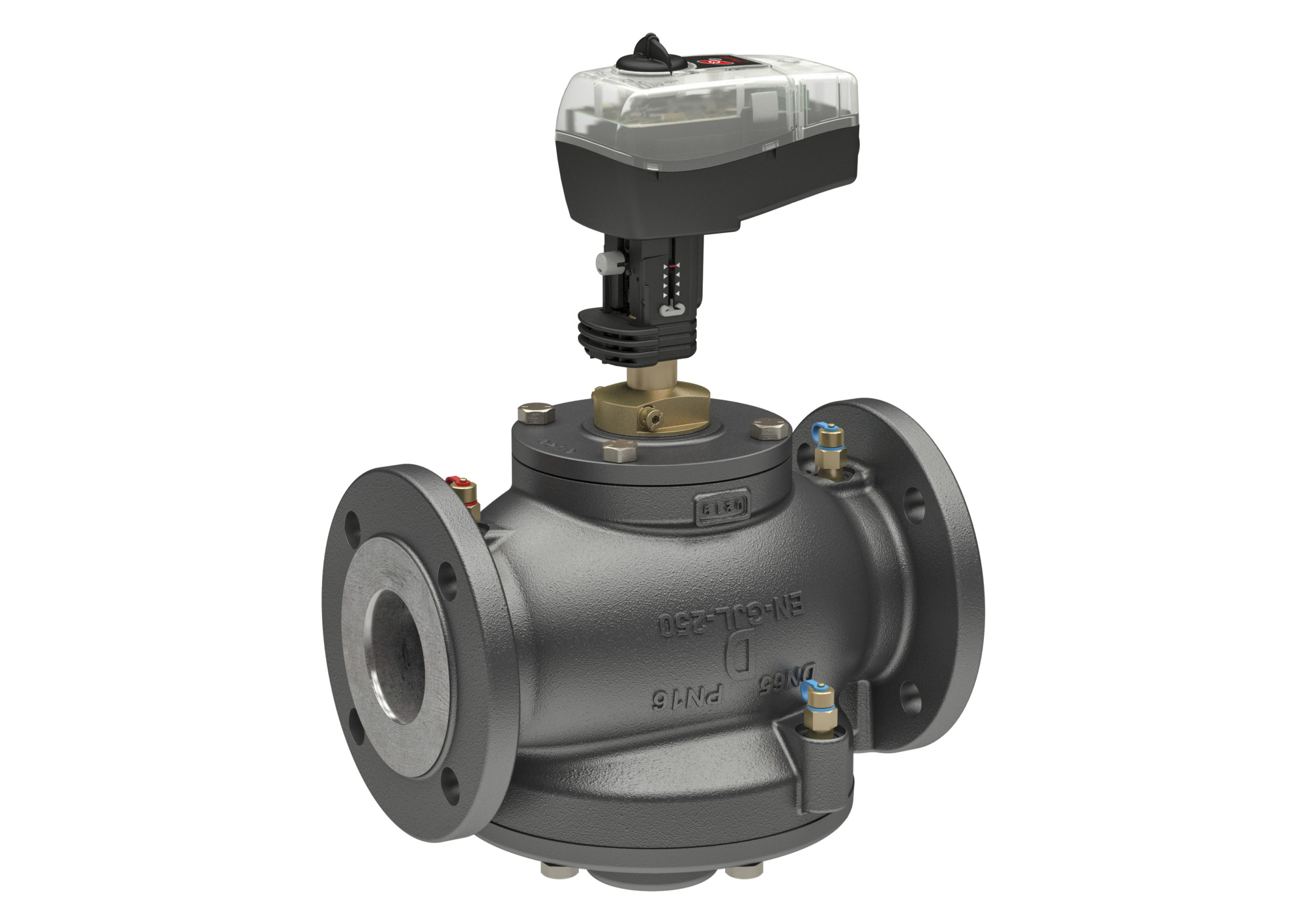

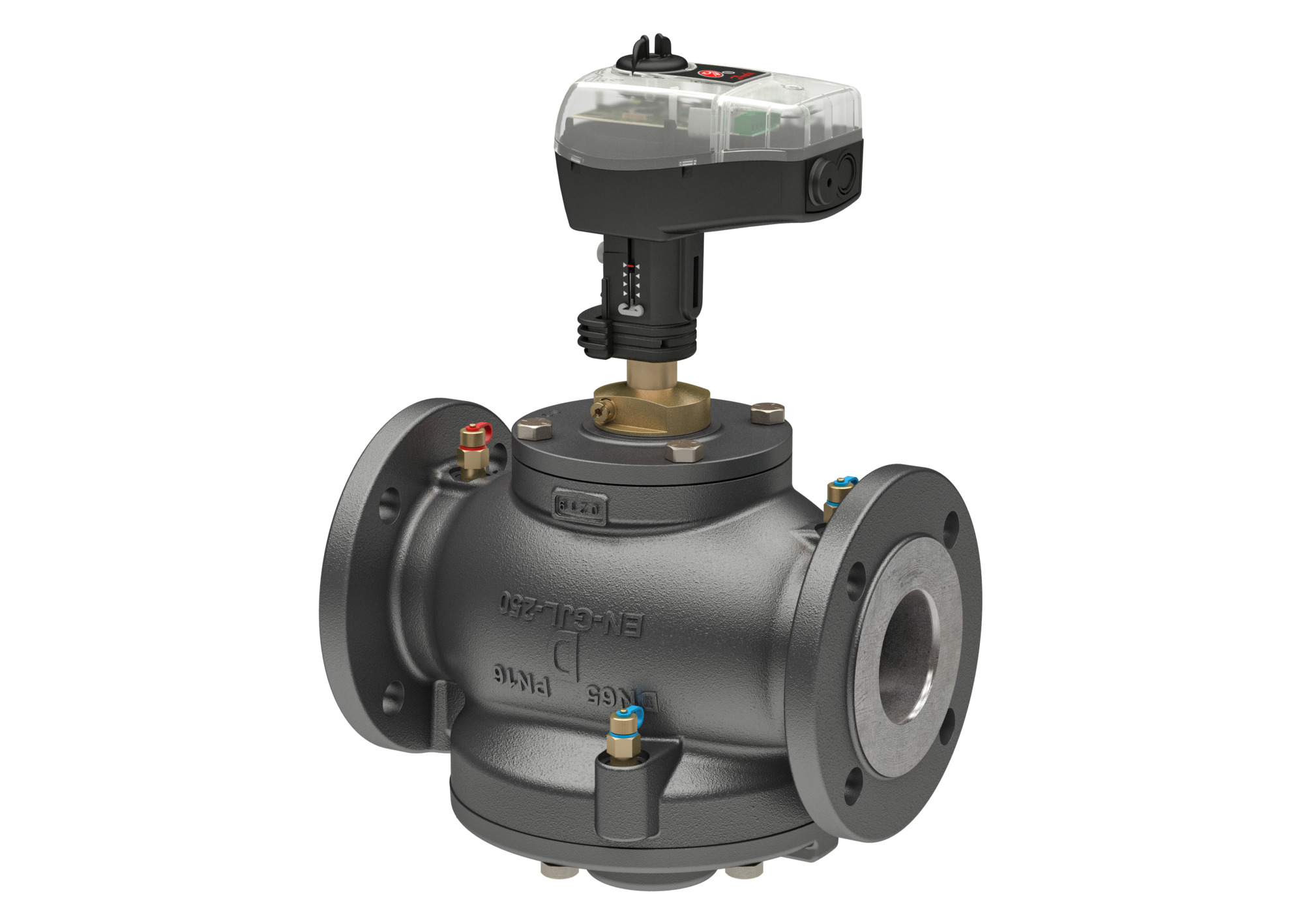

NovoCon M, Digital actuator for AB-QM DN 40-100 003Z8540 NovoCon M, Digital actuator for AB-QM DN 40-100
Specifications
| Quantity | Units of measure |
|---|---|
| Gross weight | 0.7 Kilogram |
| Net weight | 0.7 Kilogram |
| Volume | 3.529 Liter |
| EAN | 5714279038613 |
| Type | NovoCon M |
| Product group | Gear actuators |
| Cable included | No |
| China RoHS compliance | Out of scope |

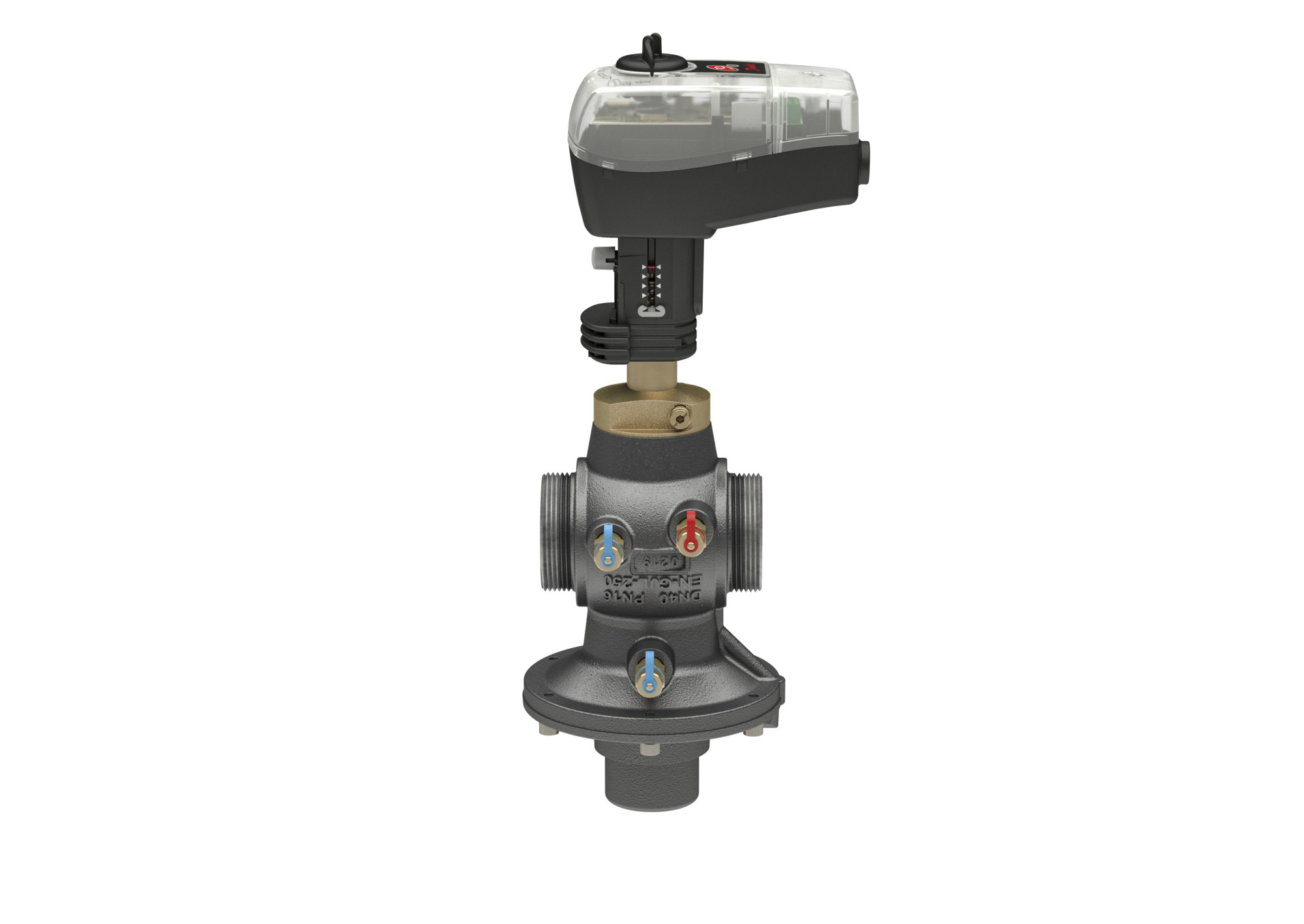

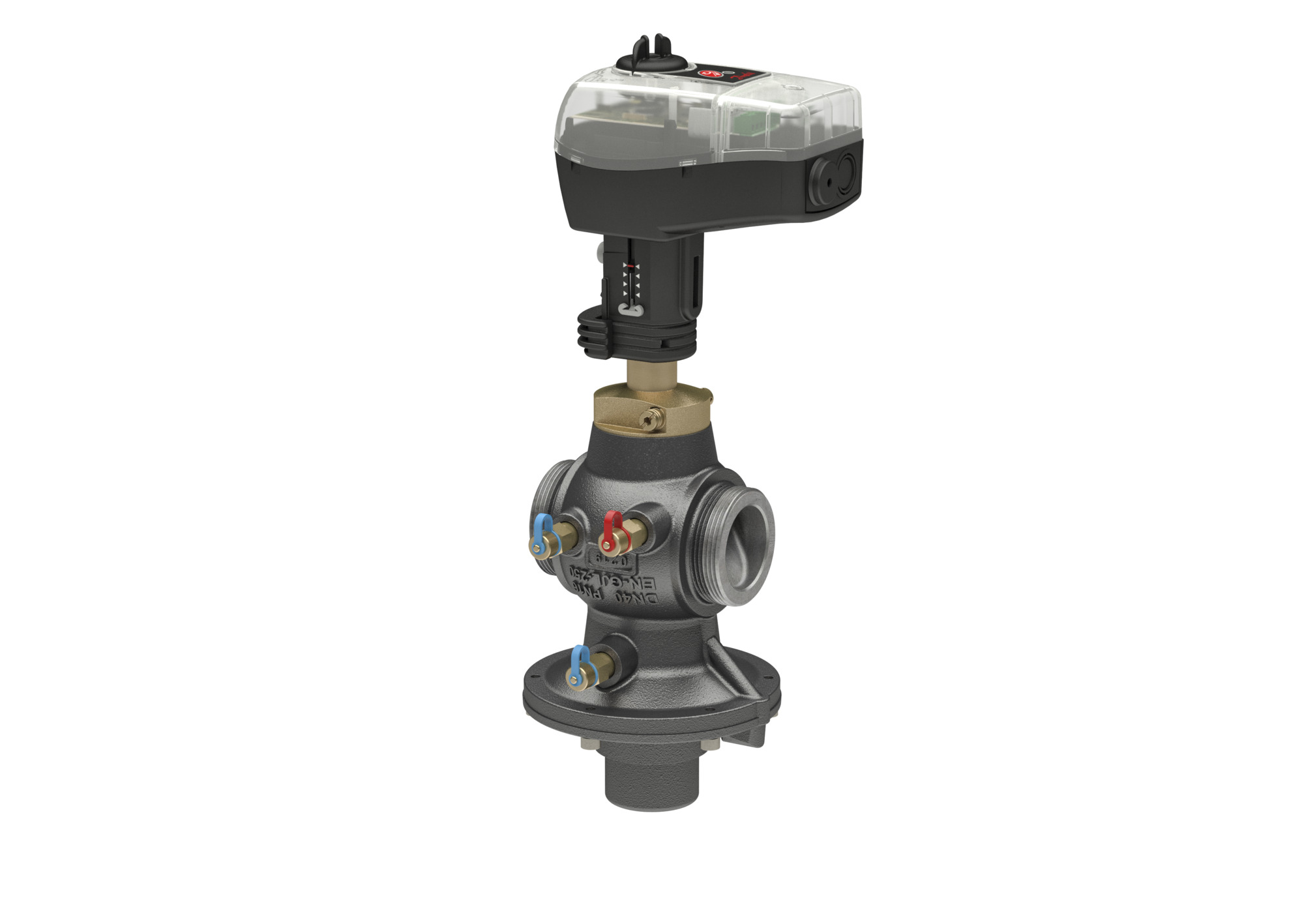

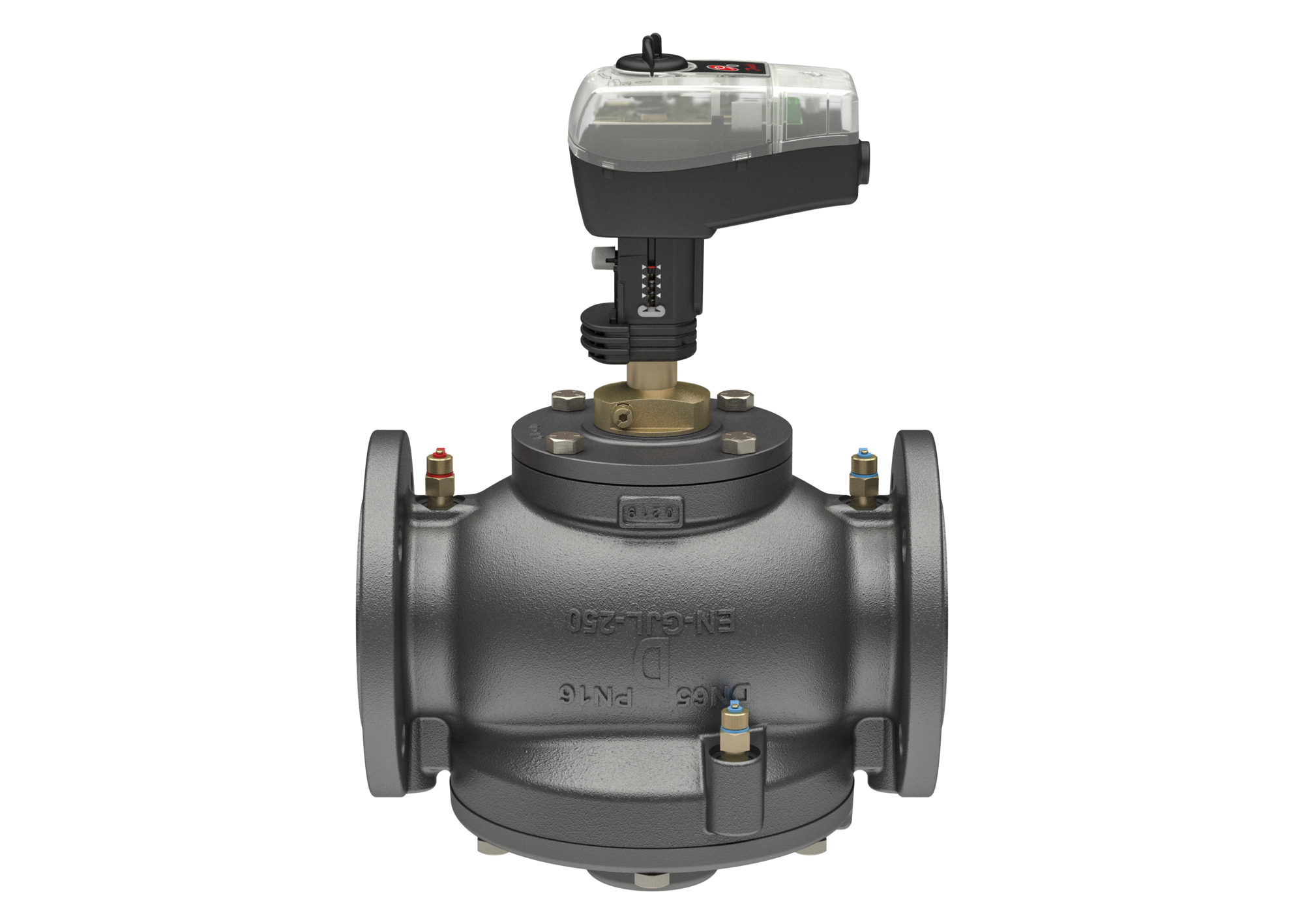

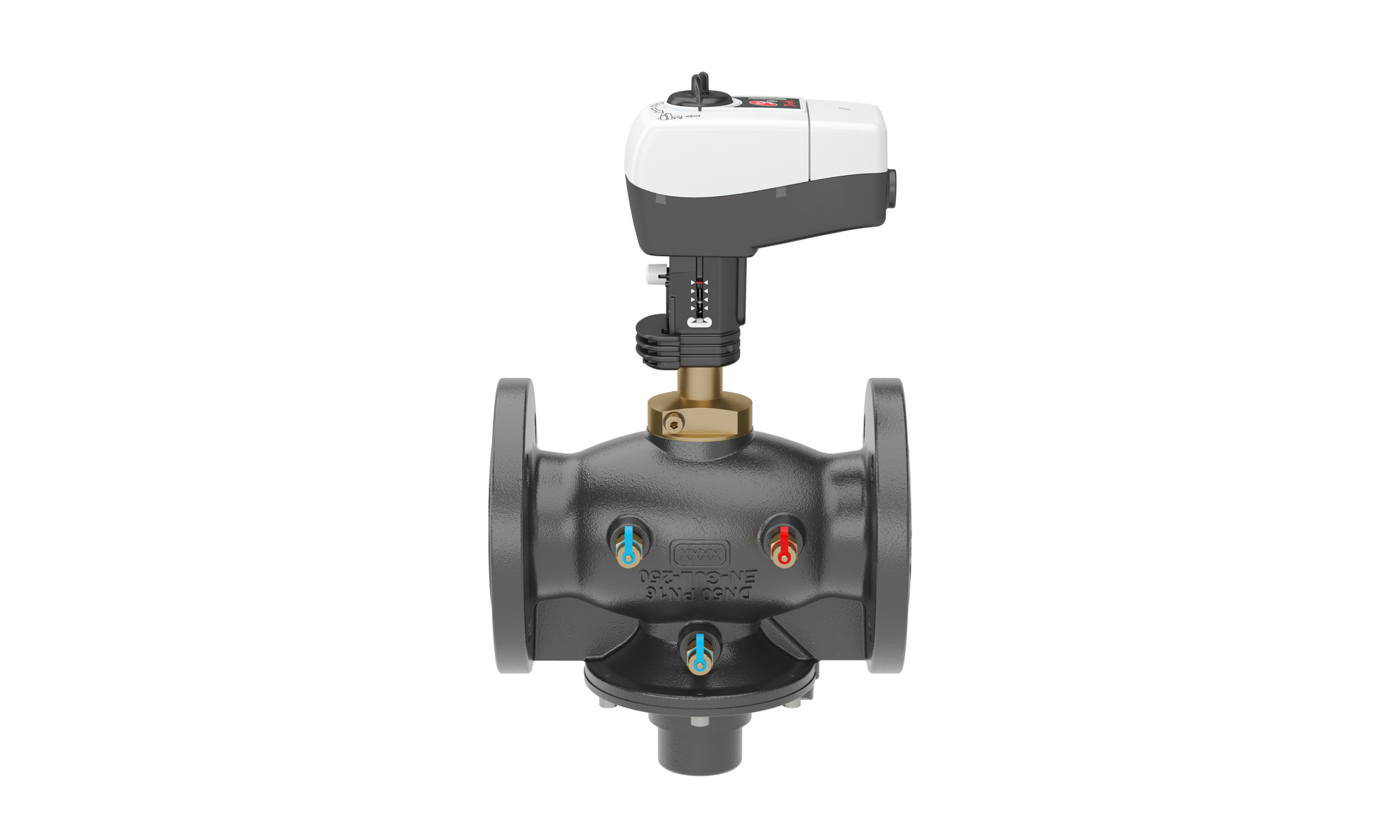

| Compatibility with AB-QM size | DN 40-100 |
| Contains batteries | No |
| Control signal type | 0-10 VDC, 0-5 VDC, 2-10 VDC, 5-10 VDC, 2-6 VDC, 6-10 VDC, 0-20 mA, 4-20 mA, BACnet MS/TP, Modbus RTU |
| Description | NovoCon M, Digital actuator for AB-QM DN 40-100 |
| EPD available | Yes |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| IP protection class | IP 54 (IP 40 upside down) |
| REACH Candidate List substances | No |
| Stroke [mm] | 20 mm |
| Supply voltage [V] | 24 V AC/DC |
| Proposition 65 | WARNING: No Reproductive Toxins or Carcinogenswww.p65warnings.ca.gov |
| Visuals | Document Category |
| Software Type Application software Software tools | Title |
| Application software | Firmware for NovoCon® M 309 KB |
