Attributes
| Gtin | 5714279426090 |
|---|
Description

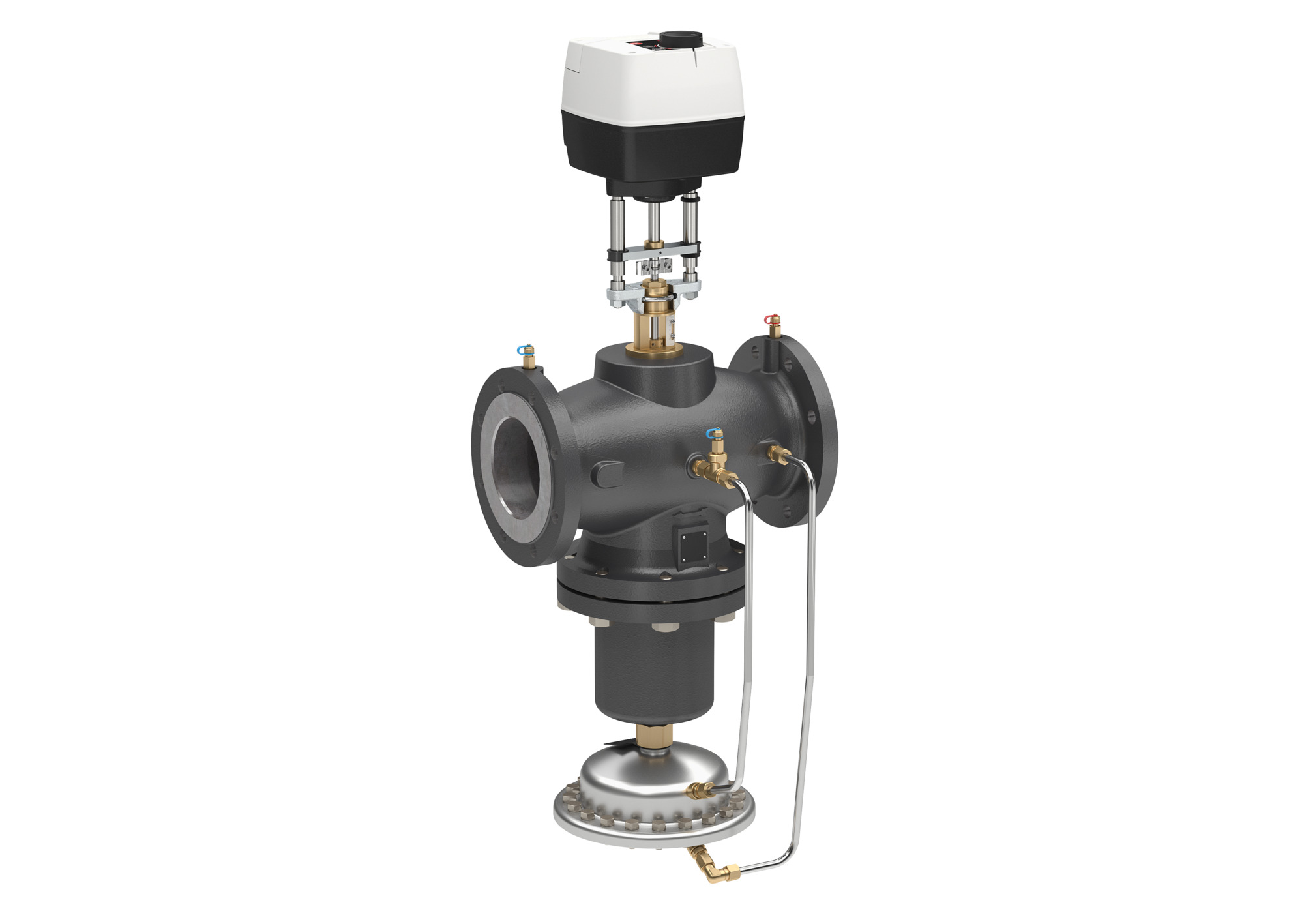

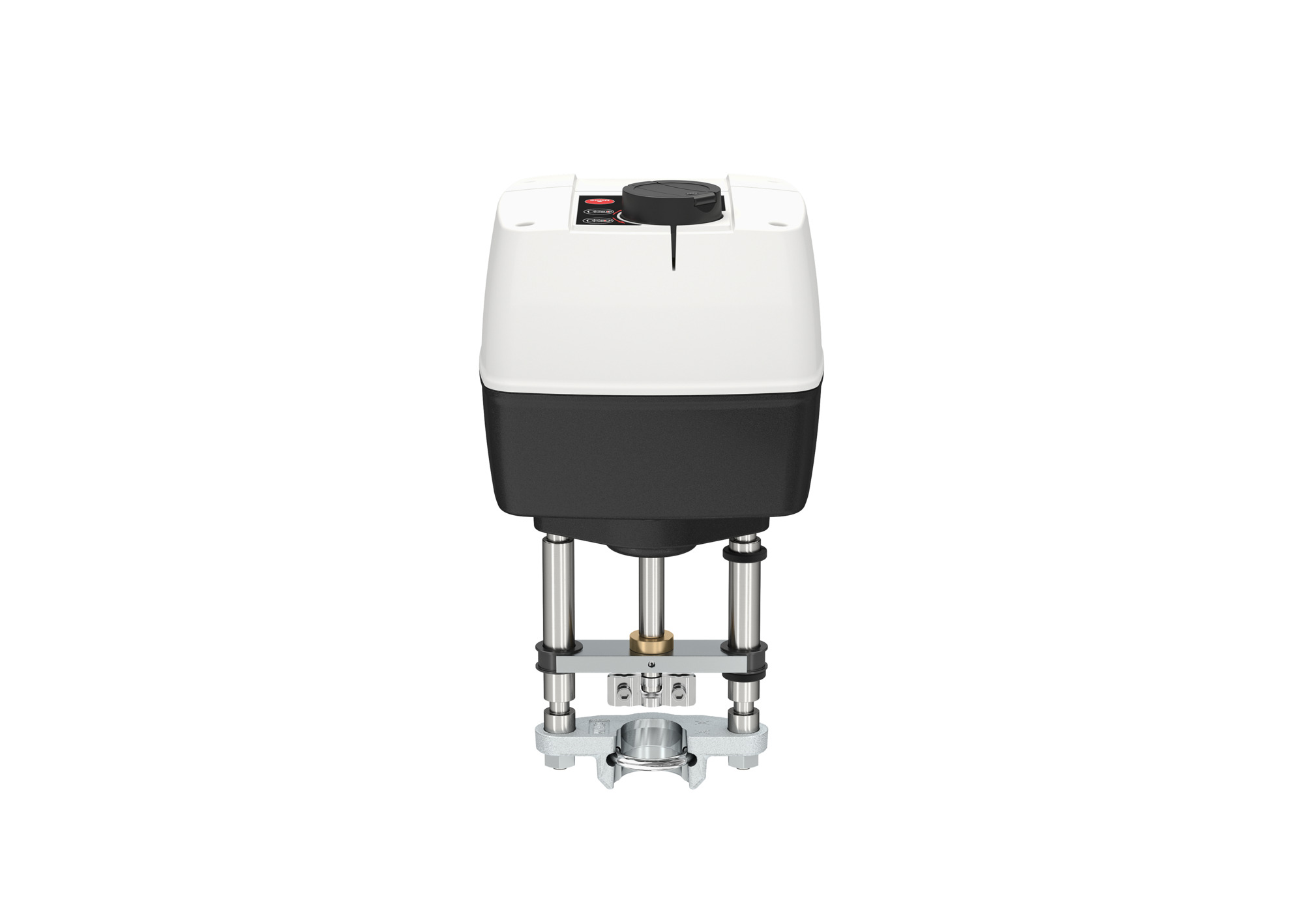

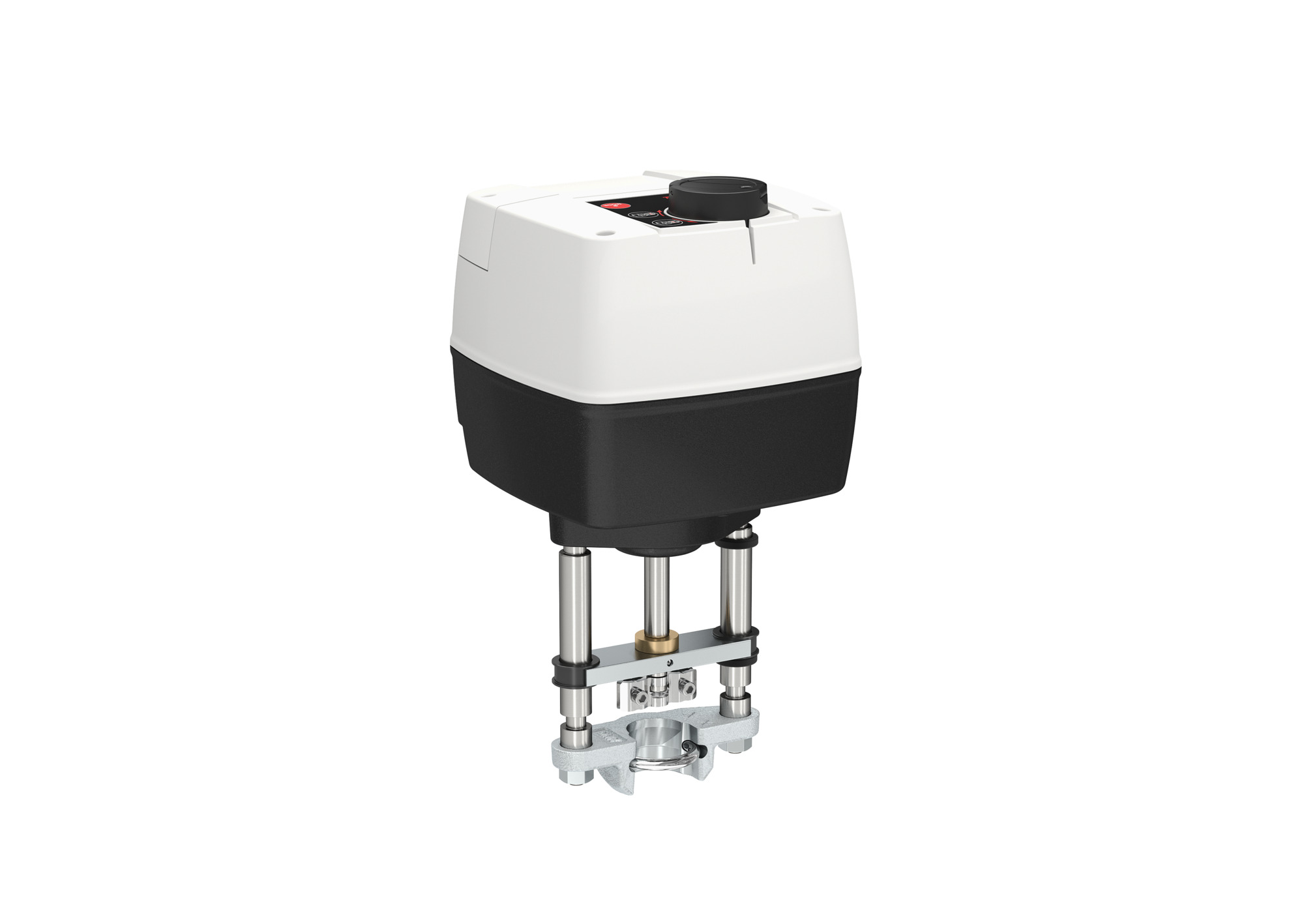

NovoCon L, Digital actuator for AB-QM DN 125-150
Specifications
| Quantity | Units of measure |
|---|---|
| Gross weight | 6.241 Kilogram |
| Net weight | 5.4 Kilogram |
| Volume | 17.85 Liter |
| EAN | 5714279426090 |
| Type | NovoCon L |
| Product group | Gear actuators |
| Cable included | No |
| China RoHS compliance | Out of scope |
| Compatibility with AB-QM size | DN 125-150 |
| Contains batteries | No |
| Control characteristic | Linear / Equal percentage |
| Control signal type | 0-10 VDC, 0-5 VDC, 2-10 VDC, 5-10 VDC, 2-6 VDC, 6-10 VDC, 0-20 mA, 4-20 mA, BACnet MS/TP, Modbus RTU |
| Description | NovoCon L, Digital actuator for AB-QM DN 125-150 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| IP protection class | IP54 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | bad9cf13-e2d7-4b05-aa17-8711eb767175 |
| SCIP dossier product name | NovoCon L |
| Stroke [mm] | 50 mm |
| Supply voltage [V] | 24 V AC/DC |
| Proposition 65 | WARNING: Cancer and Reproductive Harmwww.p65warnings.ca.gov |
| Visuals | Document Category |
| Software Type Application software Software tools | Title |
| Application software | Firmware for NovoCon® L/XL 315 KB |
