Attributes
| Gtin | 5715162512227 |
|---|
Description
Max. Working Pressure [psig]: 1305, Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF
Specifications
| Quantity | Units of measure |
|---|---|
| Gross weight | 0.173 Kilogram |
| Net weight | 0.119 Kilogram |
| Volume | 0.704 Liter |
| EAN | 5715162512227 |
| Type | GBC 10s H |
| Product group | Shut-off and regulating valves |

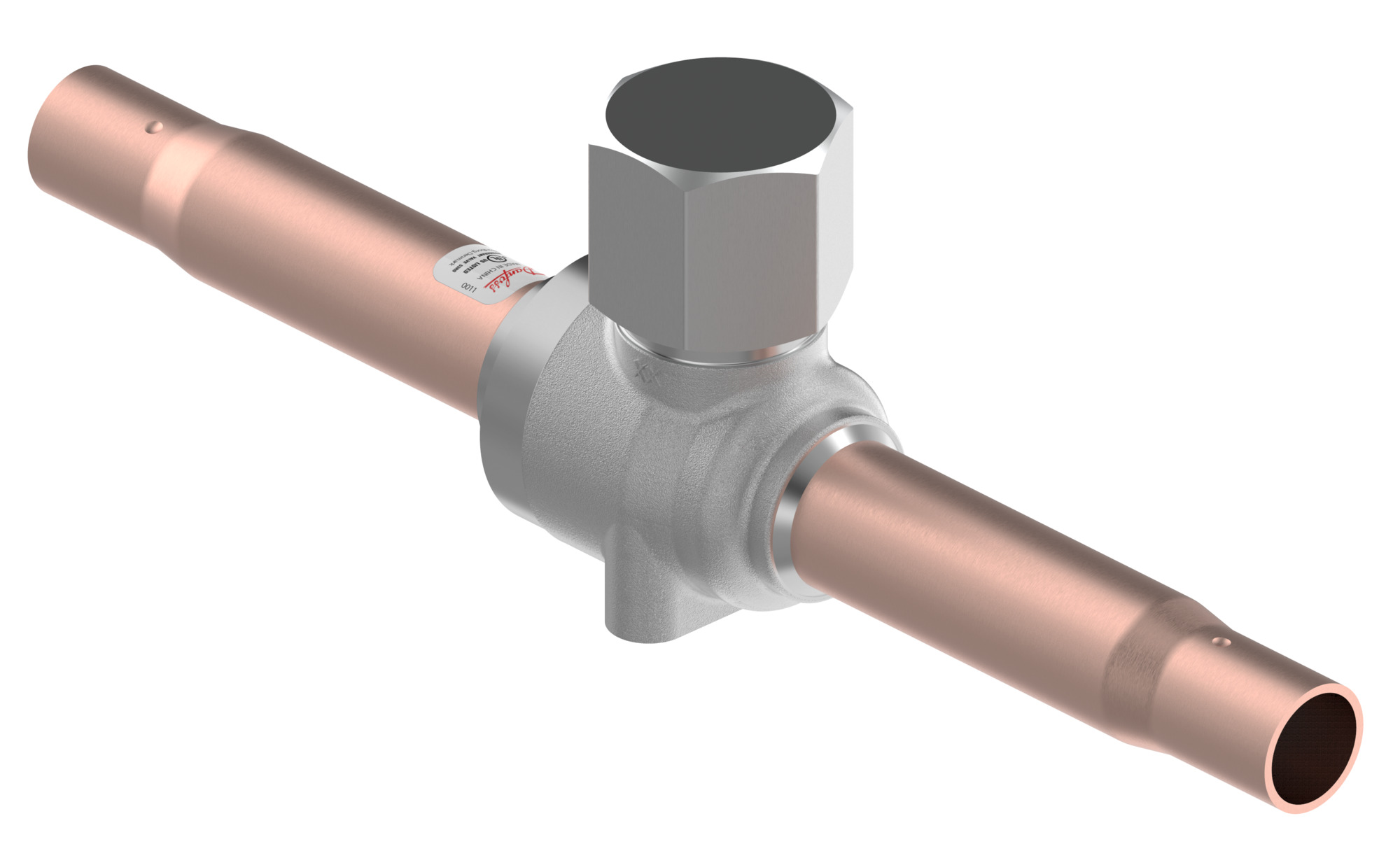

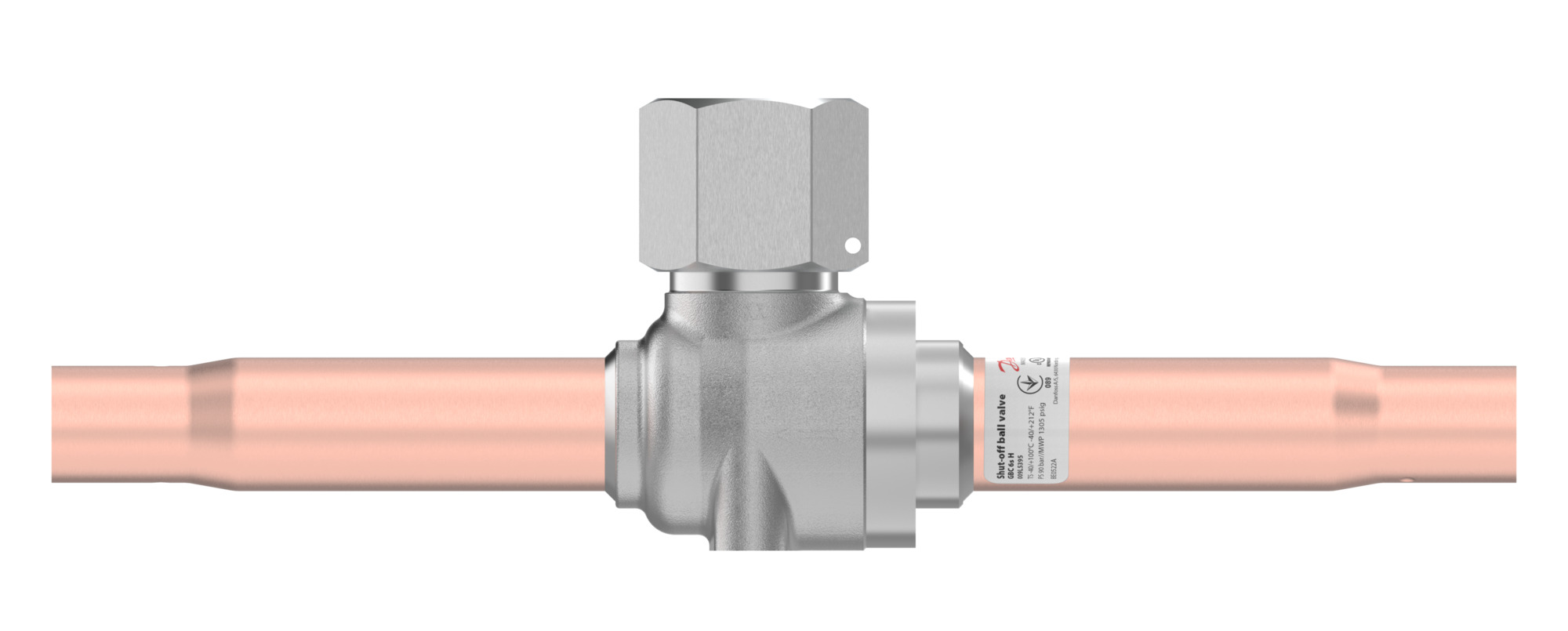

| Product Name Description | Shut-off ball valve |
| Access port | No |
| Approval | C UL US LISTEDLLC CDC TYSKPED |
| Body material | Stainless steel |
| Category | Art. 4, par. 3 |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Connection material | stainless steel SS tube |
| Contains batteries | No |
| Cv value [gal/min] | 8.09 gal/min |
| Direction | Straightway |
| EN13463-3 ignit. source assess | Yes |
| Equipment | Cap w. wire seal |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Flow direction | Bi-flow |
| Flow direction indicator | Embossed 2-way arrow |
| Fluid Group | 2 |
| Inlet connection type | Solder, ODF |
| Inlet size [mm] | 10 mm |
| Kv value [m³/h] | 7 m³/h |
| Max. Working Pressure [bar] | 90 bar |
| Max. Working Pressure [psig] | 1305 psig |
| Outlet connection type | Solder, ODF |
| Outlet size [mm] | 10 mm |
| Packing format | Multi pack |
| Product accessories | BM/GBC valve accessories |
| Quantity per packing format | 30 pc |
| REACH Candidate List substances | No |
| Refrigerants | R744 |
| Serviceable | No |
| Temperature range [°C] [Max] | 100 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 212 °F |
| Temperature range [°F] [Min] | -40 °F |
| UL approved refrigerants | R744 |
| UL evaluated | Yes |
| Proposition 65 | WARNING: Cancer and Reproductive Harmwww.p65warnings.ca.gov |
| Visuals | Document Category |
| Product type | SPARE PART, Type designation: Seal cap, Seal cap |
| Type designation | Schrader valve, Packing format: Industrial pack, Quantity per packing format: 10 |
