Attributes
| Gtin | 5702420012032 |
|---|
Description

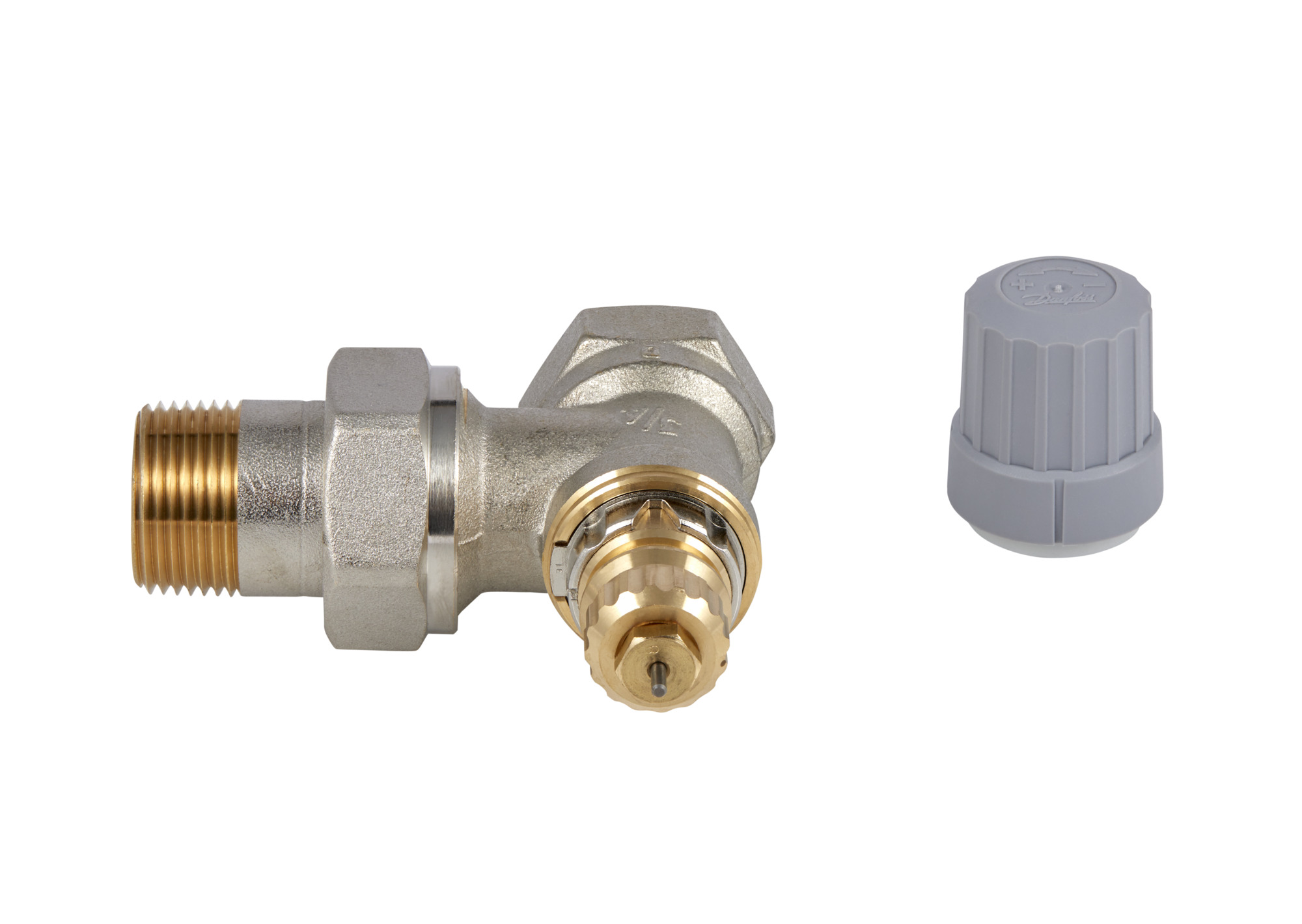

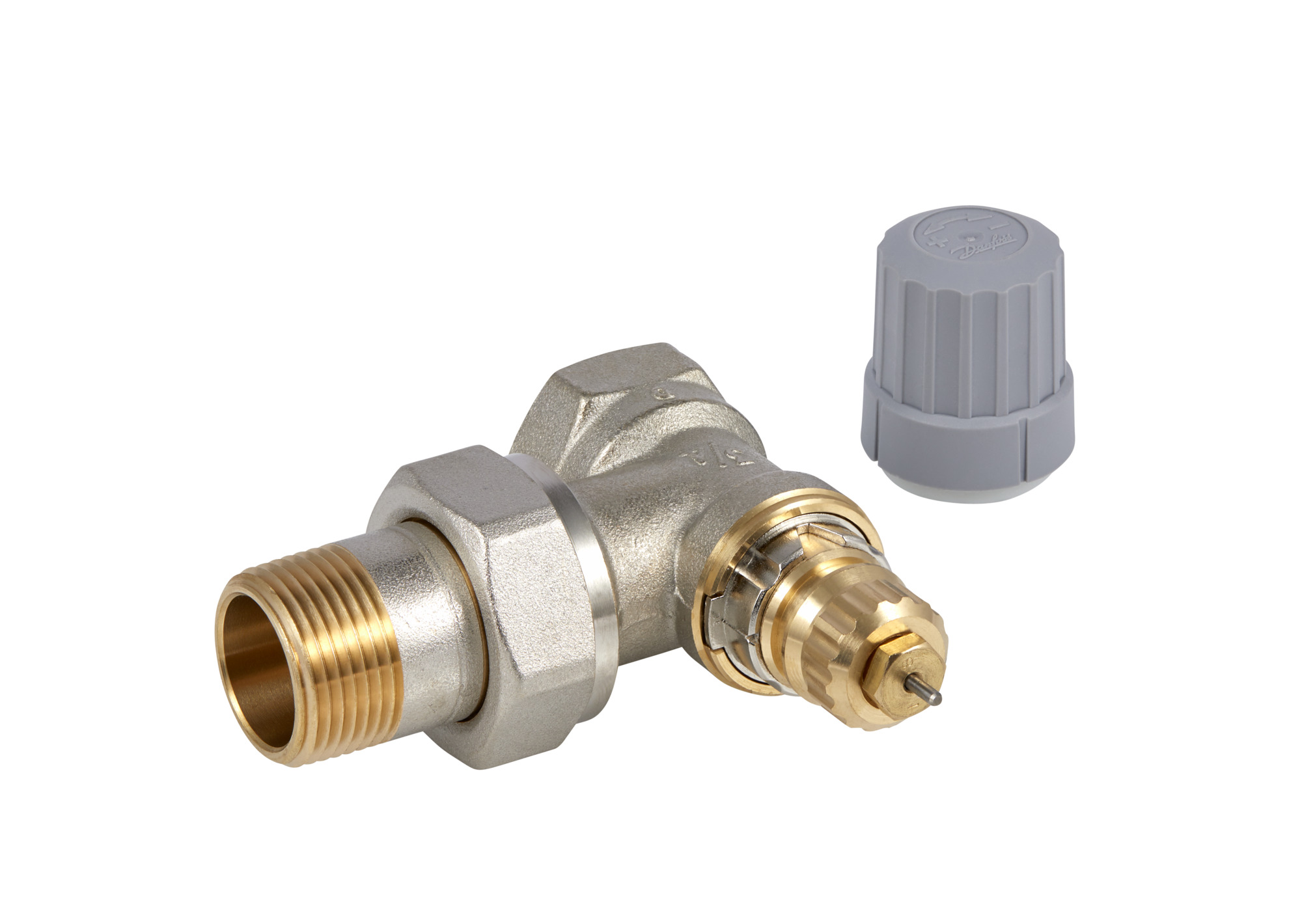

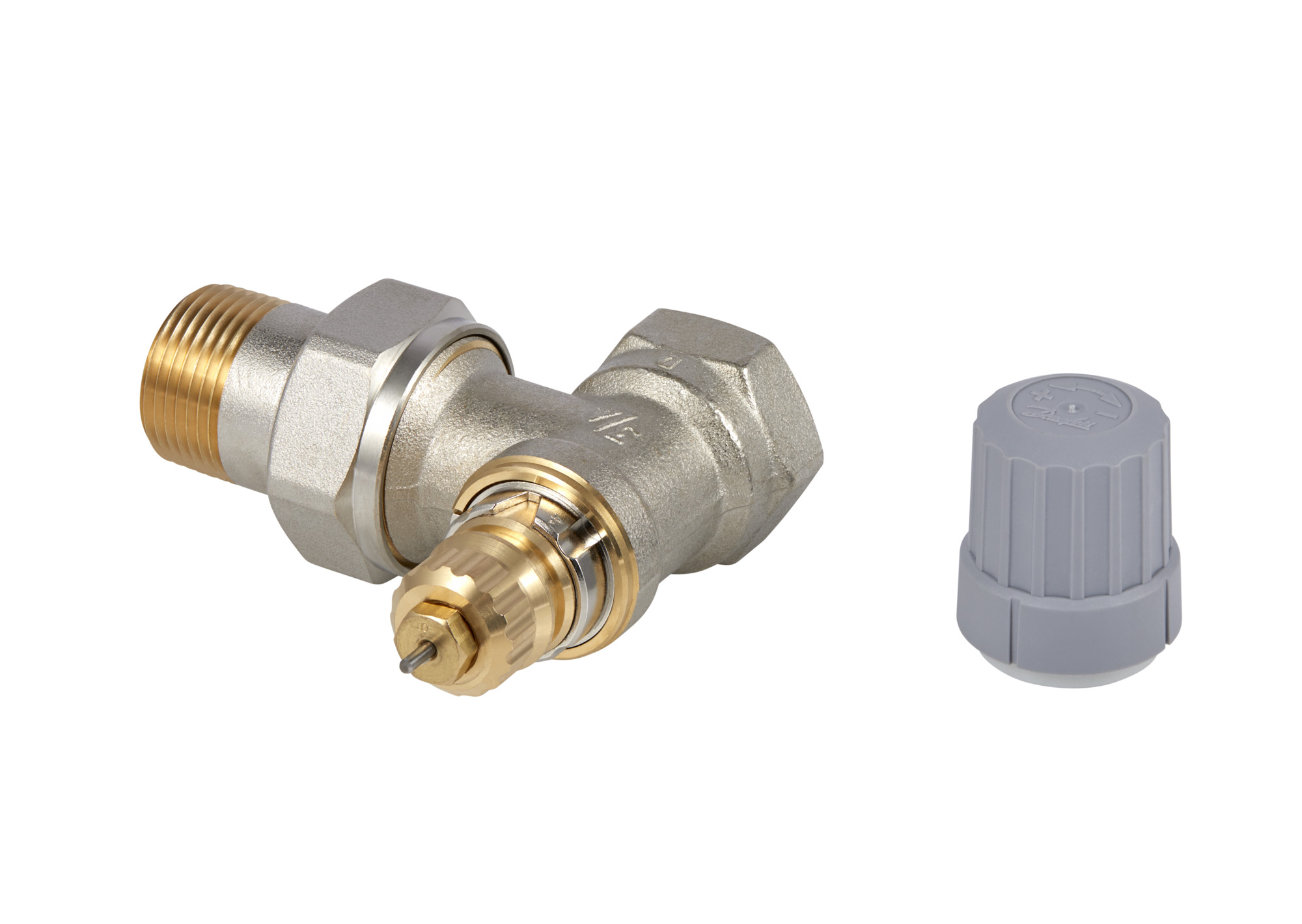

RA2000 3/4" Angle valve, FNPT x MNPT union tailpiece
Specifications
| Quantity | Units of measure |
|---|---|
| Gross weight | 407 Gram |
| Net weight | 407 Gram |
| Volume | 0.854 Liter |
| EAN | 5702420012032 |
| Type | RA2000 |
| Product group | Radiator Valves |
| Application | 2-pipe system |
| CE evaluated | No |
| China RoHS compliance | Out of scope |
| Connection size in | FPT 3/4" |
| Connection size out | MPT 3/4" |
| Connection types | Internal thread |
| Contains batteries | No |
| Description | RA2000 3/4" Angle valve, FNPT x MNPT union tailpiece |
| Design | Angle |
| Differential pressure range [bar] [Max] | 1 bar |
| Differential pressure range [psi] [Max] | 15 psi |
| Dimension standard | Other permitted |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Finish | Nickel plated |
| Flow temperature [°C] [Max] | 120 °C |
| Flow temperature [°F] [Max] | 250 °F |
| Kvs values [m³/h] | 2.7 m³/h |
| Presetting | no |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 6bd35062-e4a8-45ba-8357-b29e2afb0611 |
| SCIP dossier product name | RA-FN Radiator valve 1 |
| Tailpiece type | Union MNPT |
| Test pressure [bar] | 16 bar |
| Test pressure [psi] | 232 psi |
| UL evaluated | No |
| Valve size | ¾" |
| Valve type | Fixed capacity |
| Working pressure [bar] [Max] | 10 bar |
| Working pressure [psi] [Max] | 145 psi |
| Proposition 65 | WARNING: Cancer and Reproductive Harmwww.p65warnings.ca.gov |
| Visuals | Document Category |
| Dismantle tool, For valves | RAV; RA-N; RA-FN; RAVL |
| Accessories, Valves, Gland seal, For valves | RA |
| Accessories, Valve insert, For valves | RA-FN |
