Attributes
| Gtin | 5702421300435 |
|---|
Description

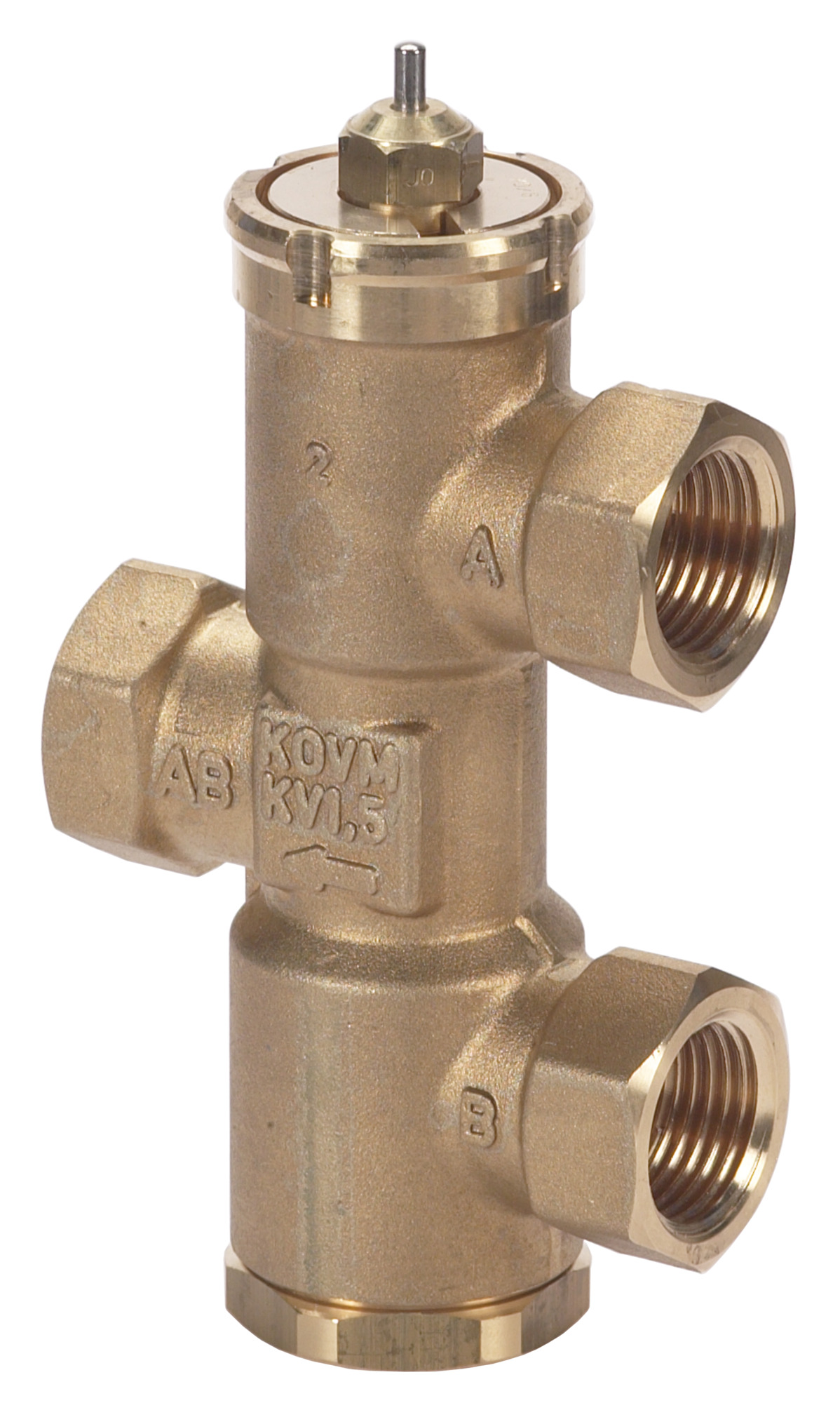

KOV 1/2NPT 140 PB
Specifications
| Quantity | Units of measure |
|---|---|
| Gross weight | 0.648 Kilogram |
| Net weight | 0.648 Kilogram |
| Volume | 0.5 Liter |
| EAN | 5702421300435 |
| Type | KOVM |
| Product group | Motorized control valves |
| Application | District Heating |
| Application alternative VSP | District heating |
| Cavitation factor | 0.5 |
| China RoHS compliance | Out of scope |
| Connection standard | ISO 7/1 |
| Connection types | Internal thread |
| Contains batteries | No |
| Description | KOV 1/2NPT 140 PB |
| Diameter [mm] | 15 mm |
| Differential pressure range [bar] [Max] | 1.6 bar |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow characteristic | Linear |
| Function | Control valve |
| Function 2 | Mixing valve |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 90 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Medium alternative 2 | Circulation water |
| Mounting version | Free |
| Number of ports | 3 |
| Permissible media | District heating/cooling circulation water |
| Pressure class | PN 10 |
| Pressure nominal [bar] | 10 bar |
| Spindle material | Stainless steel 18/8 |
| Spindle position | Normally open |
| Valve body material | Brass W. No 2.0402 |
| Valve cone material | EPDM |
| Valve size | DN 15 |
| Proposition 65 | WARNING: Cancerwww.p65warnings.ca.gov |
| Visuals | Document Category |
| Accessories, Valves, Gland seal, For valves | RAV; FJVR; RAVL |
