Attributes
| Gtin | 5702428890502 |
|---|
Description

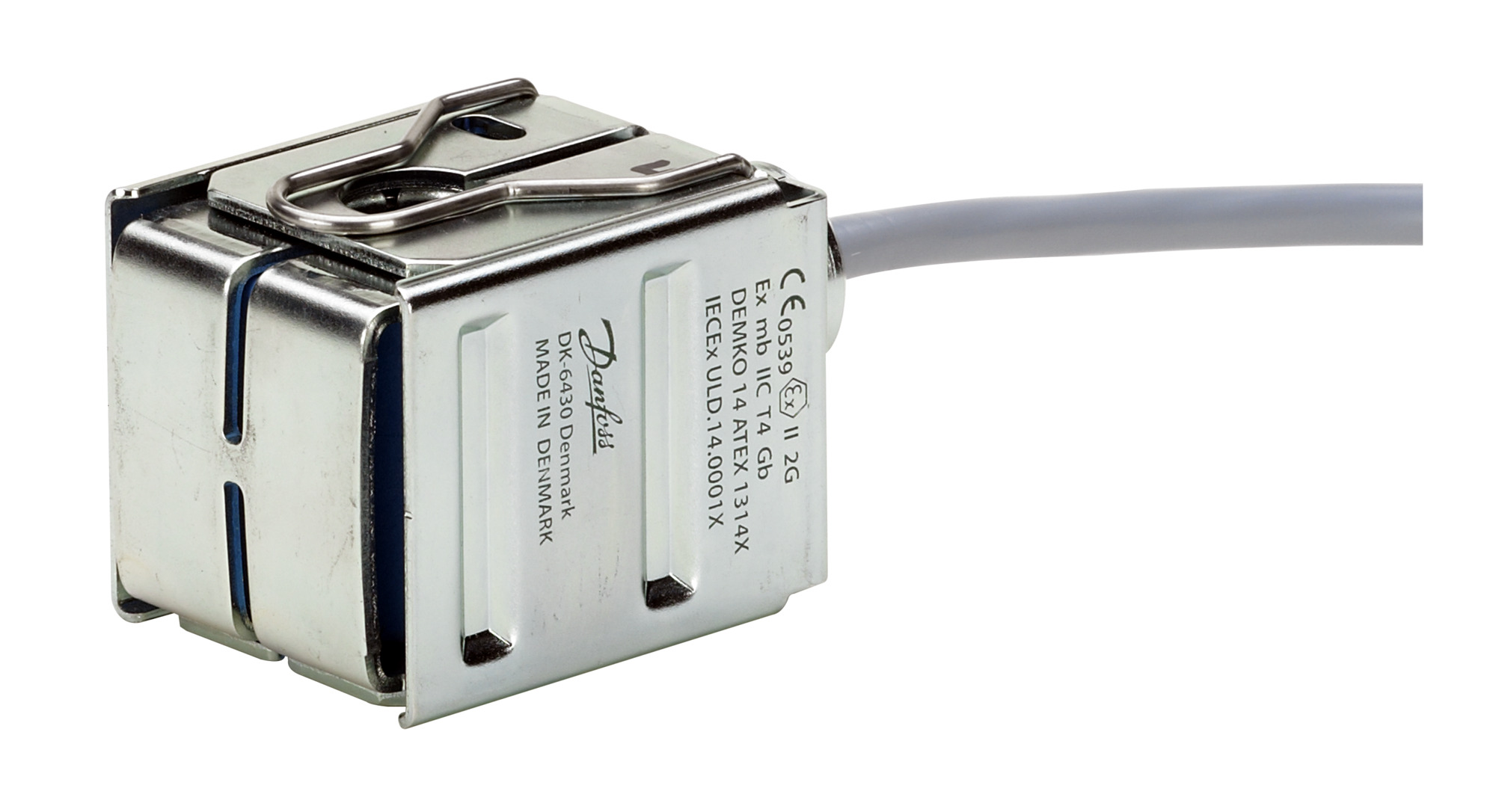

Solenoid coil, Product type: BZ120C, Enclosure rating IP: IP65, Cable length [m]: 9, Coil connection: Cable
Specifications
| Quantity | Units of measure |
|---|---|
| Gross weight | 0.985 Kilogram |
| Net weight | 0.923 Kilogram |
| Volume | 3.391 Liter |
| EAN | 5702428890502 |
| Type | BZ120C |
| Product group | Solenoid valves |
| Product Name Description | Solenoid coil |
| Actuator size | 13.5 mm |
| Ambient temperature range [°C] [max] | 45 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [Max] | 113 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | ATEX - Cat. 2 - Zone 1CCC |
| Cable length [in] | 354 in |
| Cable length [m] | 9 m |
| China RoHS compliance | Out of scope |
| China RoHS exemption clause | No |
| Coil connection | Cable |
| Coil fastening | Clip-on |
| Colour | Blue |
| Conductor area [mm2] | 3 x 0.75 mm2 |
| Contains batteries | No |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical conn. comments | Earth conn. wiring > 4 mm2 |
| Electrical connection | Cable |
| Enclosure rating IP | IP65 |
| Enclosure rating Nema (~) | 4 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| EX Sales text | -40°C < Ta < +45°CII 2G Ex mb IIC T4 Gb |
| Frequency [Hz] | 50/60 Hz |
| In scope of WEEE | Yes |
| Packing format | Multi pack |
| Parts Program name | EV220B 15 - 50EV220B 6 - 22EV224BEV227BEV250B |
| Power consumption 50Hz [VA] | 16 VA |
| Power consumption 60Hz [VA] | 16 VA |
| Power consumption [W] 50Hz | 8 W |
| Power consumption [W] 60Hz | 8.5 W |
| Product accessories | Solenoid coil accessories |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | No |
| Rel. Humidity [% RH] [Max] | 100 % |
| Rel. Humidity [% RH] [min] | 0 % |
| Serviceable | No |
| Supply voltage 50Hz Max [V] | 110 V |
| Supply voltage 60Hz Max [V] | 120 V |
| Type designation | BZ120C |
| Used for product | EV220B 15 - 50: not NO valves |
| Proposition 65 | WARNING: Cancer and Reproductive Harmwww.p65warnings.ca.gov |
| Visuals | Document Category |
| Solenoid coil, Product type | BZ120C, Enclosure rating IP: IP65, Cable length [m]: 9, Coil connection: Cable |
