Attributes
| Gtin | 5702428519137 |
|---|
Description
Electrical connection: Terminal box, Supply voltage [V] AC: 240, Enclosure rating IP: IP67
Specifications
| Quantity | Units of measure |
|---|---|
| Gross weight | 0.336 Kilogram |
| Net weight | 0.323 Kilogram |
| Volume | 0.311 Liter |
| EAN | 5702428519137 |
| Type | BE240AS |
| Product group | Solenoid valves |

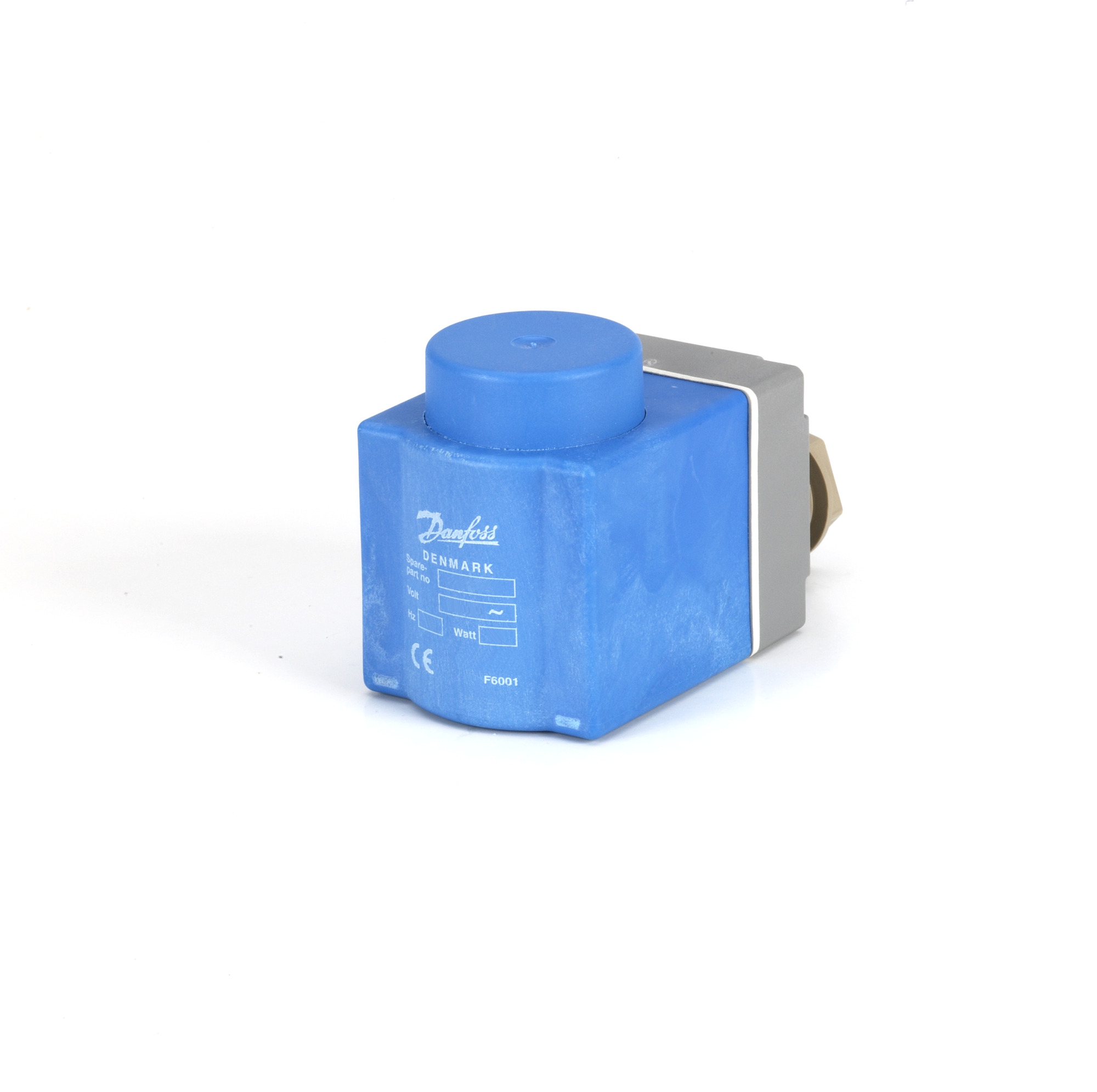

| Product Name Description | Solenoid coil |
| Actuator size | 13.5 mm |
| Ambient temperature range [°C] [max] | 80 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [Max] | 175 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | CEEACLLC CDC TYSK |
| Cable diameter [mm] [Max] | 11 mm |
| Cable diameter [mm] [Min] | 6 mm |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| China RoHS exemption clause | No |
| Coil connection | Connection box |
| Coil design standard | VDE 0580 |
| Coil fastening | Clip-on |
| Coil winding insulation class | Class H to IEC 85 |
| Colour | Blue |
| Compliance | EN 60730-1 |
| Conductor area [mm2] | 0.75 - 1.5 mm2 |
| Contains batteries | No |
| Duty rating | Continuous |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | Terminal box |
| Electrical connection size | Pg 13.5 |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Frequency [Hz] | 50 Hz |
| Identical product | 018F8702 |
| In scope of WEEE | Yes |
| Packing format | Multi pack |
| Parts Program name | EV210BEV212BEV220B 15 - 50EV220B 6 - 22EV220B 65 - 100EV222BEV224BEV227BEV250BEV251BRead more |
| Power consumption 50Hz [VA] | 19 VA |
| Power consumption [W] 50Hz | 11 W |
| Product accessories | Solenoid coil accessories |
| Quantity per packing format | 32 pc |
| REACH Candidate List substances | No |
| Rel. Humidity [% RH] [Max] | 100 % |
| Rel. Humidity [% RH] [min] | 0 % |
| Serviceable | No |
| Spare part number | 018F6177 |
| Supply voltage 50Hz Max [V] | 240 V |
| Supply voltage [V] AC | 240 V |
| Type designation | BE240AS |
| Proposition 65 | WARNING: Cancer and Reproductive Harmwww.p65warnings.ca.gov |
| Visuals | Document Category |
| Product type | SPARE PART, Used for product: IP67 coils, Type designation: Terminal box, Terminal box |
