Attributes
| Gtin | 5702428026277 |
|---|
Description
Electrical connection: Terminal box, null: 48, Enclosure rating IP: IP67
Specifications
| Quantity | Units of measure |
|---|---|
| Gross weight | 0.598 Kilogram |
| Net weight | 0.574 Kilogram |
| Volume | 0.582 Liter |
| EAN | 5702428026277 |
| Type | BG048DS |
| Product group | Solenoid valves |

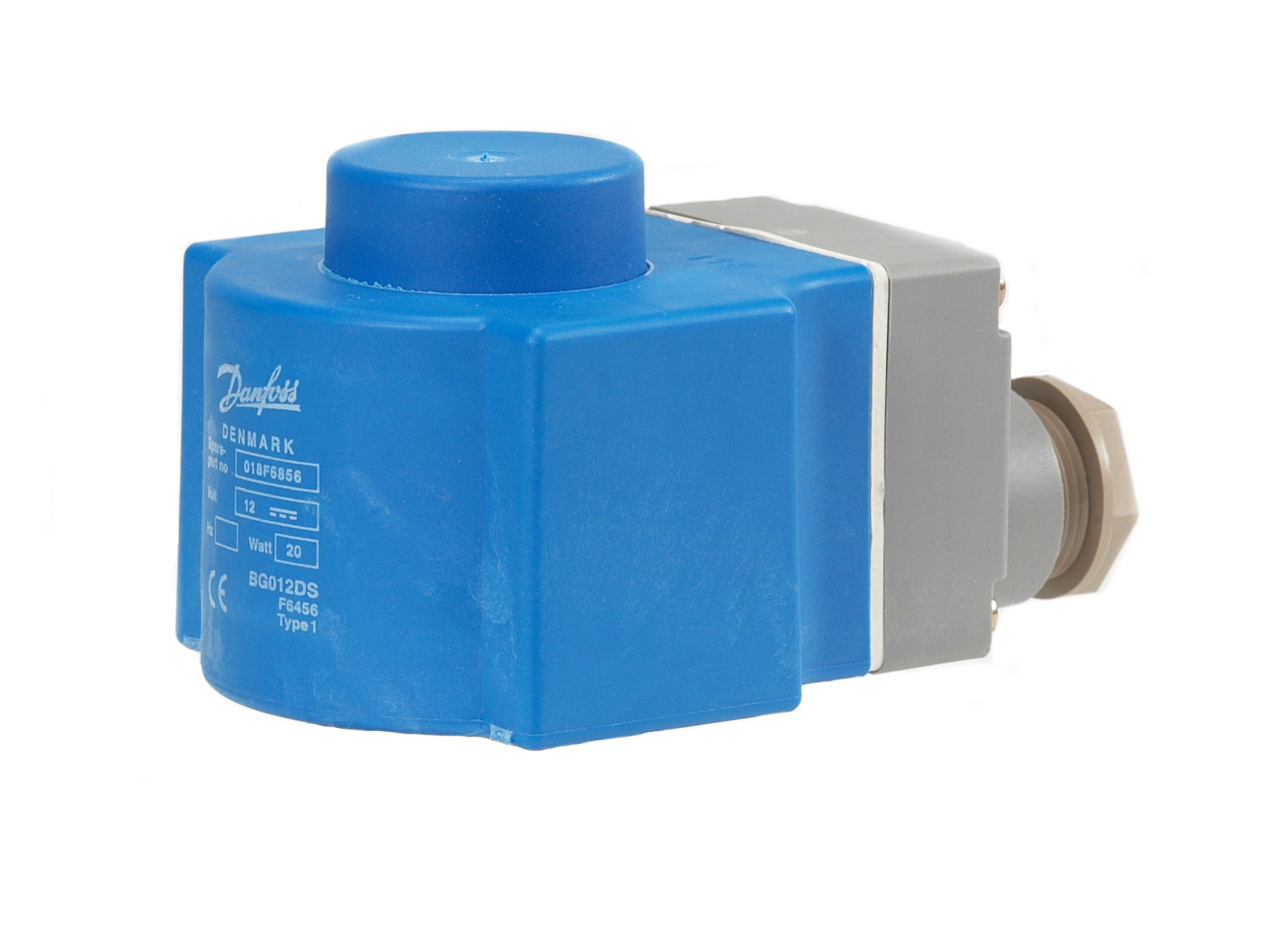

| Product Name Description | Solenoid coil |
| Actuator size | 13.5 mm |
| Ambient temperature range [°C] [max] | 50 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [Max] | 120 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | CEEACLLC CDC TYSK |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| China RoHS exemption clause | No |
| Coil connection | Connection box |
| Coil design standard | VDE 0580 |
| Coil fastening | Clip-on |
| Coil type | I |
| Coil winding insulation class | Class H to IEC 85 |
| Colour | Blue |
| Compliance | EN 60730-1 |
| Contains batteries | No |
| Duty rating | Continuous |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | Terminal box |
| Electrical connection size | Pg 13.5 |
| Electrical connector | Screwed cable entry |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| In scope of WEEE | Yes |
| Packing format | Multi pack |
| Parts Program name | EV210BEV212BEV220B 15 - 50EV220B 6 - 22EV220B 65 - 100EV222BEV224BEV250B |
| Power consumption [W] DC | 19 W |
| Product accessories | Solenoid coil accessories |
| Quantity per packing format | 24 pc |
| REACH Candidate List substances | No |
| Rel. Humidity [% RH] [Max] | 100 % |
| Rel. Humidity [% RH] [min] | 0 % |
| SCIP dossier product name | Solenoid coils |
| Serviceable | No |
| Spare part number | 018F6859 |
| Supply voltage [V] DC | 48 V |
| Type designation | BG048DS |
| Proposition 65 | WARNING: Cancer and Reproductive Harmwww.p65warnings.ca.gov |
