Attributes
| Gtin | 5715162441602 |
|---|
Description

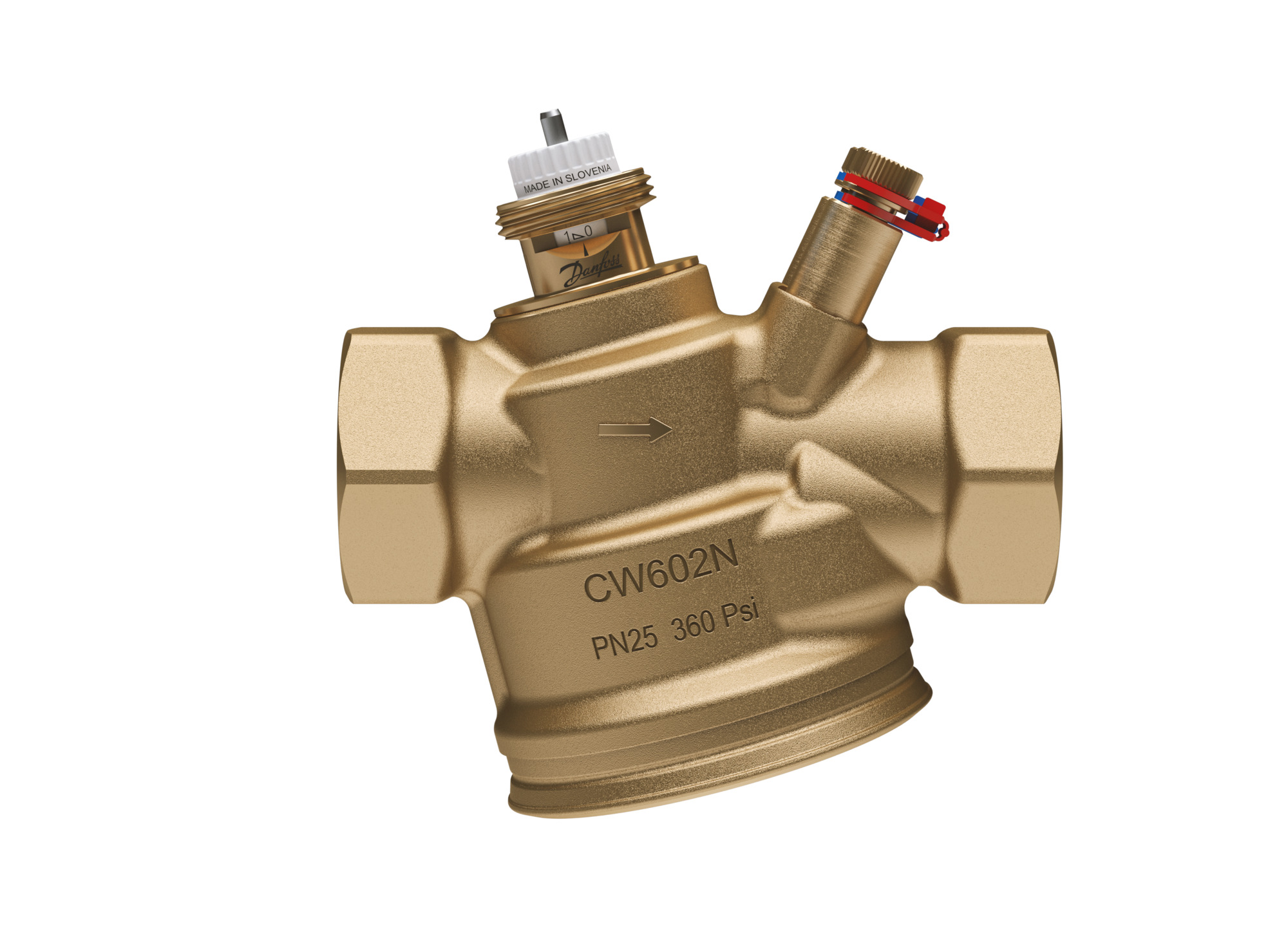

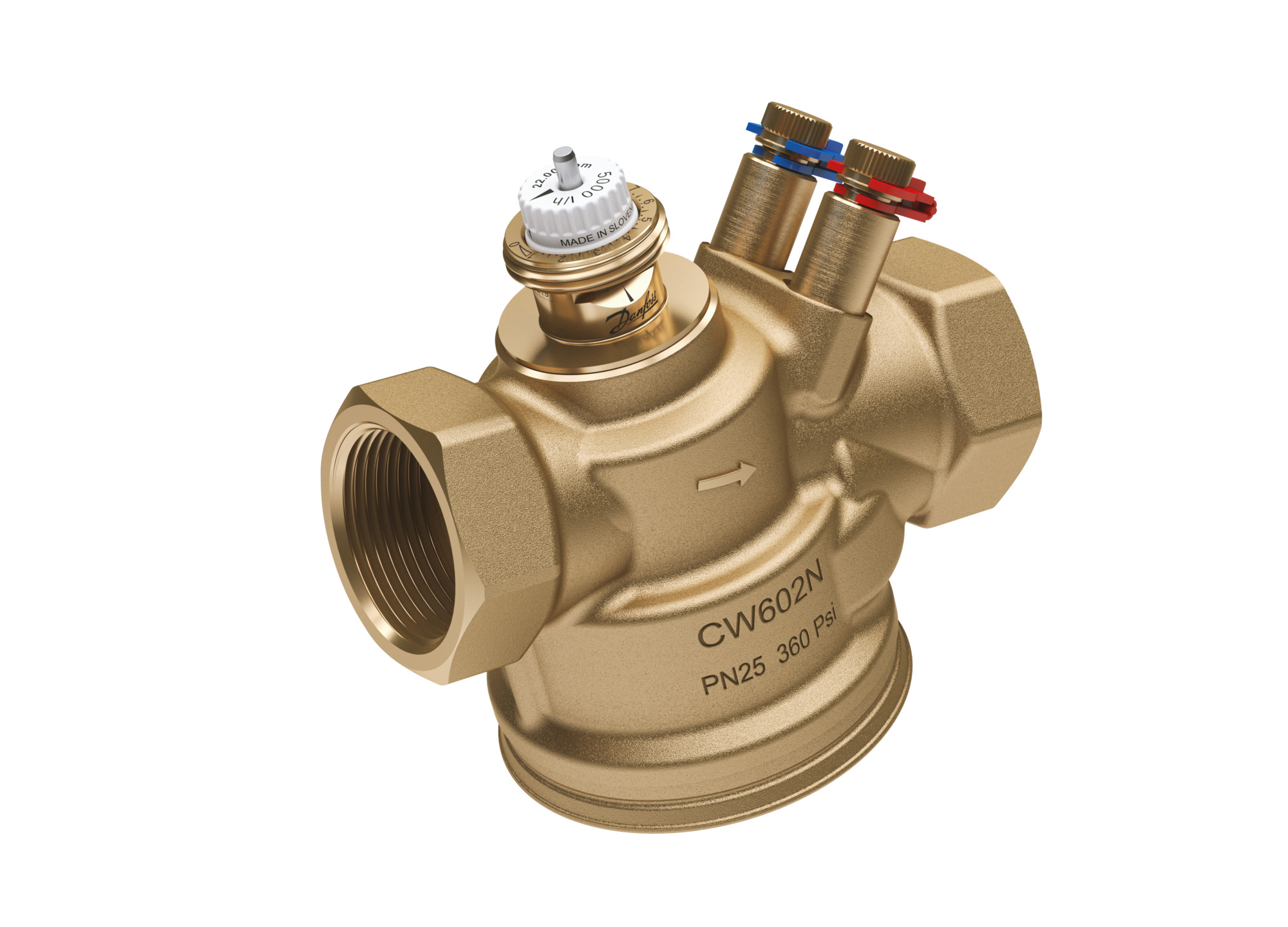

AB-QM, DN 32 HF, with test plugs, internal thread, PN25, pressure independent balancing and control valve
Specifications
| Quantity | Units of measure |
|---|---|
| Gross weight | 1.794 Kilogram |
| Net weight | 1.67 Kilogram |
| Volume | 3.225 Liter |
| EAN | 5715162441602 |
| Type | AB-QM |
| Product group | Pressure independent balancing and control valves |
| Actuator connection | M30 x 1.5 |
| China RoHS compliance | Out of scope |
| Connection types | Internal thread ISO 7/1Rp 1 ¼ |
| Contains batteries | No |
| Description | AB-QM, DN 32 HF, with test plugs, internal thread, PN25, pressure independent balancing and control valve |
| Differential pressure [kPa] [Max] | 600 KPa |
| Differential pressure [kPa] [Min] | 30 KPa |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow limitation | Yes |
| Flow nominal [m³/h] | 5 m³/h |
| Leakage rate with recommended actuator (IEC 60534-4) | Class III |
| Media temperature [°C] [Max] | 95 °C |
| Media temperature [°C] [Min] | -20 °C |
| Mounting position | Supply / return pipe |
| Pressure class | PN 25 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 54e972d3-3b3b-47b6-b954-706d7127f196 |
| SCIP dossier product name | AB QM DN32 |
| Setting range [%] [max] | 100 % |
| Setting range [%] [min] | 10 % |
| Setting scale | Yes |
| Shut-off function | Yes |
| Shut-off leakage rate (ISO 5208) | Rate A |
| Storage and Transport temperature [°C] [Max] | 70 °C |
| Storage and Transport temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 4 mm |
| Test plugs | With test plugs |
| Valve body material | DZR Brass (CW 602N) |
| Valve size | High flowDN 32 HF |
| Version | AB-QM 4.0 |
| Proposition 65 | WARNING: Cancer and Reproductive Harmwww.p65warnings.ca.gov |
