Attributes
| Gtin | 5702422038276 |
|---|
Description
Connection material: Steel, Weave fineness [µm]: 150, Max. Working Pressure [psig]: 406
Specifications
| Quantity | Units of measure |
|---|---|
| Gross weight | 2.84 Kilogram |
| Net weight | 2.8 Kilogram |
| Volume | 2.048 Liter |
| EAN | 5702422038276 |
| Type | FA 20 |
| Product group | Strainers |

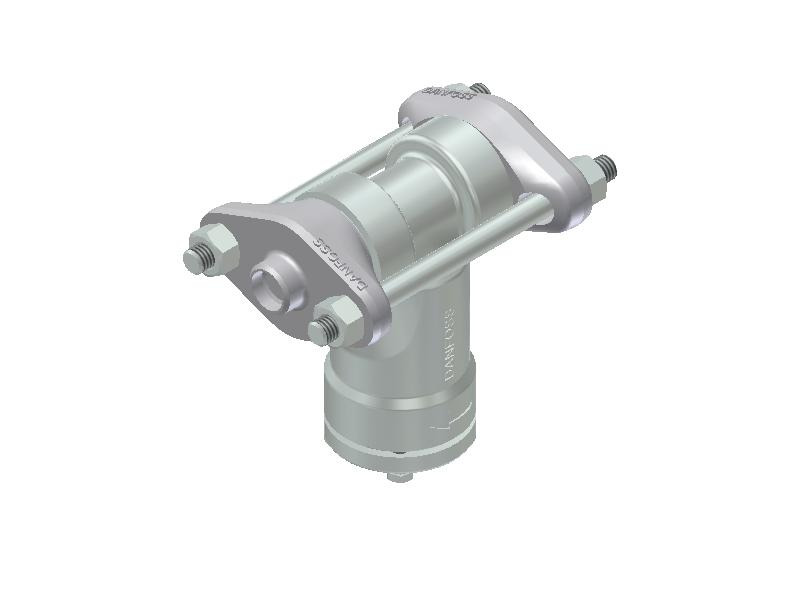

| Product Name Description | Strainer, non welded |
| Category | Art. 4, par. 3 |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Connection material | Steel |
| Connection size [in] | 3/4 in |
| Connection size [mm] | 20 mm |
| Connection standard | EN 10220 |
| Connection type | Butt weld |
| Contains batteries | No |
| Cv value [gal/min] | 8.58 gal/min |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Fluid Group | 1 |
| Kv value [m³/h] | 7.4 m³/h |
| Max. test pressure [bar] | 42 bar |
| Max. test pressure [psig] | 609 psig |
| Max. Working Pressure [bar] | 28 bar |
| Max. Working Pressure [psig] | 406 psig |
| Packing format | Multi pack |
| Parts included | BoltsGasketsScrewsFlanges |
| Product description | Strainer |
| Quantity per packing format | 10 pc |
| REACH Candidate List substances | No |
| Refrigerants | R22R113R114R1233zd(E)R1234yfR1234ze(E)R125R1336mzz(Z)R134aR152aR227eaR23R236faR32R401AR402AR402BR404AR407AR407BR407CR407FR407HR408AR409AR410AR413AR417AR421AR422AR422BR422DR427AR438AR444BR447AR448AR449AR449BR450AR452AR452BR454AR454BR454CR455AR502R503R507AR513AR717Read more |
| Staybolts size | M12 x 160 |
| Strainer area [cm2] | 60 cm² |
| Strainer area [in2] | 9.3 in² |
| Strainer volume [cm3] | 145 cm³ |
| Strainer volume [in3] | 8.85 in³ |
| Temperature range [°C] [Max] | 140 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 284 °F |
| Temperature range [°F] [Min] | -58 °F |
| Used for product comments | Fitting in pipelines |
| Weave fineness [Mesh] | 100 Mesh |
| Weave fineness [µm] | 150 µm |
| Proposition 65 | WARNING: Cancer and Reproductive Harmwww.p65warnings.ca.gov |
| Visuals | Document Category |
| Used for product | FA 20 |
| Product type | SPARE PART, Used for product: FA 20, Type designation: Seal Kit |
