Attributes
| Gtin | 5702428559270 |
|---|
Description
Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF
Specifications
| Gross weight | 0.321 Kilogram |
|---|---|
| Net weight | 0.27 Kilogram |
| Volume | 0.655 Liter |
| EAN | 5702428559270 |
| Type | GBCT 6s |
| Product group | Shut-off and regulating valves |

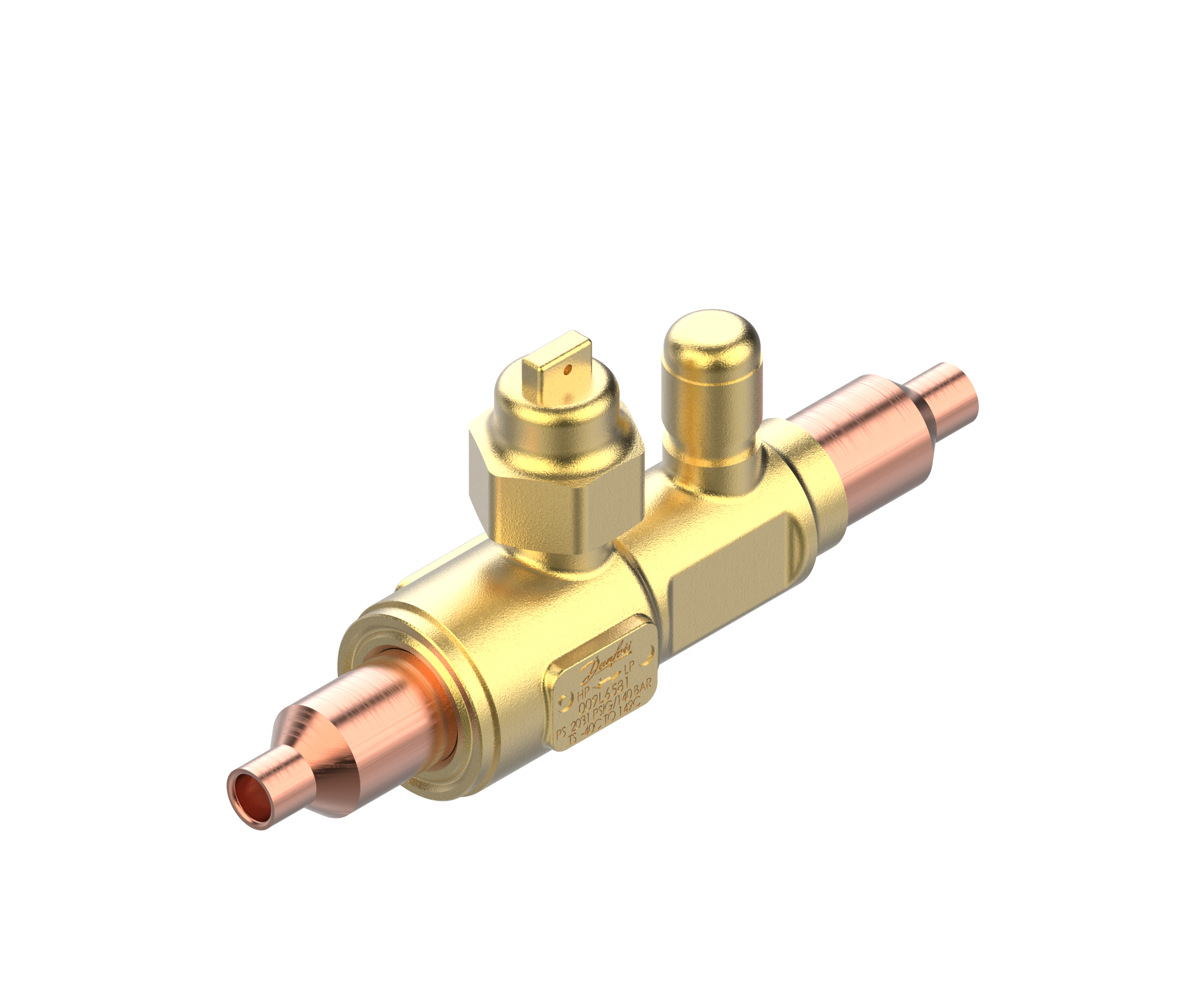

| Product Name Description | Shut-off ball valve |
| Access port | Yes |
| Approval | C UL US LISTEDEAC |
| Body material | Brass |
| CE evaluated | Yes |
| China RoHS compliance | Yes with exemptions |
| Connection material | Copper |
| Contains batteries | No |
| Cv value [gal/min] | 1 gal/min |
| Direction | Straightway |
| EN13463-3 ignit. source assess | Yes |
| Equipment | Cap w. wire seal |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow direction | Bi-flow |
| Flow direction indicator | Laser engraved 2-way arrow |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 1/4 in |
| Kv value [m³/h] | 0.9 m³/h |
| Max. Working Pressure [bar] | 140 bar |
| Max. Working Pressure [psig] | 2031 psig |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 1/4 in |
| Packing format | Multi pack |
| Parts included | Schrader valve |
| Quantity per packing format | 30 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R744 |
| SCIP dossier no. | ae4c848e-ac8e-4a0c-9023-5e27113a8088 |
| SCIP dossier product name | GBC CO2 140 bar 6s -22s 10D - 21D |
| Temperature range [°C] [Max] | 149 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 300 °F |
| Temperature range [°F] [Min] | -40 °F |
| UL approved refrigerants | R744 |
| UL evaluated | Yes |
