Attributes
| Gtin | 5715162594612 |
|---|
Description

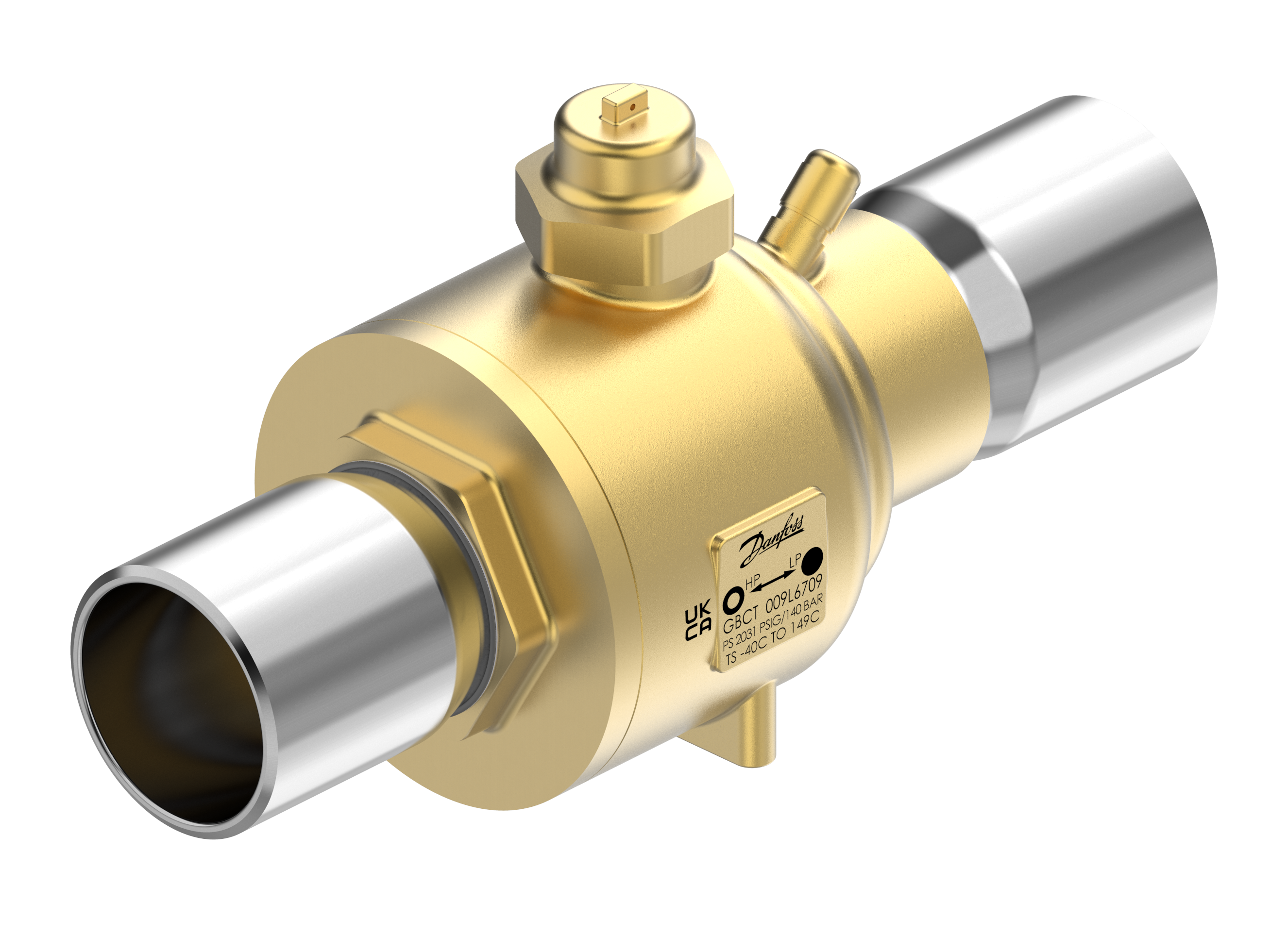

Inlet connection type: Butt-weld, Outlet connection type: Butt-weld, Inlet size [mm]: 60.3, Outlet size [mm]: 60.3
Specifications
| Gross weight | 6.409 Kilogram |
|---|---|
| Net weight | 6.01 Kilogram |
| Volume | 8.03 Liter |
| EAN | 5715162594612 |
| Type | GBCT 60 D |
| Product group | Shut-off and regulating valves |
| Product Name Description | Shut-off ball valve |
| Access port | Yes |
| Approval | C UL US LISTEDCEEAC |
| Body material | Brass |
| CE evaluated | Yes |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.27.3 |
| Connection material | Stainless steel |
| Contains batteries | No |
| Cv value [gal/min] | 234 gal/min |
| Direction | Straightway |
| EN13463-3 ignit. source assess | Yes |
| Equipment | Cap w. wire seal |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(b)6(c) |
| Flow direction | Bi-flow |
| Flow direction indicator | Laser engraved 2-way arrow |
| Inlet connection type | Butt-weld |
| Inlet size [mm] | 60.3 mm |
| Kv value [m³/h] | 202 m³/h |
| Max. Working Pressure [bar] | 140 bar |
| Max. Working Pressure [psig] | 2031 psig |
| Outlet connection type | Butt-weld |
| Outlet size [mm] | 60.3 mm |
| Packing format | Multi pack |
| Panel mounting option | M6 × 1.0 (2 PC) |
| Parts included | Schrader valve |
| Quantity per packing format | 2 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R744 |
| SCIP dossier no. | cd93018f-68fe-4653-a4ff-756a31c208f4 |
| SCIP dossier product name | GBC CO2 140 bar 28s - 54s 27D - 60D |
| Temperature range [°C] [Max] | 149 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 300 °F |
| Temperature range [°F] [Min] | -40 °F |
| UL approved refrigerants | R744 |
| UL evaluated | Yes |
