Attributes
| Gtin | 5702428840996 |
|---|
Description
Electrical connection: Conduit Hub, Supply voltage [V] AC: 110, Enclosure rating IP: IP54
Specifications
| Quantity | Units of measure |
|---|---|
| Gross weight | 0.438 Kilogram |
| Net weight | 0.325 Kilogram |
| Volume | 0.826 Liter |
| EAN | 5702428840996 |
| Type | BX120CS |
| Product group | Solenoid valves |

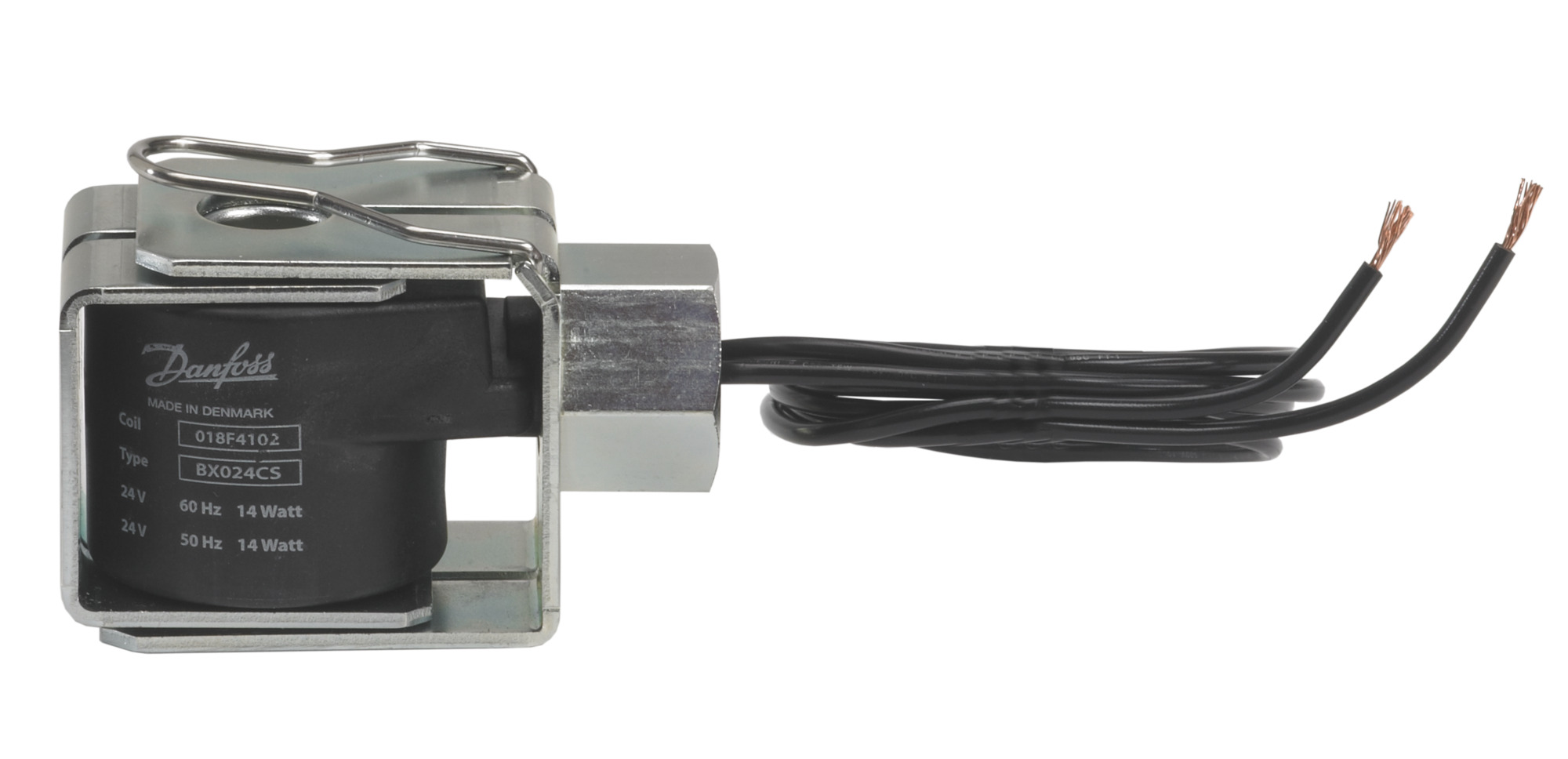

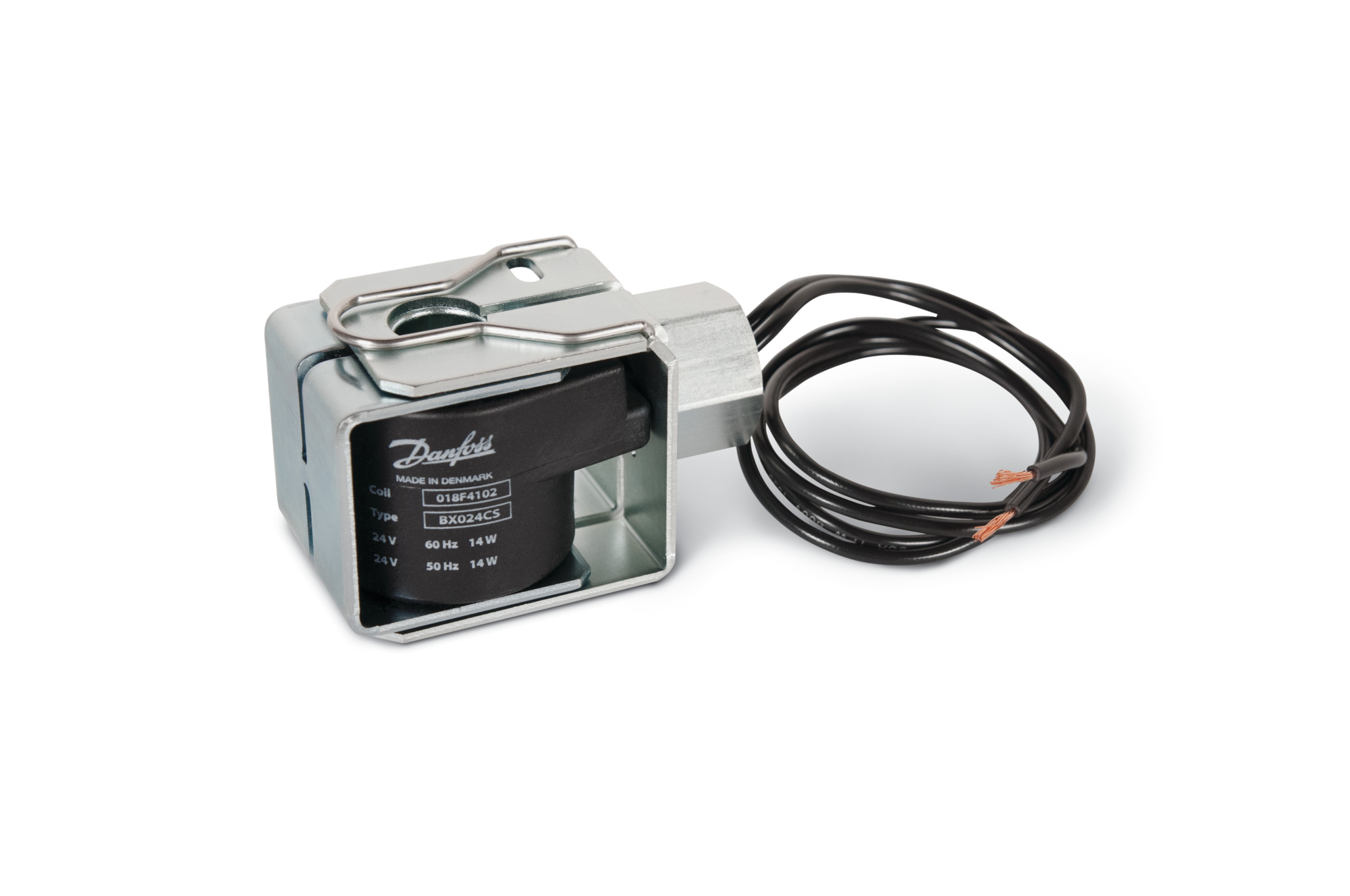

| Product Name Description | Solenoid coil |
| Actuator size | 13.5 mm |
| Ambient temperature range [°C] [max] | 50 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [Max] | 120 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | C UL US LISTEDEACLLC CDC TYSK |
| Cable length [in] | 98 in |
| Cable length [m] | 2.5 m |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Coil connection | 1/2 in Conduit Hub |
| Coil design standard | UL 429 |
| Coil fastening | Clip-on |
| Coil winding insulation class | Class H to IEC 85 |
| Colour | Black |
| Compliance | UL 429 |
| Contains batteries | No |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical conn. comments | Flying leads |
| Electrical connection | Conduit Hub |
| Electrical connection size | 1/2 in |
| Electrical connection standard | UL50E CLASS 4 |
| Enclosure rating IP | IP54 |
| Enclosure rating Nema (~) | 4 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Frame design | Ext. metal frame |
| Frequency [Hz] | 50/60 Hz |
| In scope of WEEE | Yes |
| Packing format | Multi pack |
| Parts Program name | EV210BEV215BEV220B 15 - 50EV220B 6 - 22EV225BEV245BEV250B |
| Pollution degree | 3 |
| Power consumption 50Hz [VA] | 29 VA |
| Power consumption 60Hz [VA] | 29 VA |
| Power consumption [W] 50Hz | 16 W |
| Power consumption [W] 60Hz | 15 W |
| Product accessories | Solenoid coil accessories |
| Quantity per packing format | 24 pc |
| REACH Candidate List substances | No |
| Rel. Humidity [% RH] [Max] | 97 % |
| Rel. Humidity [% RH] [min] | 0 % |
| Rel. Humidity conditions | Non-condensation |
| Serviceable | No |
| Spare part number | 018F4115 |
| Supply voltage 50Hz Max [V] | 110 V |
| Supply voltage 60Hz Max [V] | 120 V |
| Supply voltage 60Hz Min [V] | 110 V |
| Supply voltage [V] AC | 110 V |
| Type designation | BX120CS |
| UL approval file name | MH29671 |
| UL evaluated | Yes |
| Proposition 65 | WARNING: Cancer and Reproductive Harmwww.p65warnings.ca.gov |
| Visuals | Document Category |
