Attributes
| Gtin | 5702428519250 |
|---|
Description
Temperature range [°F]: 23 - 86, Reset function: Auto, Contact function: SPDT, Sensor type: Remote bulb, Enclosure rating IP: IP66
Specifications
| Quantity | Units of measure |
|---|---|
| Gross weight | 0.982 Kilogram |
| Net weight | 0.862 Kilogram |
| Volume | 2.685 Liter |
| EAN | 5702428519250 |

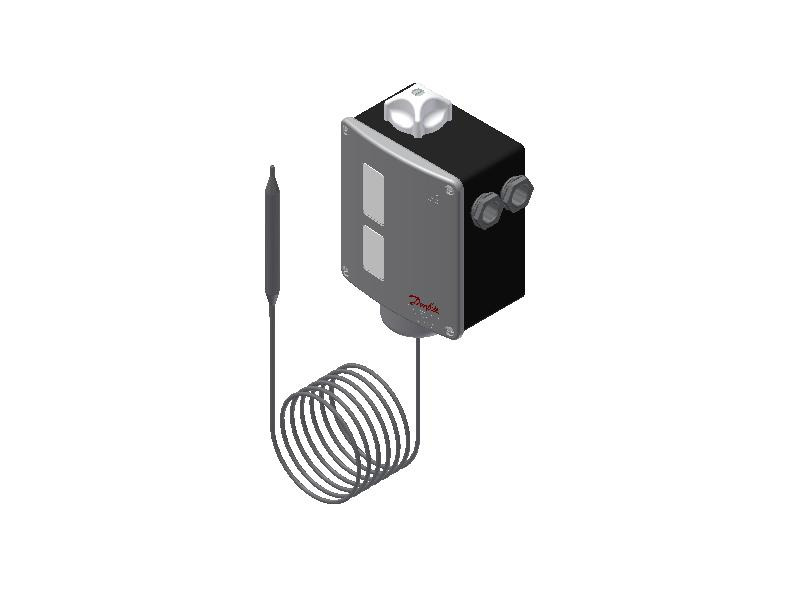

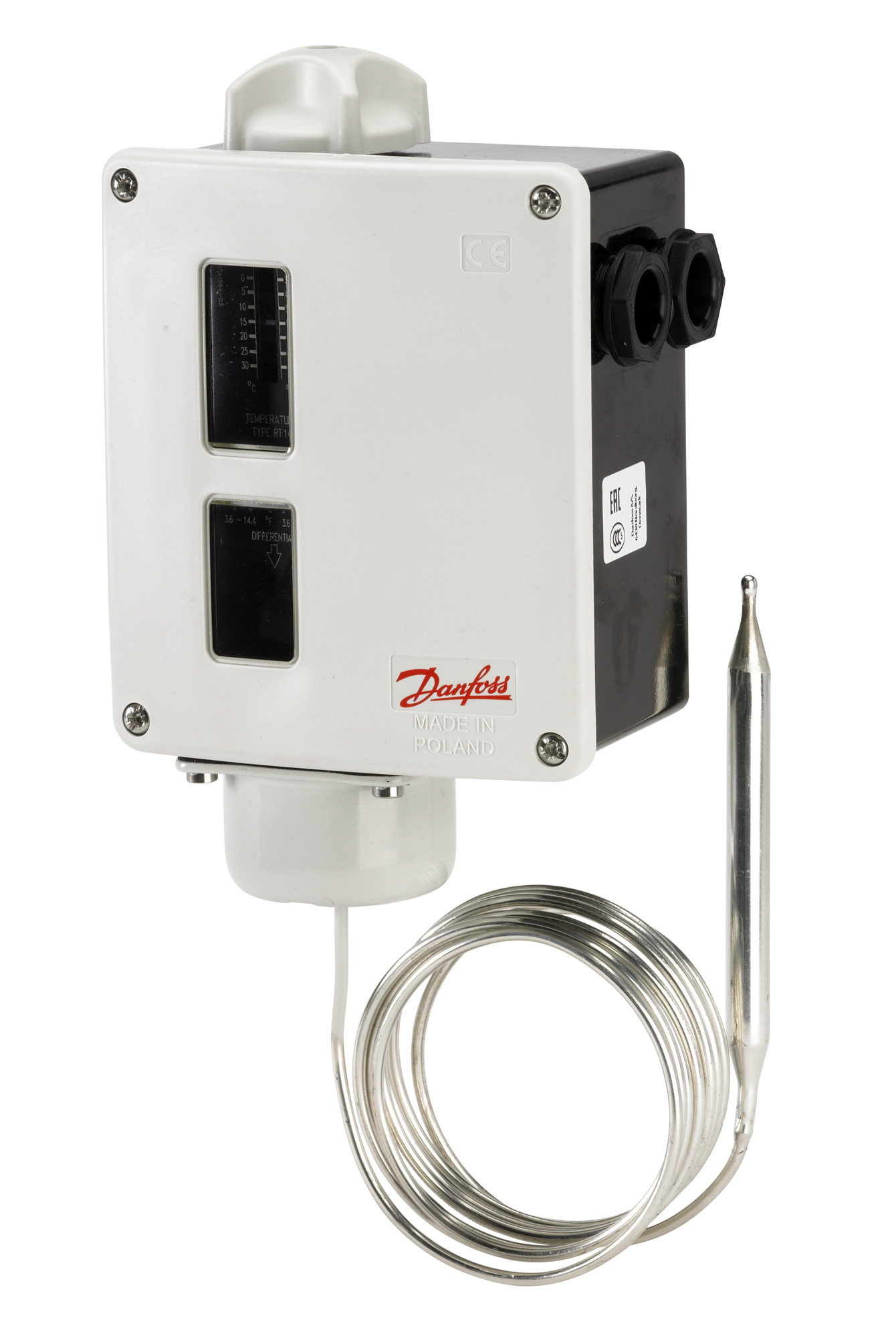

| Type | RT14 |
| Product group | Switches and thermostats |
| Product Name Description | Thermostat |
| Ambient temperature range [°C] [max] | 70 °C |
| Ambient temperature range [°C] [min] | -50 °C |
| Ambient temperature range [°F] [Max] | 158 °F |
| Ambient temperature range [°F] [Min] | -58 °F |
| Approval | CCCCECMIMEACGLLLC CDC EURO-TYSKLVDNKKRMRSRoHSRoHS ChinaTYSKRead more |
| Cap. tube length fraction [in] | 78 3/4 in |
| Capillary tube length [mm] | 2000 mm |
| CE evaluated | Yes |
| Charge type | Adsorption |
| China RoHS compliance | Yes |
| Contact function | SPDT |
| Contact rating | AC15=3 A, 400 VAC1=10 A, 400 VAC3=4 A, 400 VDC13=12 W, 220 VLR=28 A, 400 V |
| Contains batteries | No |
| Diff. @ Max. range setting[°C] [Max] | 10 °C |
| Diff. @ Max. range setting[°C] [Min] | 2 °C |
| Diff. @ Min. range setting[°C] [Max] | 8 °C |
| Diff. @ Min. range setting[°C] [Min] | 2 °C |
| Differential type | Adjustable |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | 2xPg 13.5 |
| Electrical connection standard | DIN 40430 |
| Electrical spec. standard | EN 60947-4/-5 |
| EN 60947 electrical properties | Insulation: 400VPollution degree: 3Rated impulse voltage: 4 kVShort circuit prot, fuse: 10A |
| EN 60947 wiring properties | Flex, ferrules: 0.2-1.5 mm2Flex, no ferrules: 0.2-2.5 mm2Solid/stranded: 0.2-2.5 mm2 |
| Enclosure rating IP | IP66 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Max. sensor temperature [°C] | 150 °C |
| Max. sensor temperature [°F] | 302 °F |
| Other RoHS documentation | Saudi Arabia RoHS |
| Packing format | Multi pack |
| Product accessories | Switches accessories |
| Product description | Thermostat |
| Quantity per packing format | 15 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Reset function | Auto |
| SCIP dossier no. | c4c20ce6-4a07-4caa-9394-1e7d8b13ffec |
| SCIP dossier product name | RT Thermo & RT Diff. Thermo |

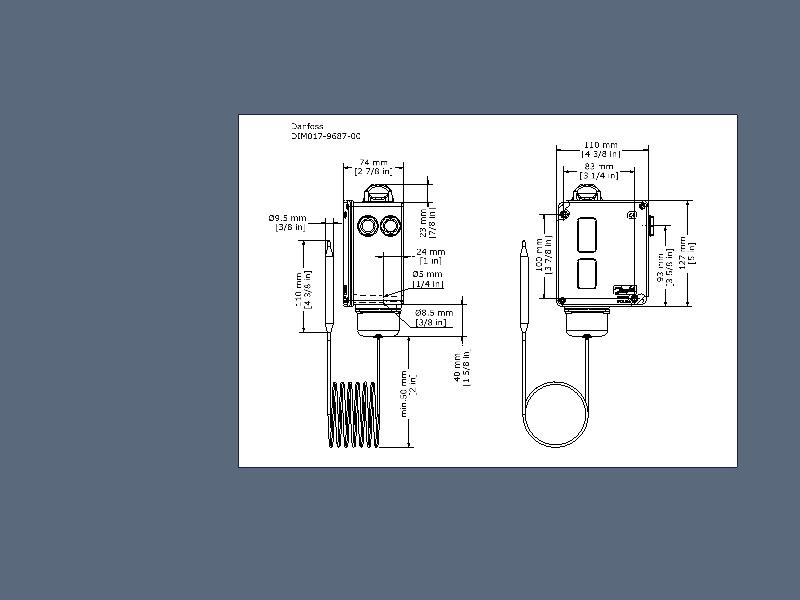

| Sensor pocket length min. [in] | 4 13/32 in |
| Sensor pocket length min. [mm] | 112 mm |
| Sensor size (Ø x L) [in] | 3/8 x 4 1/4 in |
| Sensor size (Ø x L) [mm] | 9.5 x 110 mm |
| Sensor type | Remote bulb |
| Serviceable | Contact systems |
| Temperature range [°C] [Max] | 30 °C |
| Temperature range [°C] [Min] | -5 °C |
| Temperature range [°F] [Max] | 86 °F |
| Temperature range [°F] [Min] | 23 °F |
| Proposition 65 | WARNING: Cancer and Reproductive Harmwww.p65warnings.ca.gov |
| Visuals | Document Category |
| Temperature range [°F] | 23 - 86, Reset function: Auto, Contact function: SPDT, Sensor type: Remote bulb, Enclosure rating IP: IP66 |
| Used for product | RT; KP; AVTA, Parts included: 1x gasket, Packing format: Multi pack, Quantity per packing format: 5 |
| Type designation | Hand knob, Used for product: RT, Packing format: Multi pack, Quantity per packing format: 10 |
| Product type | SPARE PART, Used for product: RT, Type designation: SPDT switch, SPDT switch |
